Description

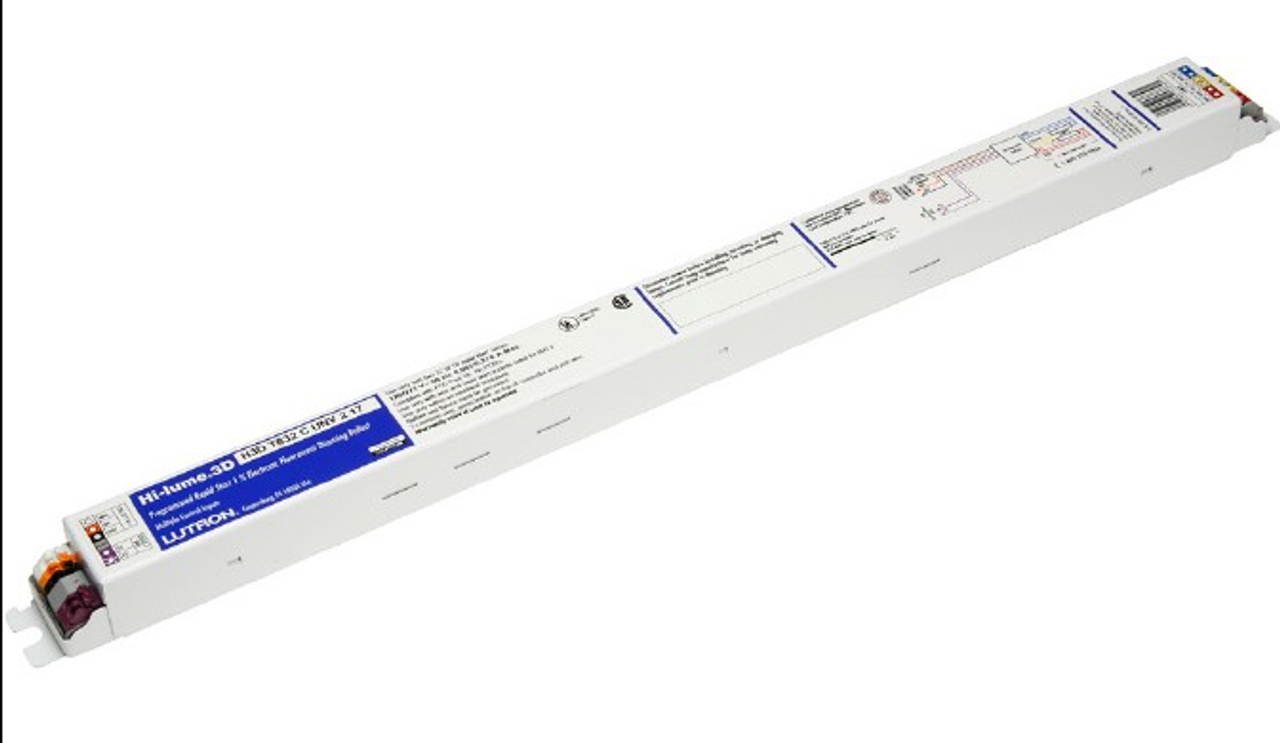

The Lutron H3DT832CU210 is a high-performance dimming ballast from the Hi-Lume 3D series, designed to power two 32-watt T8 fluorescent lamps. It offers continuous, flicker-free dimming from 100% down to 0.7% and supports multiple dimming protocols, including 3-wire and EcoSystem. Engineered for ultra-quiet operation, this ballast ensures long lamp life with its programmed rapid start design.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
H3DT832CU210 |
| Subcategory |
Dimming Ballasts |
| Series |
Hi-Lume 3D |
| Dimming Type |
3-Wire, EcoSystem |
| Dimming Range |
0.7% – 100% |
| Input Voltage |
120/240/277V AC |
| Start Method |
Programmed Rapid Start |
| Number of Lamps |
2 |
| Lamp Type |
32W T8 Fluorescent |
| System Compatibility |
EcoSystem, Quantum, GRAFIK Eye QS, PowPak |
| Certifications |
UL Listed, CSA, Class P |
| Operating Temperature |
Minimum 50°F (10°C) |
| Mounting Type |
Fixture-mount |
| Dimensions (L x W x H) |
18" x 1.18" x 1.0" |
| Application |
Commercial, Office, Education |
| UPC |
027557775335 |
| Weight |
1.5 lbs |
Information About H3DT832CU210
The H3DT832CU210 is part of the Lutron Hi-Lume 3D dimming ballast family, known for precise and smooth lighting control in commercial and institutional environments. It is compatible with EcoSystem digital bus, GRAFIK Eye® QS, PowPak, and Quantum® systems, offering versatile integration for advanced lighting management. This model supports standard 3-wire line-voltage phase control and EcoSystem protocols for flexible dimming control. Built to operate with two 32W T8 lamps, it includes protections for full-rated lamp life and stable operation in temperature-sensitive installations.
Key Features:
- Wide Dimming Range: Smooth dimming from 100% down to 0.7% for precise lighting control.
- Dual Protocol Support: Compatible with both 3-wire phase control and EcoSystem digital control.
- Two-Lamp Operation: Designed to operate (2) 32W T8 fluorescent lamps efficiently.
- Programmed Rapid Start: Ensures full lamp life during dimming and frequent cycling.
- System Integration: Works with GRAFIK Eye QS, Quantum, and PowPak for advanced control.
- Universal Voltage: Operates at 120V, 240V, or 277V input for global compatibility.
- Ultra-Quiet Performance: Engineered for silent operation in noise-sensitive environments.
- Certified for Safety: UL Listed, CSA approved, and Class P certified.
The H3DT832CU210 delivers the reliability and precision required for high-end commercial dimming applications using T8 fluorescent lighting.
