Description

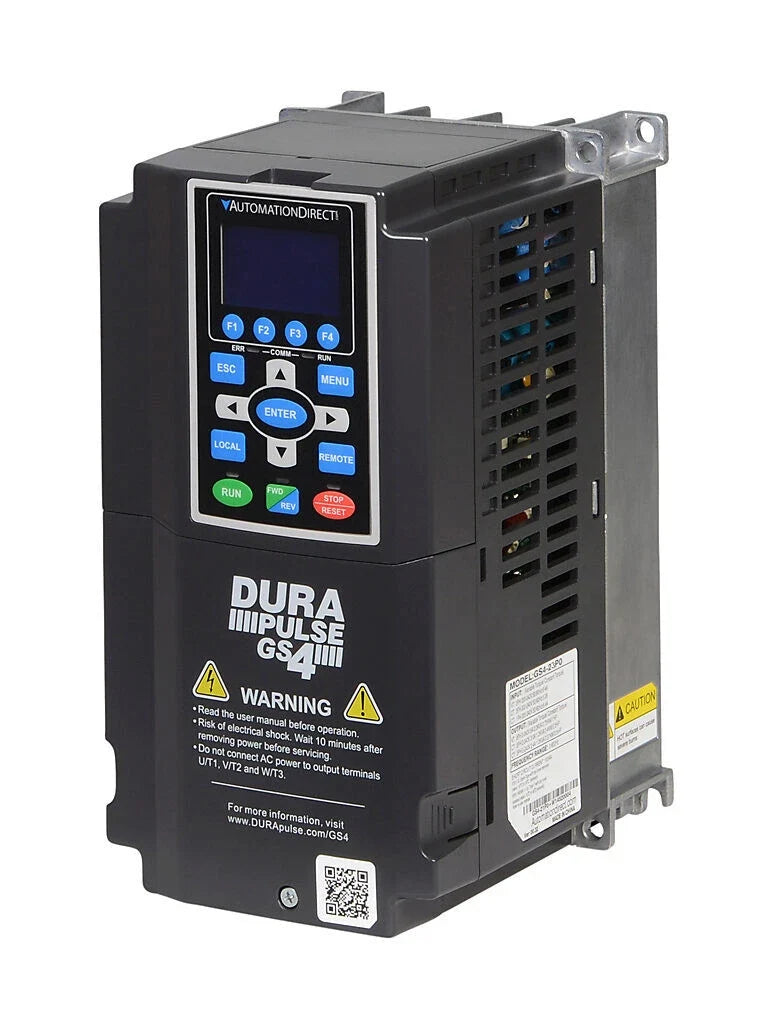

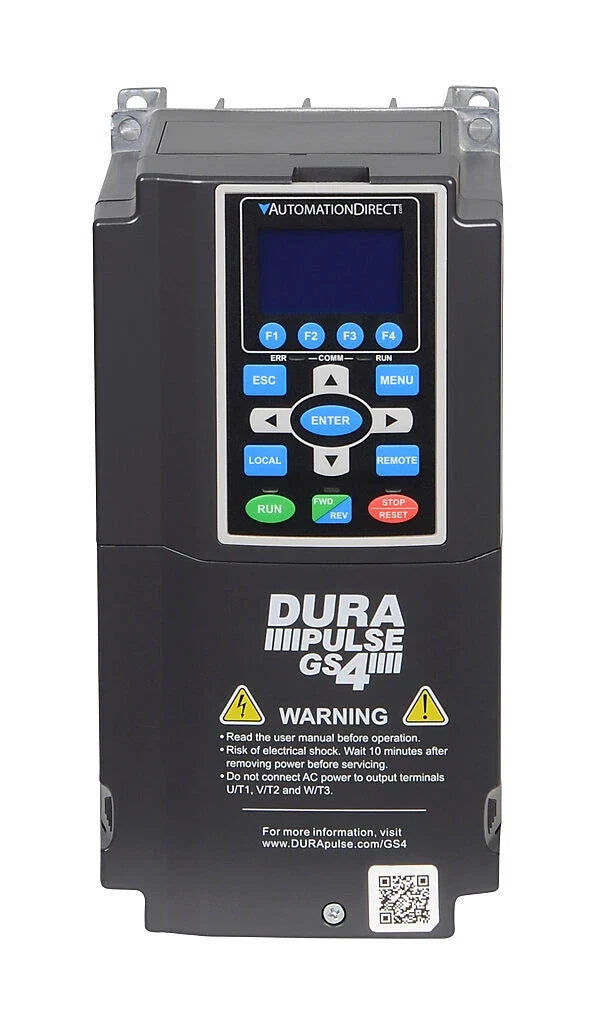

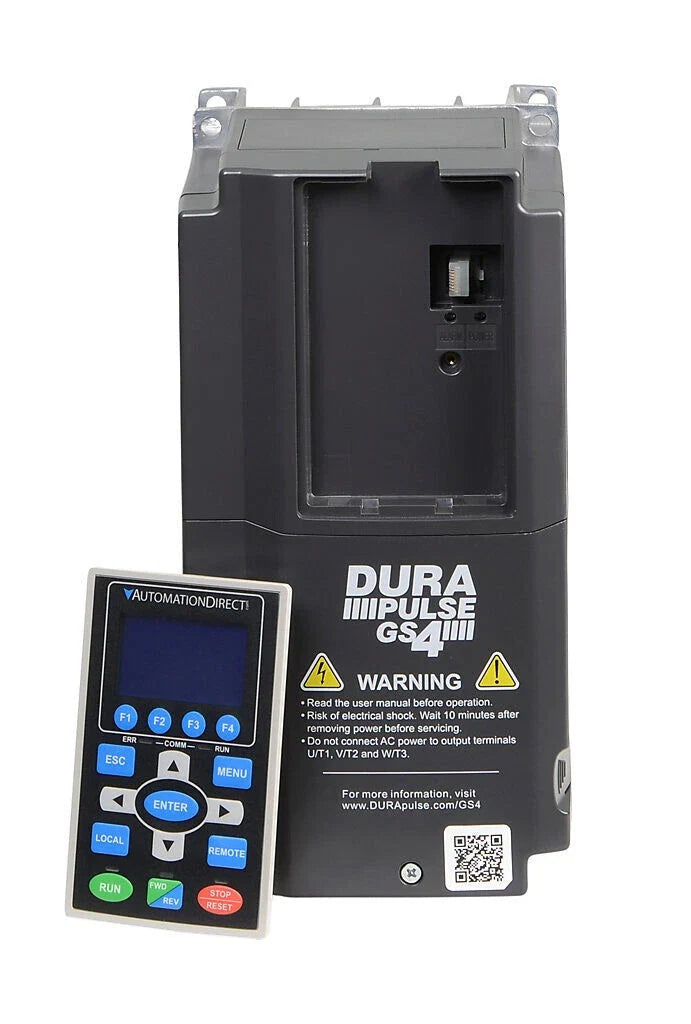

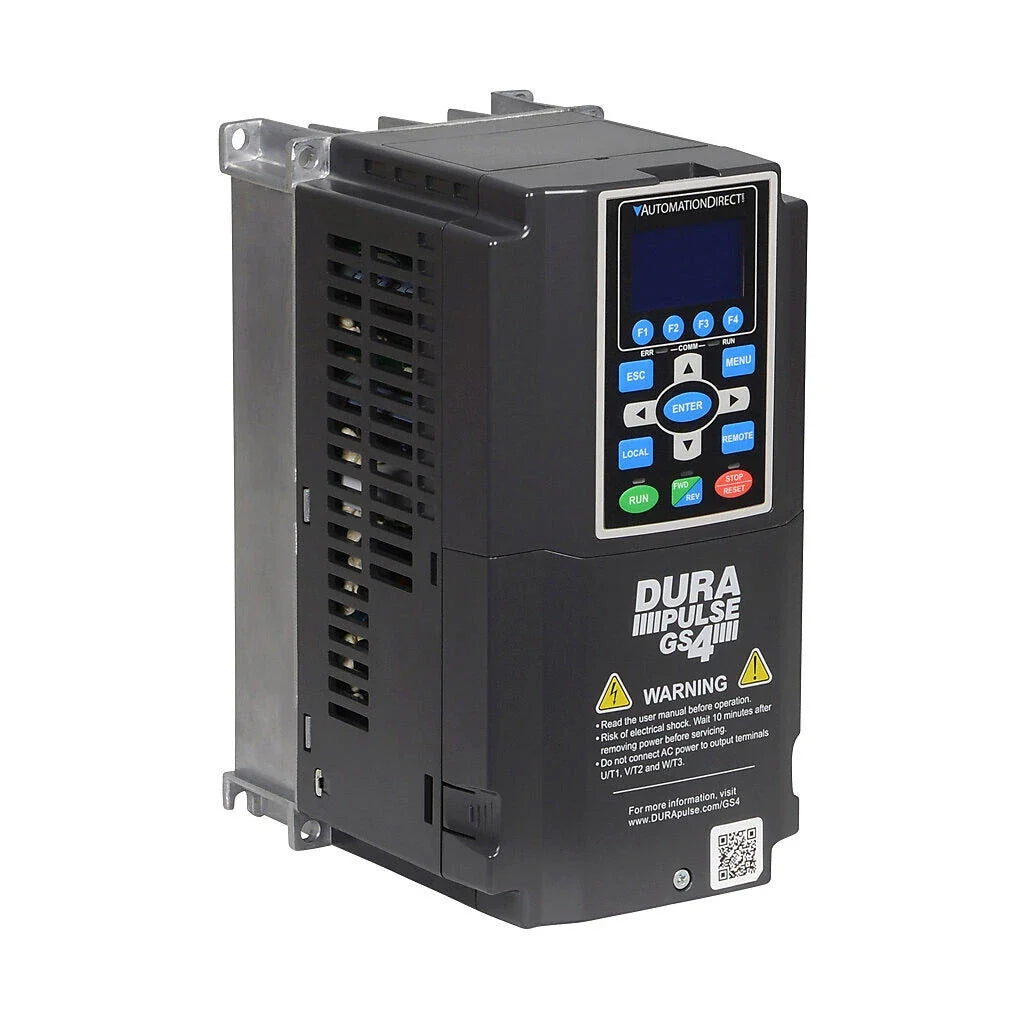

The Automation Direct GS4-23P0 is a high-performance AC variable frequency drive from the DURApulse GS4 series designed for controlling three-phase induction motors. It operates on a nominal 230 VAC input and supports both single-phase and three-phase power configurations. The drive offers advanced motor control using SVC or V/Hz modes and includes integrated dynamic braking for improved motion control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS4-23P0 |
| Subcategory |
Variable Frequency Drive |
| Series |
DURApulse GS4 |
| Drive Type |
AC Variable Frequency Drive |
| Nominal Input Voltage |
230 VAC |
| Output Voltage |
230 VAC |
| Input Phases |
Single-Phase or Three-Phase |
| Output Phases |
Three-Phase |
| Horsepower Rating |
3 HP (3-Phase Input), 1 HP (1-Phase Input) |
| Current Rating |
10 A (3-Phase Input), 5 A (1-Phase Input) |
| Control Modes |
SVC or V/Hz |
| Output Frequency Range |
0.1 – 599 Hz |
| Carrier Frequency Range |
2 – 15 kHz |
| Communication Interface |
RS-485 (RJ12) |
| Communication Protocols |
Modbus RTU, Modbus ASCII, BACnet |
| Operating Temperature |
-10°C to 50°C |
| Enclosure Rating |
NEMA 1 |
| IP Rating |
IP20 |
| Mounting Type |
Panel or Wall Mount |
| Weight |
4.50 lbs |
Information About GS4-23P0
The GS4-23P0 is part of the DURApulse GS4 variable frequency drive series used in industrial motor control and automation applications. It supports both single-phase and three-phase input power while delivering three-phase output to connected motors. The drive incorporates advanced communication capabilities including Modbus RTU, Modbus ASCII, and BACnet through an RS-485 interface. Designed for flexible installation, it features panel or wall mounting, integrated safe torque off (STO) safety functionality, and multiple analog and digital I/O channels for system integration.
Key Features:
-
High-Performance AC Drive: Designed for precise speed control of three-phase induction motors.
-
Dual Input Power Capability: Supports both single-phase and three-phase 230 VAC input.
-
3 HP Output Rating: Delivers up to 3 horsepower with three-phase input.
-
SVC and V/Hz Control Modes: Provides flexible motor control options.
-
Integrated Dynamic Braking: Improves deceleration and motor stopping performance.
-
Safe Torque Off (STO): Integrated safety function for motor shutdown.
-
RS-485 Communication Interface: Supports Modbus RTU, Modbus ASCII, and BACnet protocols.
-

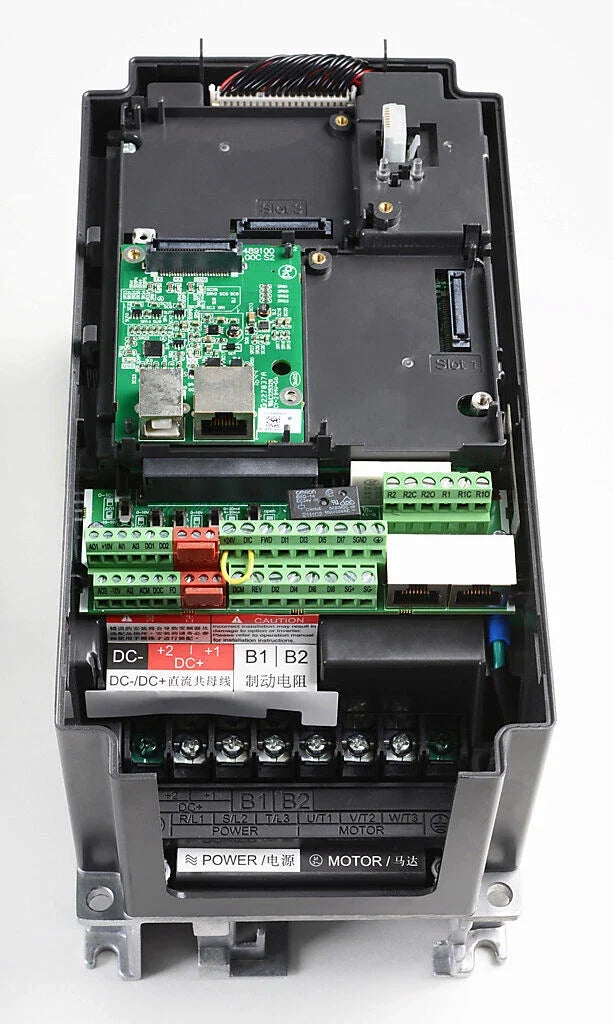

Multiple I/O Channels: Includes analog and discrete inputs and outputs for automation integration.
The GS4-23P0 delivers the reliability and precision required for variable frequency motor control in industrial automation systems.
