Description

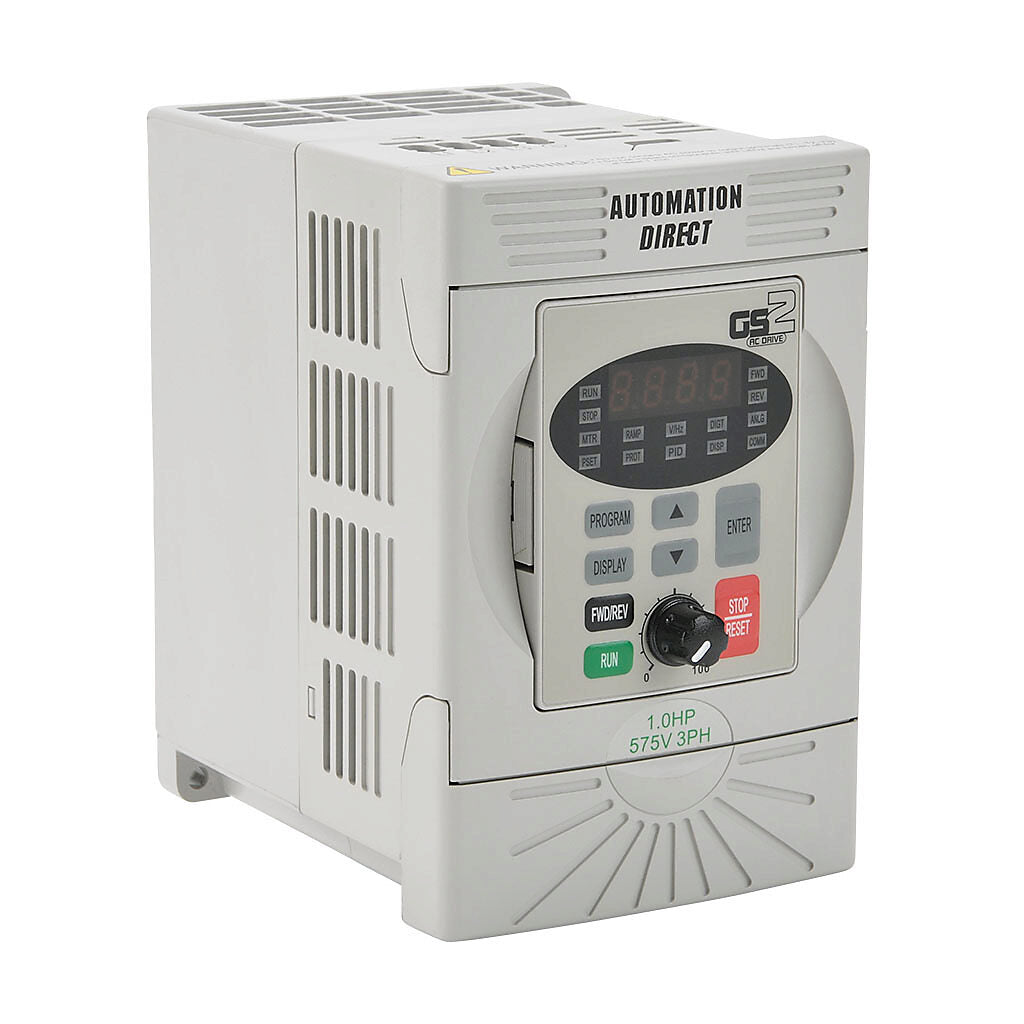

The Automation Direct GS2-51P0 is a GS2 series AC micro drive rated for 1 horsepower operation at 575 VAC with three-phase input power. It operates in V/Hz control mode and includes integrated dynamic braking for controlled motor deceleration. This enclosed A-frame drive is engineered for precise speed control of industrial three-phase motors in high-voltage applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS2-51P0 |
| Subcategory |
AC Variable Frequency Drives |
| Series |
GS2 |
| Drive Type |
AC Micro Drive |
| Rated Power |
1 HP |
| Input Voltage |
575 VAC |
| Input Phase |
3-Phase |
| Control Mode |
V/Hz |
| Frame Size |
A Frame |
| Communication Ports |
RS-232, RS-485 |
| Communication Protocol |
Modbus |
| Dynamic Braking |
Integrated |
| Short Circuit Current Rating (SCCR) |
5kA |
| Enclosure Type |
Enclosed |
| Application |
Industrial Motor Speed Control |
| Weight |
3.8 lb |
Information About GS2-51P0
The GS2-51P0 belongs to the Automation Direct GS2 family of compact variable frequency drives designed for general-purpose industrial motor control. It is built for 575 VAC three-phase input systems and provides V/Hz control to maintain stable torque across varying speeds. The drive includes RS-232 and RS-485 communication interfaces with Modbus protocol support for integration into PLC and supervisory networks. With a 5kA short-circuit current rating and enclosed A-frame construction, it is intended for panel-mounted installations in demanding industrial environments.
Key Features:
- 1 HP Output Rating: Designed to control 1 horsepower three-phase AC motors.
- 575 VAC Three-Phase Input: Compatible with high-voltage industrial power systems.
- V/Hz Control Mode: Provides stable and consistent motor speed regulation.
- Integrated Dynamic Braking: Enables controlled stopping without additional braking hardware.
- RS-232 / RS-485 Communication: Supports drive configuration and monitoring.
- Modbus Protocol Support: Allows integration into PLC-based automation systems.
- 5kA SCCR Rating: Suitable for compliant control panel applications.
- Enclosed A-Frame Design: Built for protected installation within industrial cabinets.
The GS2-51P0 delivers the reliability and precision required for high-voltage industrial motor speed control applications.
