Description

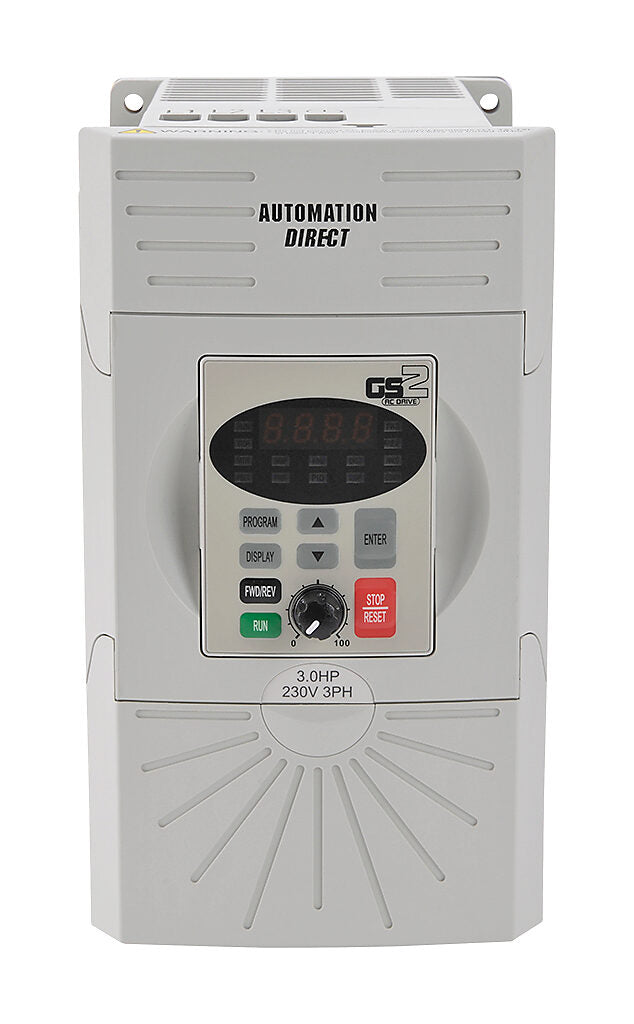

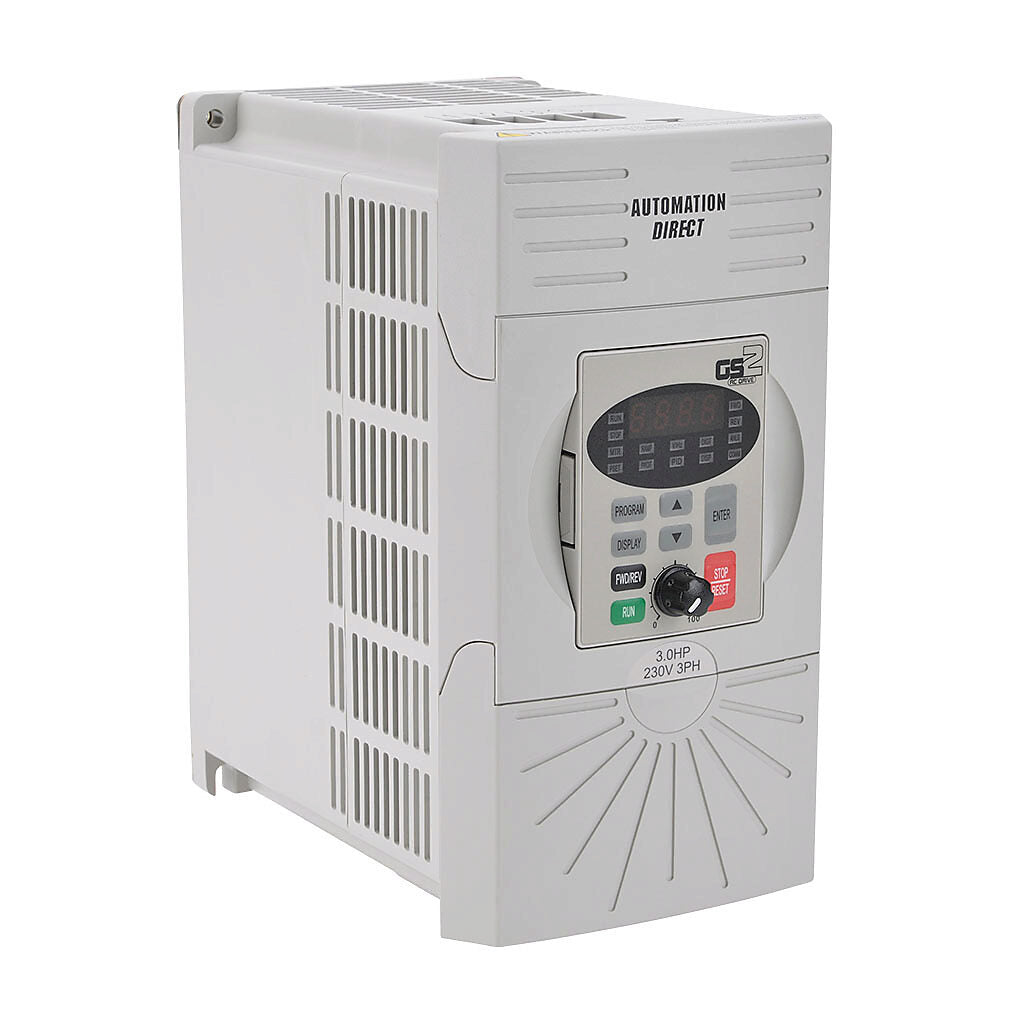

The Automation Direct GS2-23P0 is a GS2 Series AC micro drive designed to control three-phase induction motors up to 3 HP. It operates on a 200–240 VAC supply and provides adjustable frequency output for variable speed motor applications. This drive is intended for industrial automation systems requiring compact motor speed control and integrated communication capability.

Technical Specifications

Information About GS2-23P0

The GS2-23P0 is part of the Automation Direct GS2 Series of variable frequency drives (VFDs), developed for general-purpose motor control applications. It supports three-phase motor output and utilizes V/Hz control for stable speed regulation across a wide operating range. The unit includes integrated RS-232/RS-485 Modbus communication interfaces for connection to PLCs and supervisory control systems. Designed in a compact enclosed frame, it incorporates dynamic braking functionality to improve motor deceleration performance.

Key Features:

• 3 HP Motor Rating: Supports three-phase motors up to 3 horsepower (2.2 kW).

• 200–240 VAC Input: Operates on single-phase or three-phase 50/60 Hz supply.

• V/Hz Control Mode: Provides stable and adjustable motor speed control.

• Integrated Modbus Communication: Built-in RS-232/RS-485 ports for system integration.

• Dynamic Braking Capability: Improves controlled stopping performance.

• Compact Enclosed Frame: Designed for panel installation in industrial cabinets.

• Three-Phase Output: Delivers variable frequency output matched to input voltage.

The GS2-23P0 delivers the reliability and precision required for variable speed motor control in industrial drive applications.
