Overview

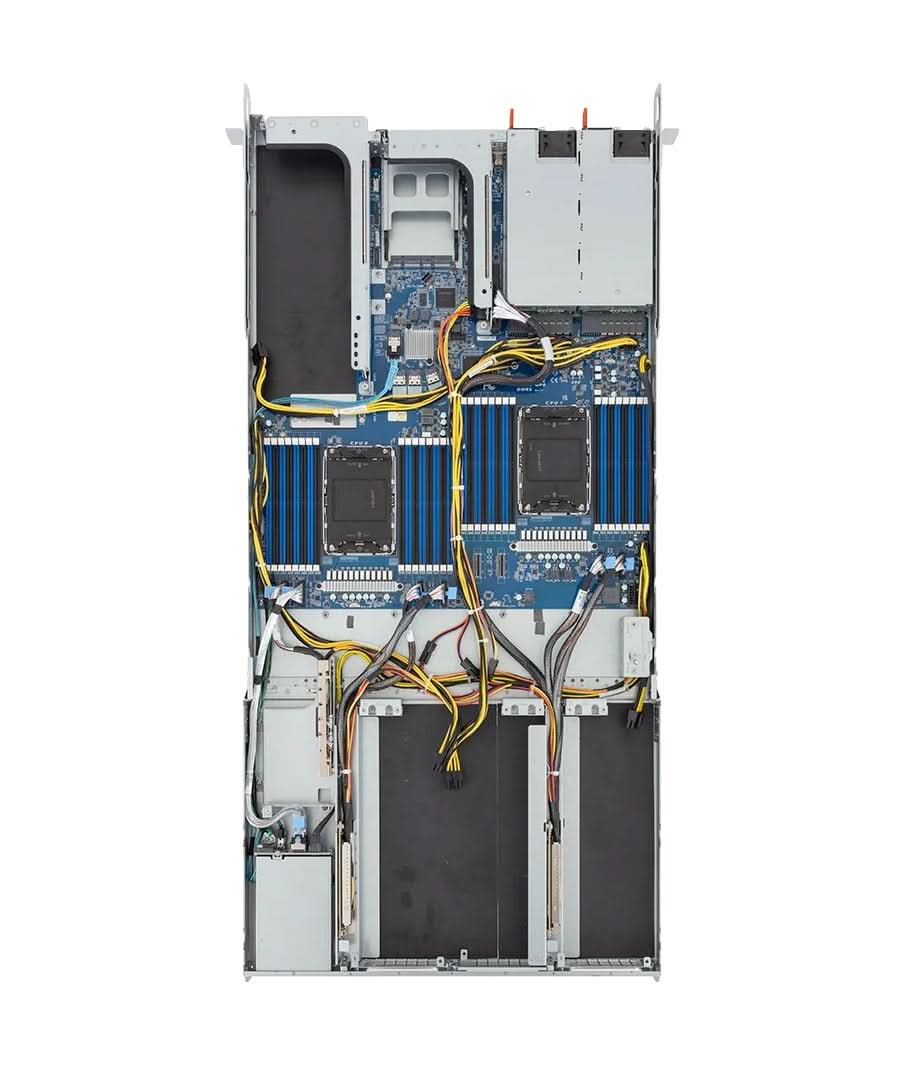

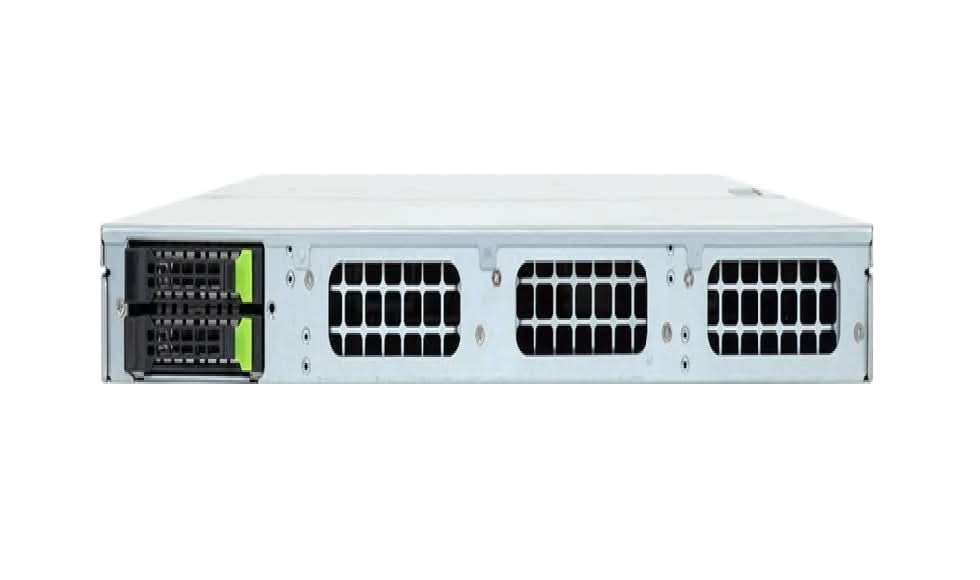

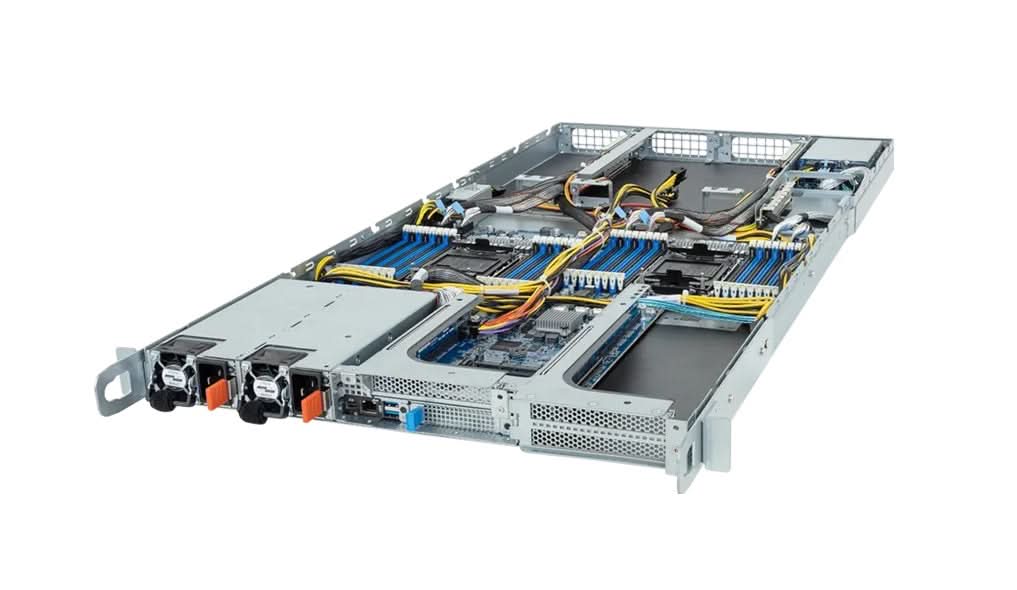

The Gigabyte R183-SF2-IAL1 is a 1U, dual-socket server designed specifically for single-phase immersion cooling. It is optimized for high-performance computing and artificial intelligence workloads that benefit from the superior thermal management of immersion technology. The server supports Intel's latest processors and up to four high-speed PCIe Gen5 GPUs
Specifications
Model Number: R183-SF2-IAL1
Brand: Gigabyte
Alt Part Number(s): R183-SF2-IAL1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: R183-SF2-IAL1
Processor Type: 4th,5th Generation Intel Xeon Scalable
4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
Processor Power: Up to 350W
Processor Socket: 2 x LGA 4677 Socket E
Chipset Type: Intel C741
Motherboard: MSB3-PE0
USB Type: 2 x USB 3.2 Gen1 ports (Type-A)
Number of Channels: 8-Channel
Graphics Controller: Aspeed AST2600
GPU Supported: 4 x dual-slot Gen5 GPUs
Memory Supported: Up to4TB
Memory Technology: DDR5
Memory Slots: 32 x DIMM
Expansion Slots: 16
Power Supply: Dual 2700W 80Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 1U Rackmount/GPU Server
*
