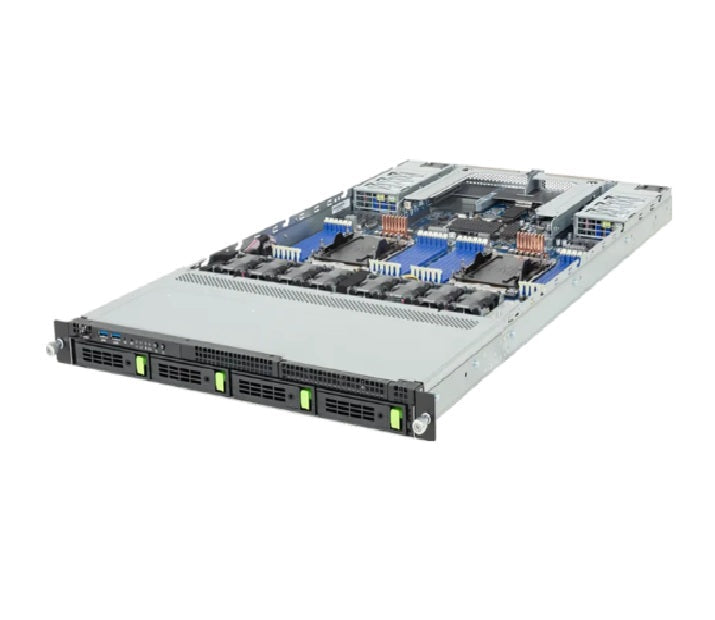

The R184-A90-AAJ1 is a high-performance 1U rackmount server manufactured by Gigabyte. It is specifically designed for compute-intensive workloads such as AI, hybrid cloud, and data center applications, featuring support for the Intel® Xeon® 6900-series processors.
Specifications
Model Number: R184-A90-AAJ1
Brand: Gigabyte
Alt Part Number(s): R184-A90-AAJ1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: R184-A90-AAJ1
Processor Type: Dual Intel Xeon 6900-Series Processors
Processor Core: 256 Core/512 Thread
Processor Power: TDP up to 500W
Processor Socket: 2 x LGA 7529 Socket BR
Motherboard: MA94-FS0
Chipset: AMD B650E
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 2 x 1Gb/s LAN ports via Intel I350-AM2
Number of Drive Bays: 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Expansion Slots: 2 x FHHL PCIe Gen5 x16 slots, 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Memory Supported: 3TB
Memory Size: RDIMM: 32GB, 3DS RDIMM: 64GB, MRDIMM: 128GB
Memory Technology: DDR5 ECC
Memory Speed: RDIMM: Up to 6400 MT/s, MRDIMM: Up to 8800 MT/s
Memory Slots: 24 x DIMM slots
Memory Channels: 12-channels
Power Supply: Dual 2000W 80 PLUS Titanium
System Cooling: 8 x 40x40x56mm
Form Factor: 1U Rackmount
