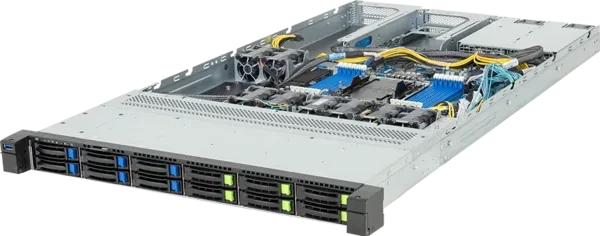

Gigabyte R164-AG2-AAJ1 is a high-performance 1U server designed for demanding workloads. It supports a single Intel Xeon 6900-Series processor with up to 500W TDP, 12 x DDR5 DIMM slots for up to 6400 MT/s memory speeds, and 12-channel memory architecture. Featuring 6x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays, redundant 2000W 80 PLUS Titanium power supplies, and a variety of PCIe Gen5 x16 slots, it ensures optimal performance with integrated ASPEED AST2600 video and robust security options like TPM 2.0.



Specifications

Model Number:  R164-AG2-AAJ1

Brand:  Gigabyte

Alt Part Number(s):  R164-AG2-AAJ1

Product Type: Server



Technical Description

Brand: Gigabyte

Model:  R164-AG2-AAJ1

Form Factor: 1U

Dimensions: 438 x 43.5 x 815 mm

Motherboard: MAG4-GU0

Processor: Intel® Xeon® 6900-Series (Single Processor, LGA 7529)

TDP: Up to 500W

Socket: 1 x LGA 7529 (Socket BR)

Chipset: System on Chip (SoC)

Memory: 12 x DIMM slots; DDR5 RDIMM/MRDIMM; 12-channel memory per processor; RDIMM up to 6400 MT/s; MRDIMM up to 8800 MT/s

LAN: 1 x 10/100/1000 Mbps Management LAN (Rear)

Video: Integrated ASPEED® AST2600; 1 x Mini-DP

Storage: 6 x 2.5" Gen5 NVMe/SATA/SAS-4; 6 x 2.5" SATA/SAS-4 (Front hot-swap); 1 x M.2 (2280/22110), PCIe Gen5 x2 (Internal); 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA (Internal)

PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16) for GPUs; 1 x FHFL x16 (Gen5 x16); 1 x FHHL x16 (Gen5 x16); 1 x OCP NIC 3.0 (Gen5 x16)

Front I/O: 1 x USB 3.2 Gen1 port (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x Reset button; 2 x LAN activity LEDs (disabled); 1 x Storage activity LED; 1 x System status LED

Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 1 x MLAN port; 1 x ID LED

Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM012; 1 x PRoT connector (only enabled on RoT SKU)

Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input: 100-127V~ / 12A, 50/60Hz; 200-240V~ / 10A, 50/60Hz

DC Input: 240Vdc / 10A (only for China)

DC Output: Max 1000W/100-127V~: +12.2V/82A, +12Vsb/3A; Max 1800W/200-207V~: +12.2V/147.5A, +12Vsb/3A; Max 2000W/220-240V~ or 240Vdc Input: +12.2V/164A, +12Vsb/3A

System Fans: 8 x 40x40x56mm

Operating Temperature: 10°C to 30°C

Operating Humidity: 8% to 80% (non-condensing)

Non-Operating Temperature: -40°C to 60°C

Non-Operating Humidity: 20% to 95% (non-condensing)
