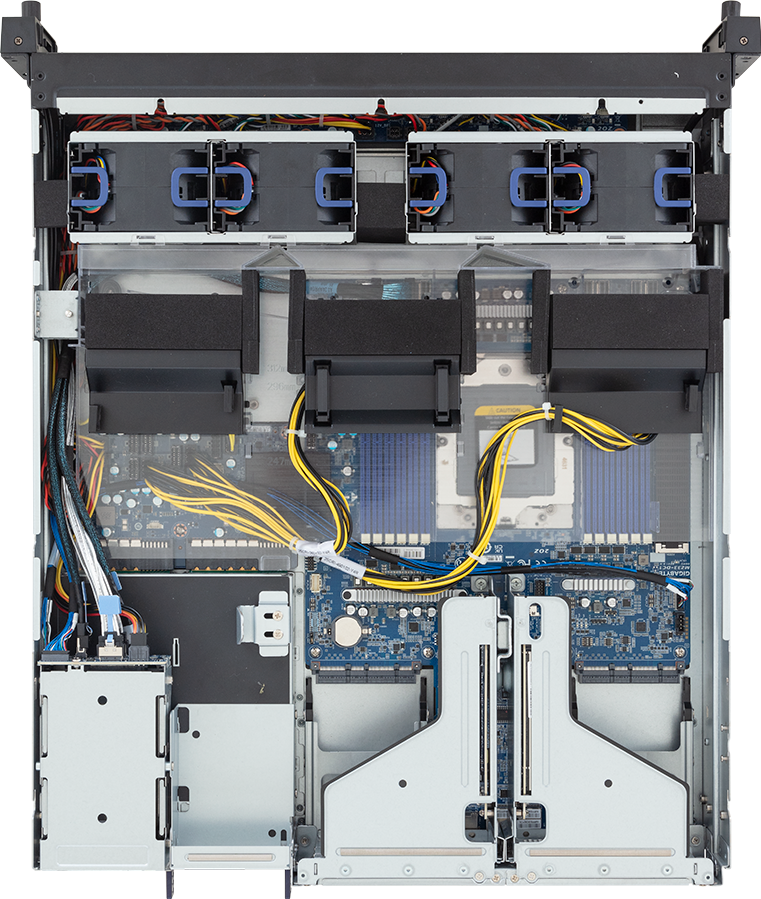

Gigabyte E263-Z34-AAJ1 is a 2U rackmount server supporting a single AMD EPYC 9004/9005 series processor with up to 400W cTDP. It features 12 DDR5 memory slots, PCIe Gen5 x16 for GPU support, dual 2000W redundant power supplies, and hot-swap NVMe/SATA/SAS storage with remote management via ASPEED AST2600 BMC.
Specifications
Model Number: E263-Z34-AAJ1
Brand: Gigabyte
Alt Part Number(s): E263-Z34-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model:E263-Z34-AAJ1
Form Factor: 2U rackmount
Motherboard: MZ33-DC1
CPU Support: AMD EPYC 9004 / 9005 series
Processor Count: Single socket (1 CPU)
Max CPU Power (cTDP): Up to 400W (500W at 25°C)
Socket Type: SP5 (LGA 6096)
Memory Slots: 12 DIMM slots
Memory Type: DDR5 (RDIMM)
Max Memory Speed: Up to 6400 MT/s (EPYC 9005)
Memory Channels: 12-channel architecture
Storage (Front/Rear): 2 × 2.5" hot-swap NVMe/SATA/SAS-4
Expansion Slots: PCIe Gen5 x16 (GPU support)
Networking: 1 × 1GbE + management LAN (Intel I210-AT)
Power Supply: Dual redundant 2000W (80 PLUS Titanium)
System Management: ASPEED AST2600 BMC with remote management features
*
