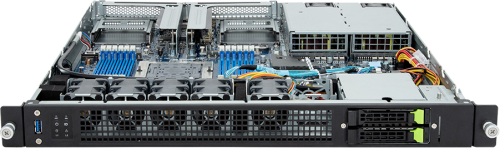

Gigabyte SV E163-Z34-ACH1 is a compact 1U rackmount server designed for high-performance computing. It supports a single AMD EPYC 9004/9005 series processor, with a cTDP of up to 400W and 12-channel DDR5 memory (up to 3TB, speeds up to 6000 MT/s). The server includes 2x 2.5" Gen5 NVMe hot-swap bays, 2x PCIe Gen5 x16 expansion slots, and redundant 1300W power supplies with 80 PLUS Titanium certification.



Specifications

Model Number:E163-Z34-ACH1

Brand:  Gigabyte

Alt Part Number(s): E163-Z34-ACH1

Product Type: Server



Technical Description

Brand: Gigabyte

Model: E163-Z34-ACH1

Form Factor: 1U rack-mount chassis

Processor: Single AMD EPYC 9004/9005 Series processor, supporting CPU cTDP up to 400W (up to 500W at 25°C ambient)

Memory: 12 DDR5 DIMM sockets with 12-channel memory architecture, supporting up to 1.5TB or 3TB DDR5 ECC Registered memory depending on configuration; memory speeds up to 6000 MT/s for EPYC 9005 series

Storage: 2x 2.5" Gen5 NVMe hot-swap drive bays at the front, plus 1x internal M.2 slot (PCIe Gen3 x4)

Expansion Slots: 2x PCIe 5.0 x16 slots (FHHL), plus 2x OCP 3.0 PCIe Gen5 x16 slots

Networking: 1x 1GbE LAN port (Intel I210-AT), 1x 10/100/1000 management LAN port

Power Supply: 1+1 redundant 1300W power supplies, 80 PLUS Titanium certified

Cooling: Multiple high-speed fans (e.g., 2x 40x40x28mm at 25,000rpm and 4x 40x40x56mm at 38,000rpm)
