IS215UCVEM09: The Enhanced M-Series Mark VI Controller

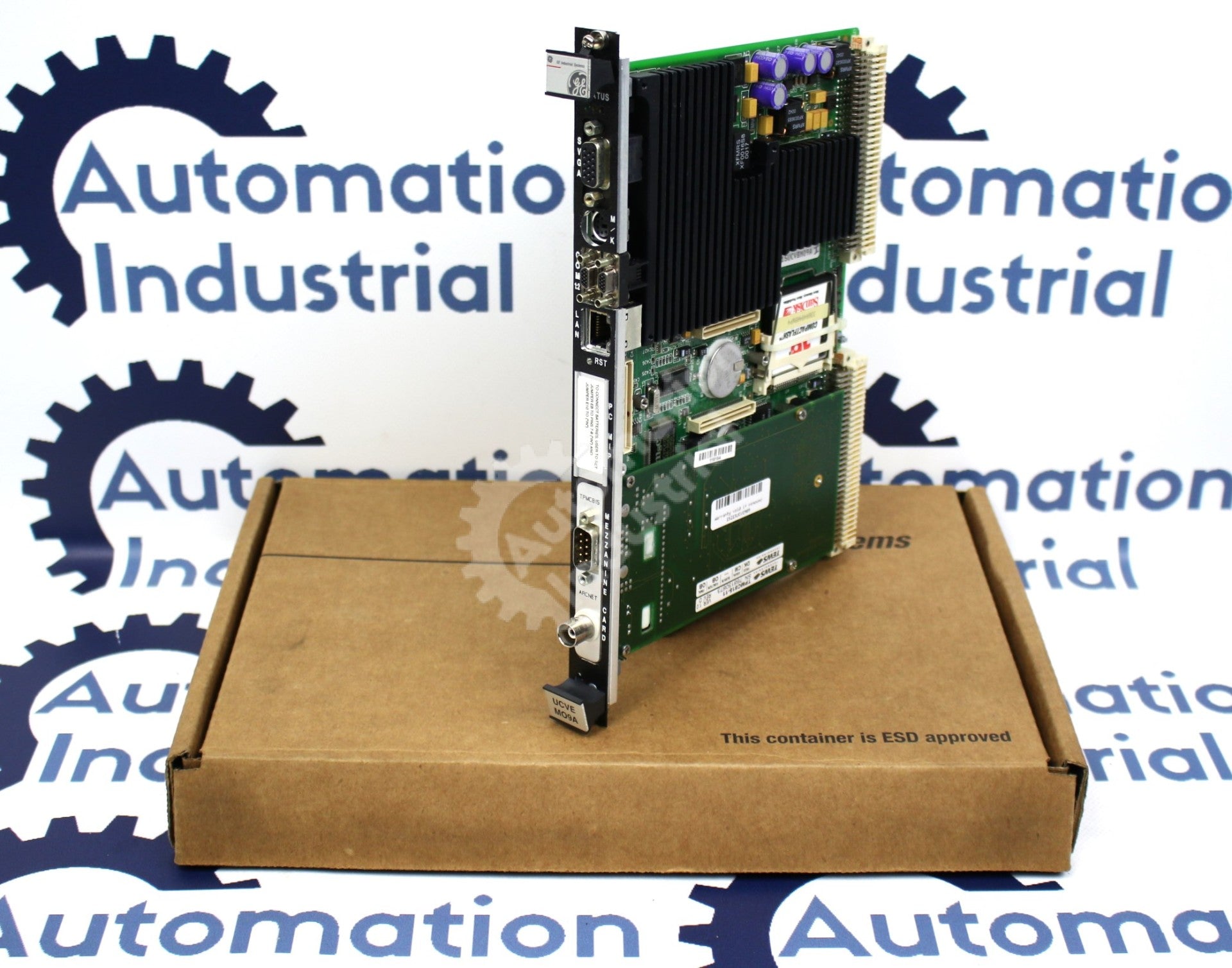

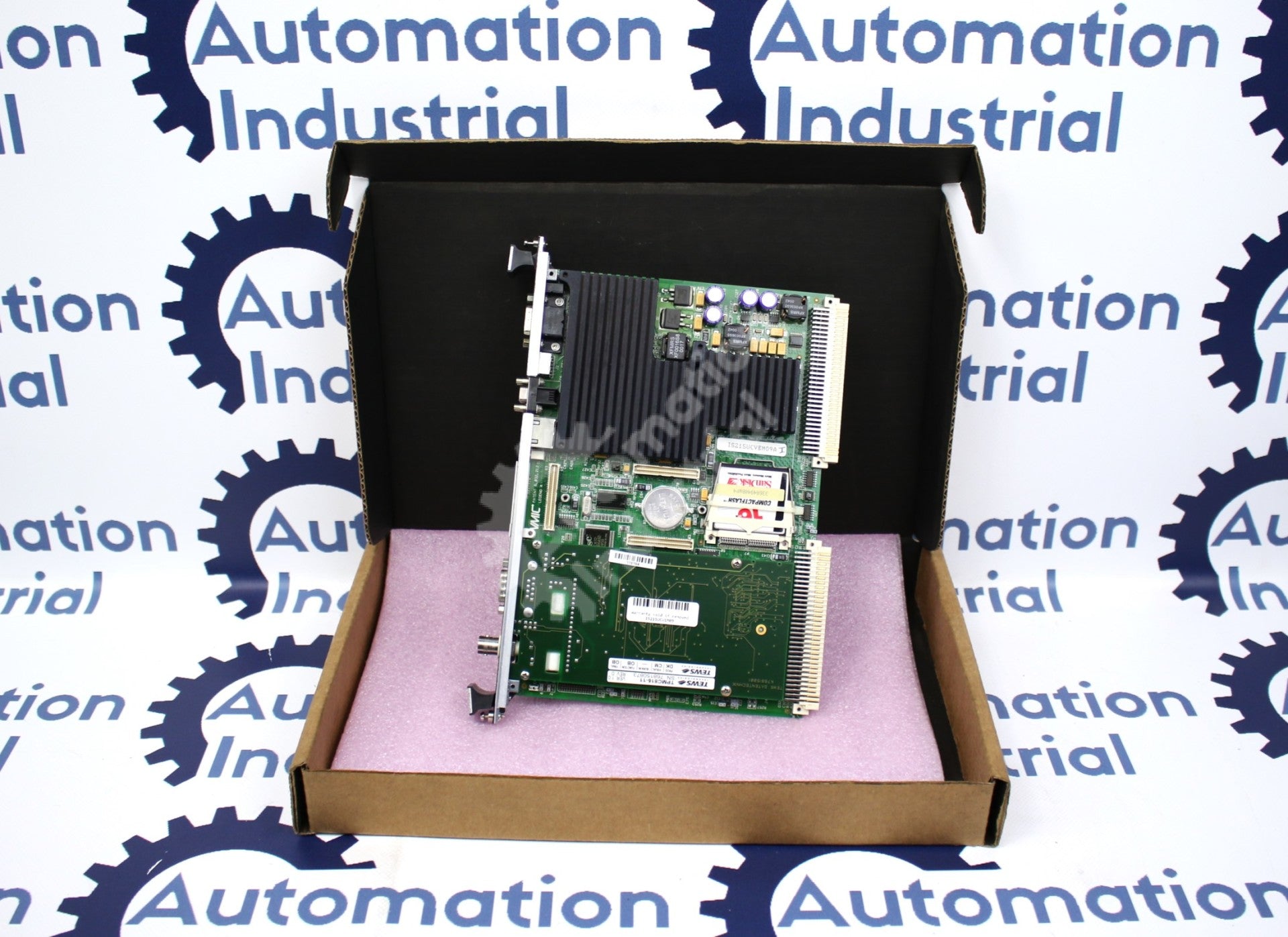

The IS215UCVEM09 belongs to the M-series of GE's UCVE Mark VI controller — the variants that add extra Ethernet ports and Profibus support to the base UCVEH2 processor. It performs the same core job as the standard controller, executing the turbine application under QNX in the VME rack, and this listing is a used, tested UCVEM09 at the M09A revision.

How the M-Series Differs from UCVEH2

The base UCVEH2 is a single-slot controller with one Ethernet port to the Unit Data Highway. The M-series UCVEM modules carry all of the UCVEH2's capability and add support for additional Ethernet ports and Profibus; several M variants provide a secondary 10BaseT/100BaseTX Ethernet port that can be placed on a separate IP subnet and configured through the toolbox, carrying EGD and Ethernet Modbus traffic to third-party DCS or PLC equipment. That difference matters when replacing a board: an M-series controller and an H-series controller are not interchangeable if your application depends on those extra ports or on Profibus.

Simplex, TMR and the Voting Path

Whatever the variant, the UCVE runs in simplex or triple-modular-redundant systems. In simplex it exchanges process inputs and outputs through the I/O boards; in TMR the <R>, <S> and <T> controllers work on voted inputs, hand computed outputs to the output hardware for voting, and share internal state among the three. All of this external data transfer crosses the VME backplane through the VCMI communication board, which also provides the clock the controller synchronizes to.

Is the Controller Really at Fault?

Because the M-series controller touches so many communication paths, it draws blame for problems that are not its own. Before replacing an IS215UCVEM09, confirm:

• Configuration and firmware. The controller validates its toolbox configuration against the hardware at power-up; a mismatched or partial ControlST download, or corrupt boot media, will fault a good board.
• Secondary-network configuration. On M-series boards, a missing or wrong secondary-Ethernet or Profibus setup can look like a controller fault when it is really a configuration gap. Re-check the toolbox settings against the hardware.
• VCMI and backplane. The UCVE reaches the I/O only through the VCMI over the VME bus; a VCMI, backplane or seating fault imitates a controller failure.
• Rack power. A weak +5 V rail resets the processor.
• Upstream I/O and core isolation. A failing I/O board can report upstream, and in TMR you should confirm which core is affected before ordering.

Cross-Generation and Related Boards

UCVE is one of the UCVx controller generations (UCVB, UCVD, UCVE, UCVG); match the generation as well as the variant and revision. The VCMI communication board is the controller's constant partner. For platform background, read Mark V vs Mark VI: DS200 to IS200, decode any number with the GE Speedtronic Part Number Decoder, and browse the GE Mark VI IS200 Boards collection.

What to Include in Your IS215UCVEM09 Quote

To match the correct board, send the full part number and suffix (IS215UCVEM09 / M09A), the revision, a photo of the label, the turbine model and Mark VI generation, simplex or TMR, the ControlST or firmware version if known, whether you use the secondary Ethernet or Profibus features, the quantity, and your urgency. The reference manual is GEH-6421.
