IS215UCCAM03: The Mark VI CompactPCI Controller Module

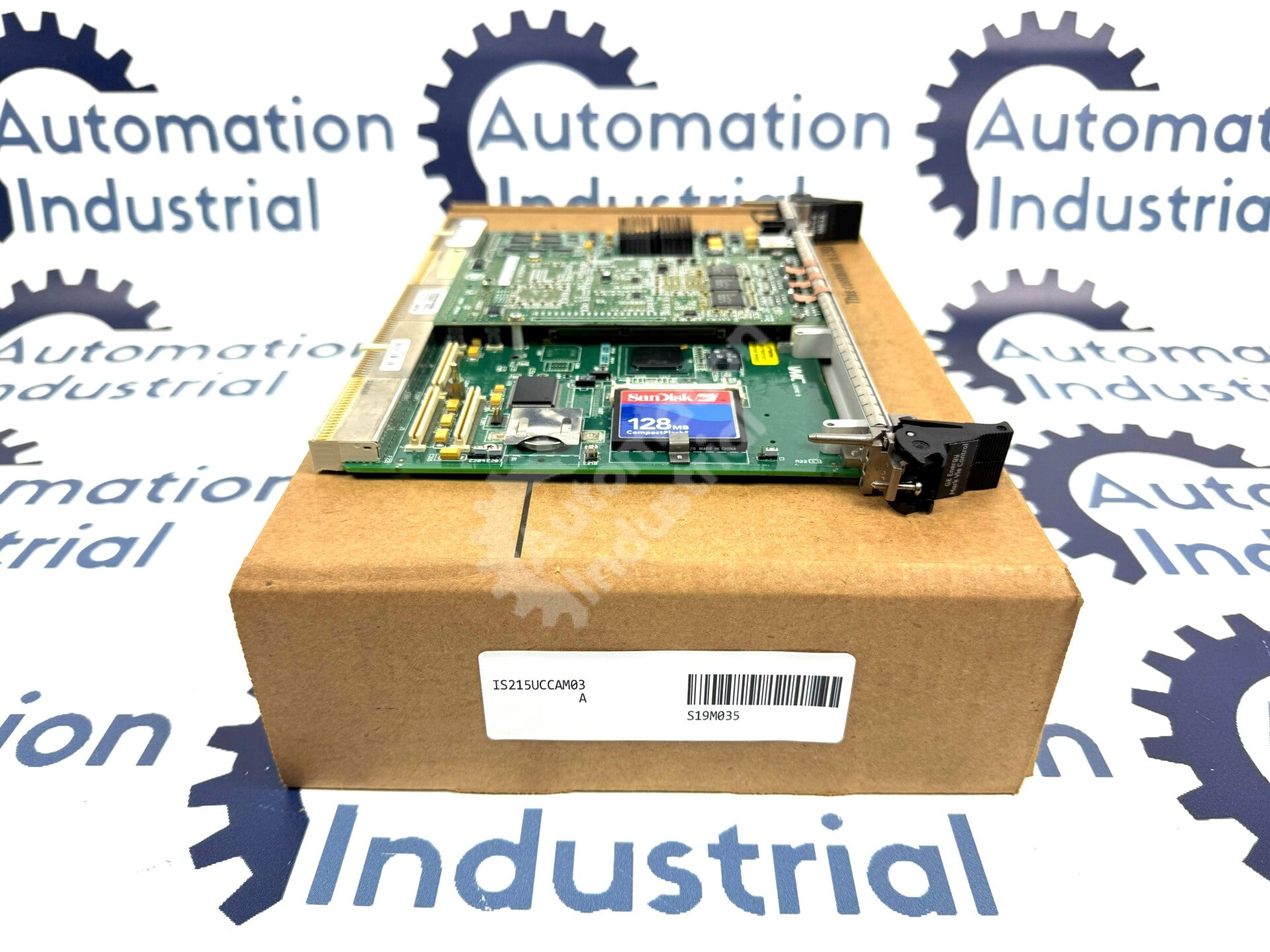

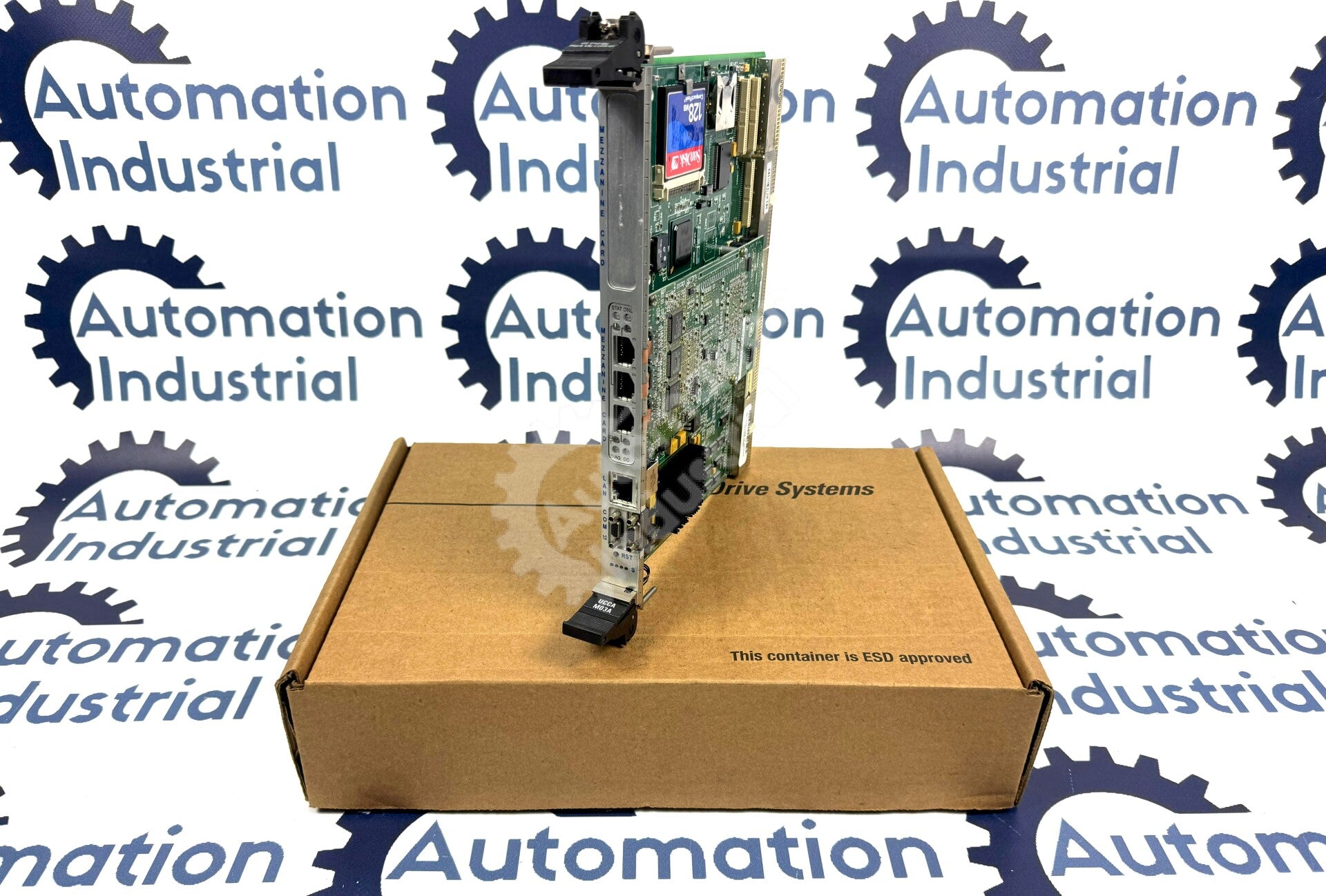

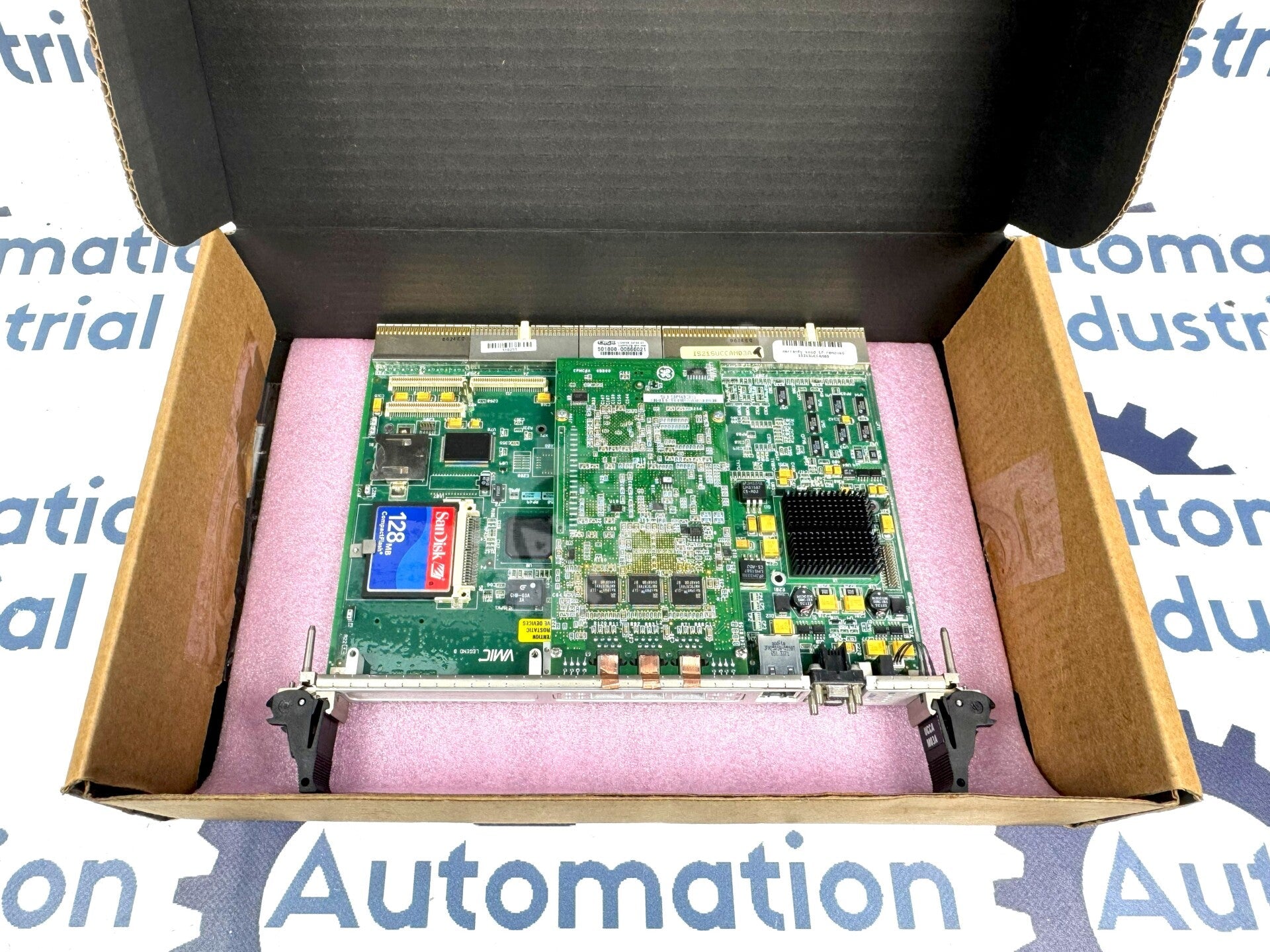

The IS215UCCAM03 (also seen as IS215UCCAM03A) is a General Electric UCCx-series controller in module form — the CompactPCI (CPCI) compute engine that runs turbine application code in GE Mark VI and Mark VIe control systems. Where the VME-based UCVx controllers live in a VME rack, the UCCA is built on a single-board computer that seats in a CompactPCI enclosure. Published references describe the M03 as a module assembly: the UCCAH3 processor board combined with flash and DRAM memory and the IS200EPMC mezzanine card. It runs the QNX Neutrino real-time operating system and executes control logic as rungs or blocks.

What is inside the M03 assembly

The processor board is the brain: an Intel x86-class single-board computer with two PCI Mezzanine Card (PMC) sites and a watchdog timer. An RJ-45 10BaseT/100BaseTX Ethernet port connects to the Unit Data Highway (UDH) for the HMIs and other control equipment, while the IS200EPMC adds Ethernet ports for the <R>, <S> and <T> I/O network (IONet) and the physical-layer snoop hardware used for IEEE 1588 precision time synchronization — the mechanism that keeps controllers and I/O packs aligned to within about ±100 microseconds. An RS-232C COM1 port is used for setup. One honest caveat on specifications: the exact processor and memory fitted vary by build, so match your board's full part number rather than assuming a clock speed or memory size from the acronym alone.

Diagnose Before You Buy: Controller, IONet, or Configuration?

A controller that appears dead is often the victim of something around it. Before ordering a replacement M03, isolate the fault:

• Read the front-panel LEDs. They report power, flash-disk activity, reset, online status and Ethernet state — use them to tell a hung processor from a comms problem.
• Check power and the CPCI rack. In a CompactPCI rack the slot-1 board is the system board; if it is ejected or unpowered, the other controllers in the rack stop too. Confirm rack power before condemning the module.
• Mind the CMOS battery jumper. On boards taken from storage the battery jumper may be disconnected; a controller that will not hold its real-time clock or settings can look failed when it simply needs the jumper reinstalled and the clock reset (NTP or ToolboxST).
• Separate firmware/configuration from hardware. A failed application download, a firmware/ControlST mismatch, or an IONet addressing conflict imitates a bad controller.
• Look at the network and I/O packs. Lost UDH or IONet links, or a faulty I/O pack, can present as a controller fault that no new board will cure.

Replace the M03 once the rack power, battery/clock, configuration and network are proven good — not before.

How to read UCCA part numbers and the M03 suffix

The number decodes in blocks. IS215 is the Mark VI board/assembly family and GE lineage; UCCA is the CompactPCI controller function. The letter that follows tells you the form: an H number (for example UCCAH3) is the bare single-slot processor board, while an M number such as M03 is the complete module assembly — processor board plus memory and EPMC. Match the whole string, including the trailing revision letter. Our GE Speedtronic Part Number Decoder works through the fields, and the Mark V vs Mark VI: DS200 to IS200 guide explains where this generation sits.

Related controllers and companion boards

The UCCA is closely related to the VME-based UCVx controllers (UCVB/UCVD/UCVE/UCVG) and works with the VCMI communication interface and Mark VI I/O packs. Browse the GE Mark VI IS200 Boards collection for those companions, or the broader GE Speedtronic Turbine Control Boards range.

What to include in your quote request

• The complete part number and suffix (IS215UCCAM03 / M03A) exactly as labeled.

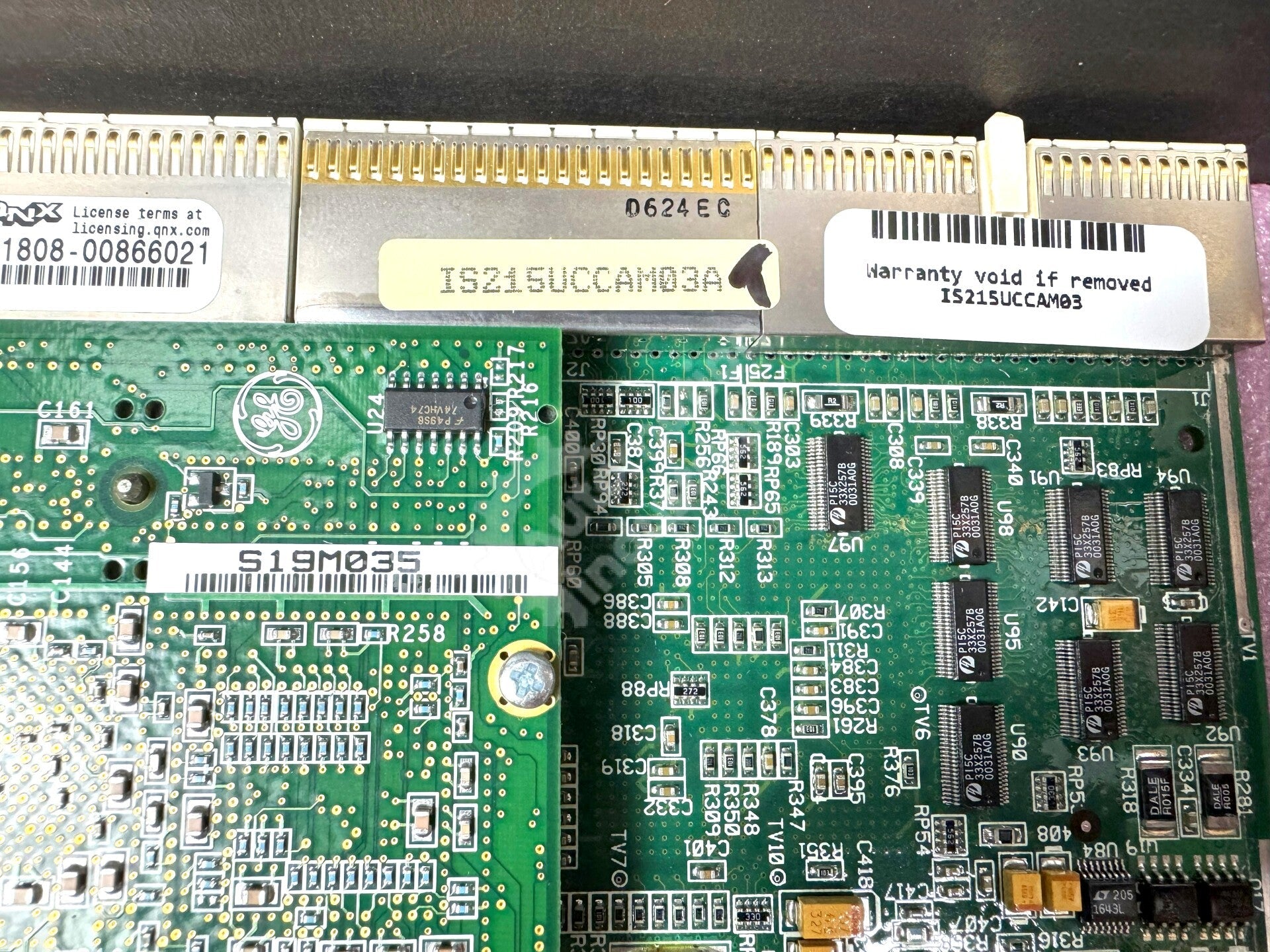

• Revision letter and a photo of the board or module label.
• Turbine model, Mark VI or Mark VIe generation, and simplex or TMR (<R>/<S>/<T>) architecture.
• ControlST/ToolboxST version if known, quantity, and urgency.

Request a Quote on the M03

This IS215UCCAM03 is offered as cleaned-and-tested used stock with a one-year warranty. Send your details and we will respond with a quote within 24 hours. We ship worldwide DDP and accept purchase orders from qualified organizations. Use Request a Quote and include your label photo so we can confirm the exact build.

General Information about the Product
Part Number	IS215UCCAM03 Mark VI IS215
Description	GE General Electric IS215UCCAM03 IS215UCCAM03A Control Board Mark VI
Condition	used Cleaned and Tested. With 1 Year Warranty.
