IS210AEBIH1B in the GE wind turbine control cabinet

When a GE wind turbine trips on a converter-side fault, the IS210AEBIH1B is one of the boards a maintenance team looks at first. It belongs to GE's Mark VIe Alternative Energy line - the wind and alternative-energy branch of the Speedtronic family - and its AEBI code stands for Alternative Energy Bridge Interface. In plain terms, the board is the electrical go-between that links the Mark VIe controller to the turbine's power-conversion bridge. This unit is offered used, cleaned and tested, in the H1B build with the AA production suffix.

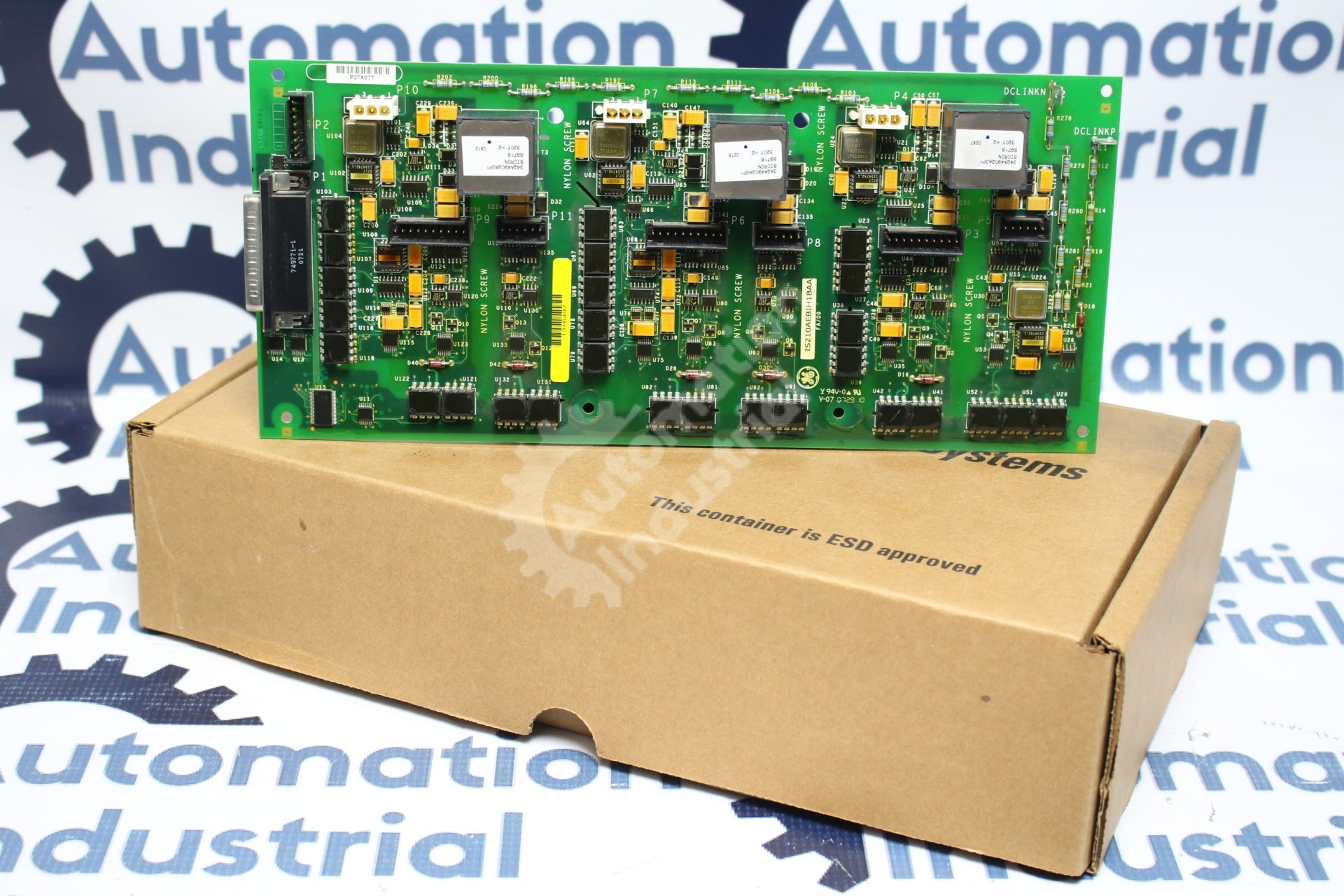

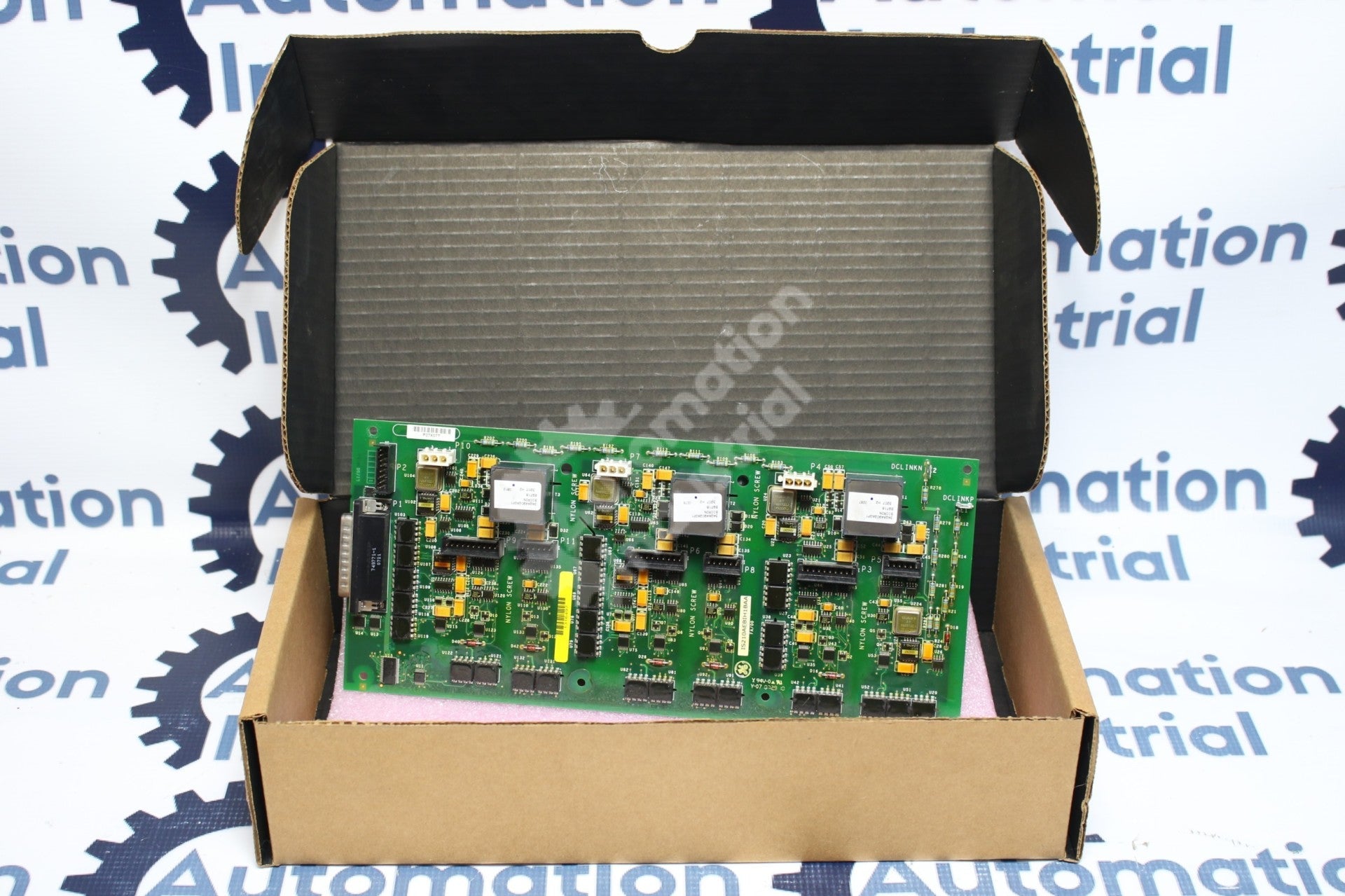

The board is a slim rectangular assembly. Technicians who have inspected the AEBI describe a right-angle connector along one short edge, a row of vertical pin headers, a set of three-position plugs, and stab-on terminals for the DC-link, together with a few onboard transformers. That mix of low-voltage signal connectors and DC-link hardware is what you would expect from a card that has one foot in the control world and one foot in the power-conversion world.

Before you swap the H1B: rule out the interconnect and power stage

Because the AEBI is an interface, a fault flagged against it is often born somewhere else in the chain. The board reports trouble that may actually sit in the wiring or the power hardware it connects to. Run these checks before you fit a replacement:

• Trace the interconnect end to end. The vertical pin headers, the right-angle connector, the three-position plugs and the DC-link stab-ons are all vibration-prone. A loose or oxidized contact throws the same alarm as a dead board and is fixed with a reseat, not a new part.
• Inspect the power stage it serves. A real bridge fault typically starts in the IGBT stack, the gate drive, or the bus wiring. The AEBI relays that condition; replacing it will not make the underlying converter fault go away.
• Confirm the supply feeding the card. If board-level power is missing or sagging, the card cannot come up. Measure it before assuming the board has failed.
• Compare against a known-good channel. On multi-string converters, swapping a suspect section with a healthy one is a fast way to prove whether the fault follows the board or stays with the wiring.

Only after those steps point back to the card itself is it worth fitting the replacement IS210AEBIH1B.

H1B vs H1A: what the revision letter changes

The base number here is IS210AEBIH1, and the final letter is the functional revision: an A board is the earlier revision, a B board a later one. GE issues a functional revision when it makes a working change to the board rather than a cosmetic one, so an H1A and an H1B are close relatives but not automatically interchangeable. Add the two-character production suffix - AA on this unit - and you have the exact build. When you order, match the whole string, IS210AEBIH1BAA, against your installed board; if your system runs an A revision, tell us and we will confirm what is compatible rather than guess. The GE Speedtronic Part Number Decoder explains how each field is built.

Companion boards and generation notes

Inside the alternative-energy cabinet, the AEBI is powered and supported by the AE Power Supply (AEPS) board, and the two families turn up together in most GE wind converter builds. These Mark VIe wind boards share the IS210 catalog convention with the gas-turbine Mark VI IS200 boards but are a distinct product line, not drop-in equivalents. If you also maintain classic Speedtronic equipment, our GE Mark VI IS200 Boards collection covers the gas- and steam-turbine side of the platform.

Details that speed up your quote

Have these ready and we can turn a quote around quickly:

• Complete part number with suffix (IS210AEBIH1BAA)
• Board revision and any dash number on the label
• A photo of the GE label and the board
• Turbine model and control generation
• Quantity and outage urgency

Request your IS210AEBIH1B quote

This IS210AEBIH1B is in stock as a used board, cleaned and tested. Use the Request a Quote button and you will hear back within 24 hours. Shipping is worldwide on DDP terms, purchase orders are welcome, and we can expedite when a turbine is down. Send the full part number and your turbine details for a firm, revision-matched quote.

General Information about the Product
Part Number	IS210AEBIH1B Mark VI IS210
Description	GE General Electric IS210AEBIH1B IS210AEBIH1BAA Wind Turbine Mark VI
Condition	used Clean and Tested. With 1 Year Warranty.
