The Power Supply Behind a Mark V Core

On a GE Speedtronic Mark V, the DS200TCPS is the board that converts the 125 VDC distribution bus into the supplies each core needs. Out of that single 125 VDC input it produces the core's regulated rails: the +5 VDC logic supply, trimmed with an onboard potentiometer, together with the analog and servo-drive rails commonly listed as ±15 VDC and ±24 VDC. It is the foundation the rest of the core is built on — processors, analog conversion and servo outputs all draw from it.

The name spells out the input side: this is a DC-input supply, fed with 125 VDC rather than AC. That DC arrives from the TCPD power-distribution board in the <PD> core, and on an AC-only installation a <DACA> converter must generate the 125 VDC first, because the TCPS will not run on AC. Each core has its own board, so a TMR Mark V carries independent supplies in <R>, <S> and <T>, along with the <C> and I/O cores.

Three Things to Rule Out First

Before you decide the TCPS has failed, three checks will catch most of the look-alike faults and keep you from buying a board you do not need:

• The input. Confirm 125 VDC is actually reaching the board. A tripped source, a dropped <DACA> output or an AC-only feed without a converter reproduces a dead-board symptom precisely.
• The measurement. Read the rails at the silkscreened test points with a calibrated meter, or use the DIAGC display for the core. A meter that is off can fabricate a fault or lead to mis-adjusting the +5 VDC rail, which then behaves like an intermittent board failure.
• The shared bus. If several cores alarm on the same rail together, look for a grounded device on the shared 24 VDC bus rather than assuming multiple boards failed at once.

That said, the TCPS is a real wear item — it runs warm and can grow noisy over years of service — so it does fail on its own. These checks simply separate a true board fault from the far more common input, meter and grounding issues.

Reading the Suffix on DS200TCPSG1ARE

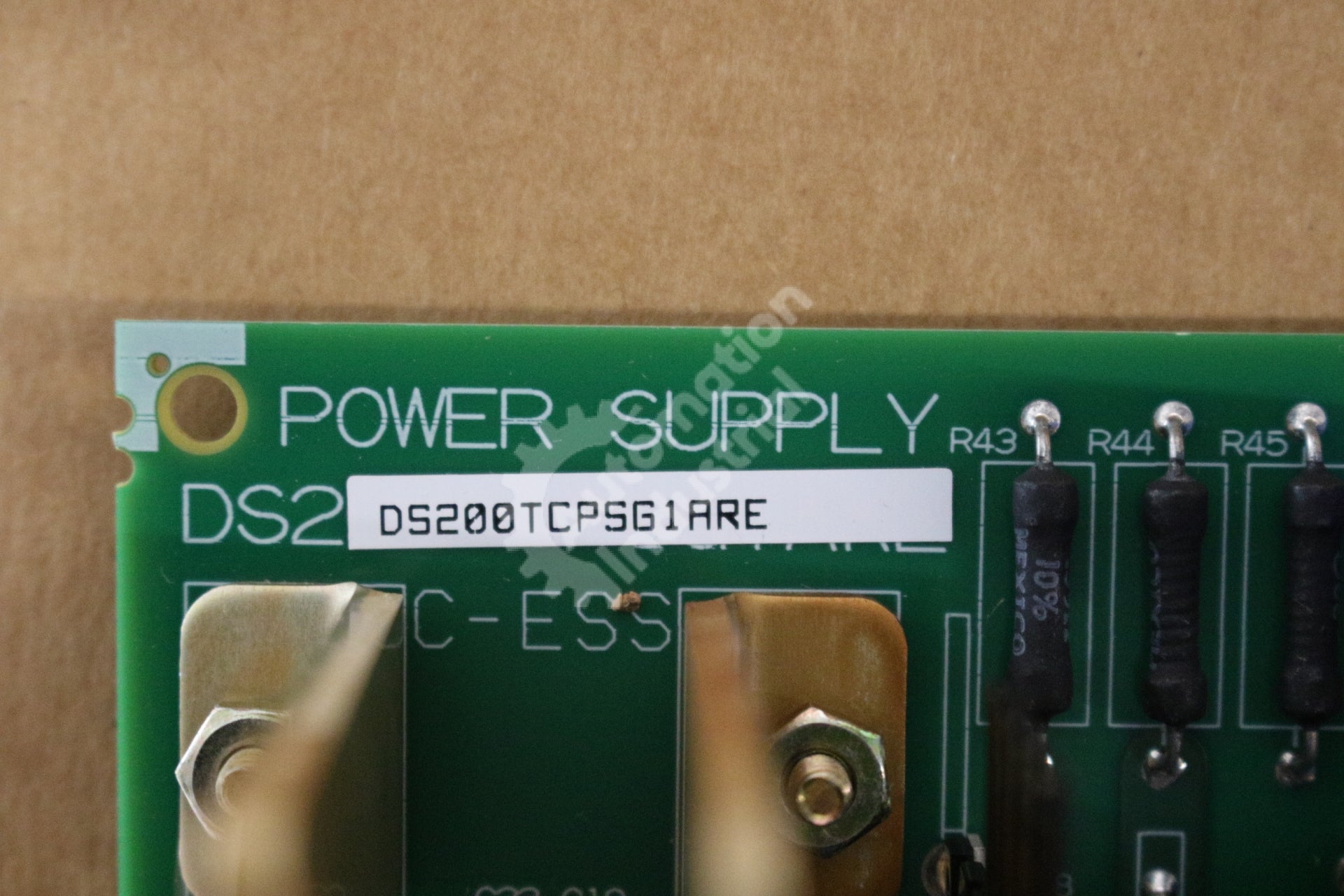

This board is a DS200TCPSG1A, full number DS200TCPSG1ARE. DS200 designates the Mark V board series, TCPS the DC-input power-supply function, G1 the group — the TCPS ships as group 1 — and ARE the revision. Because revision tails such as ARE, AME, APE and AHC represent successive versions of the same board, order to the revision your panel expects, or confirm supersession before fitting a different one. The GE Speedtronic Part Number Decoder explains the format, and the number should be taken from the board silkscreen rather than the slot.

Related Power and I/O Boards

The TCPS is one piece of the Mark V power and I/O group. Its 125 VDC comes from the TCPD board in the <PD> core, and it powers the working cards in its core, which sit alongside boards such as the TCDA digital I/O and the TCQA analog I/O. The GE Mark V DS200 Boards Explained guide shows how they interconnect, and the GE Mark V DS200 Boards collection lists current availability. Operators comparing platforms can consult Mark V vs Mark VI: DS200 to IS200 for how the generation changed.

Quote Request Checklist

• Full part number and revision (DS200TCPSG1ARE) from the board.
• A photo of the label and silkscreen.
• Turbine model and Mark V architecture (Simplex or TMR).
• The core the supply serves.
• Quantity and urgency.

Request a Quote Today

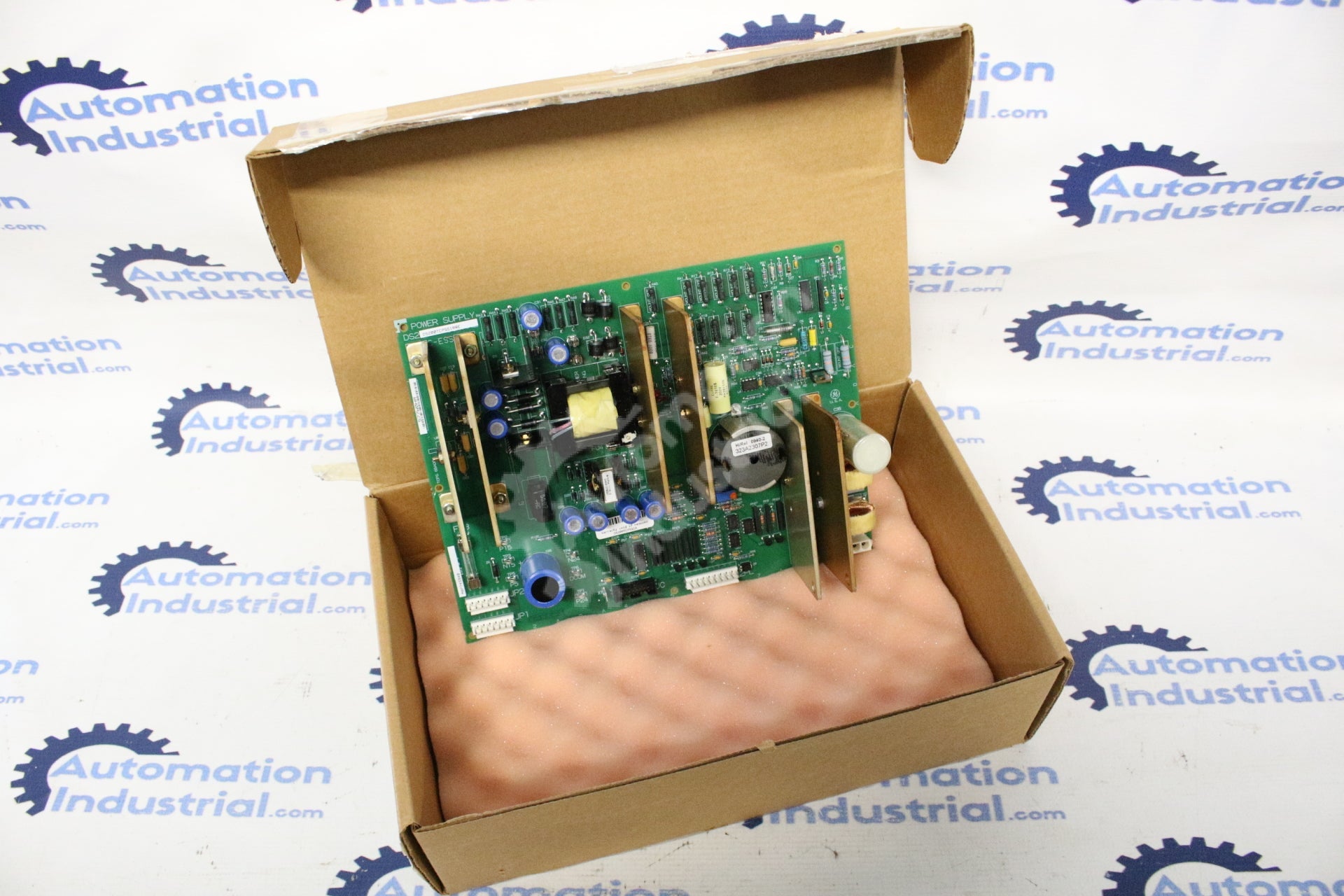

This DS200TCPSG1ARE is a used board, cleaned and tested, with a one-year warranty. Send the details above using the Request a Quote button and we will reply within 24 hours with availability and lead time. We ship worldwide DDP and accept purchase orders.
