Digital I/O on the Mark V: What DS200TCDAG1BCB Does

DS200TCDAG1BCB is a G1-group TCDA card – the Digital I/O board of GE's Speedtronic Mark V turbine control system. This particular part number carries a three-revision history (two functional revisions plus an artwork revision), with the first two revisions documented as backward-compatible with each other. Functionally, the card gives the Mark V's control logic a physical path to relay outputs and contact inputs; which terminal does what is set through software configuration rather than fixed wiring on the card itself.

The TCDA mounts in one of the Mark V's control cores – <R>, <S>, or <T> on a TMR panel, the single core on a Simplex panel – and is also part of the card set commonly documented in the <C> communication core. It has factory-drilled mounting holes at multiple points on the base board and works alongside a companion relay card (TCRA) and I/O boards including STCA, UCPB, TCQA, TCQE, and TCEA.

Diagnose First, Replace Second

Before you order a replacement TCDA, it is worth ruling out the faults that mimic a bad card. Field-documented Mark V cases show that alarms like a DCC I/O card socket going into an A2 state, or a TCDA cycling continuously through its I/O status after a unit trip, are frequently NOT a card failure at all:

• IONET termination jumpers in the wrong place. The IONET loops through every TCEA card in the core and should terminate only at the TCDA. Termination resistors left IN on a TCEA card (rather than OUT) reproduce this exact fault with a good TCDA installed.
• Ripple or transient spikes on the DC control bus – from a battery charger, or from de-energizing large unsuppressed DC coils near the cabinet.
• An outstanding PROM/firmware revision. GE has issued guidance resolving IONET communication problems through a firmware update rather than a hardware swap.
• The TCPS power supply feeding the core, rather than the TCDA card – verify supply rails before condemning the card.
• A poorly seated card or connector, or an intermittent ground on a field cable.

Also separate the TCDA from its relay-output partner, TCRA: TCRA's electromechanical relays wear out through switching cycles, while the TCDA is solid-state and doesn't share that failure mode. A relay output that won't energize is more often a TCRA problem than a TCDA one. On service life, there's no fixed retirement age for these cards – many Mark V boards run trouble-free for eight years or longer, and industry experience places mean time between failures for cards like this in the low hundreds of thousands of hours, with cabinet heat, humidity, dust, and voltage transients driving most real failures rather than age alone. If you replace configurable hardware, remember to set every jumper on the new card – including the RS-232C enable jumper and the IONET termination jumpers – to match the exact positions of the card you removed, not factory defaults.

What G1BCB Tells You

Breaking the number down: DS200 is the Mark V-era board series prefix, TCDA is the Digital I/O functional acronym, G1 is this board's product grouping, and BCB represents its revision stack – a B-rated functional revision, a C-rated functional revision, and a B-rated artwork configuration revision, three revisions removed from the original DS200TCDAG1 parent design. G1 and H1 TCDA cards are different hardware groupings sold under the same functional acronym, so don't treat a G1 as automatically interchangeable with an H1 – match the full part number, including the letter suffix, to what your system documentation calls for.

Related Boards and Platform Migration

Cards you'll typically see referenced alongside the TCDA include TCRA, STCA, UCPB, TCQA, TCQE, and TCEA. If your facility is considering a longer-term move off Mark V, GE's Mark VI platform replaced the DS200 board series with IS200-series hardware and a different I/O scheme – our Mark V vs Mark VI: DS200 to IS200 guide covers the general mapping. For how GE structures its Speedtronic part numbers, see the GE Speedtronic Part Number Decoder, and for where TCDA fits among the rest of the DS200 family, see GE Mark V DS200 Boards Explained.

Information We Need for an Accurate Quote

• Complete part number and suffix from the label, e.g., DS200TCDAG1BCB
• A photo of the label
• Turbine model and Mark V panel type (Simplex or TMR)
• Quantity needed
• Whether this is for stock, a planned outage, or an active turbine-down event

Request a Quote

This DS200TCDAG1BCB is offered in used, clean-and-tested condition with a 1-year warranty (see below). We keep pricing off our site because every Mark V quote is tied to exact revision availability and current stock – submit a Request a Quote and our team responds within 24 hours. We ship worldwide DDP, accept purchase orders, and support both scheduled maintenance and emergency turbine-down orders.

General Information about the Product
Part Number	DS200TCDAG1B

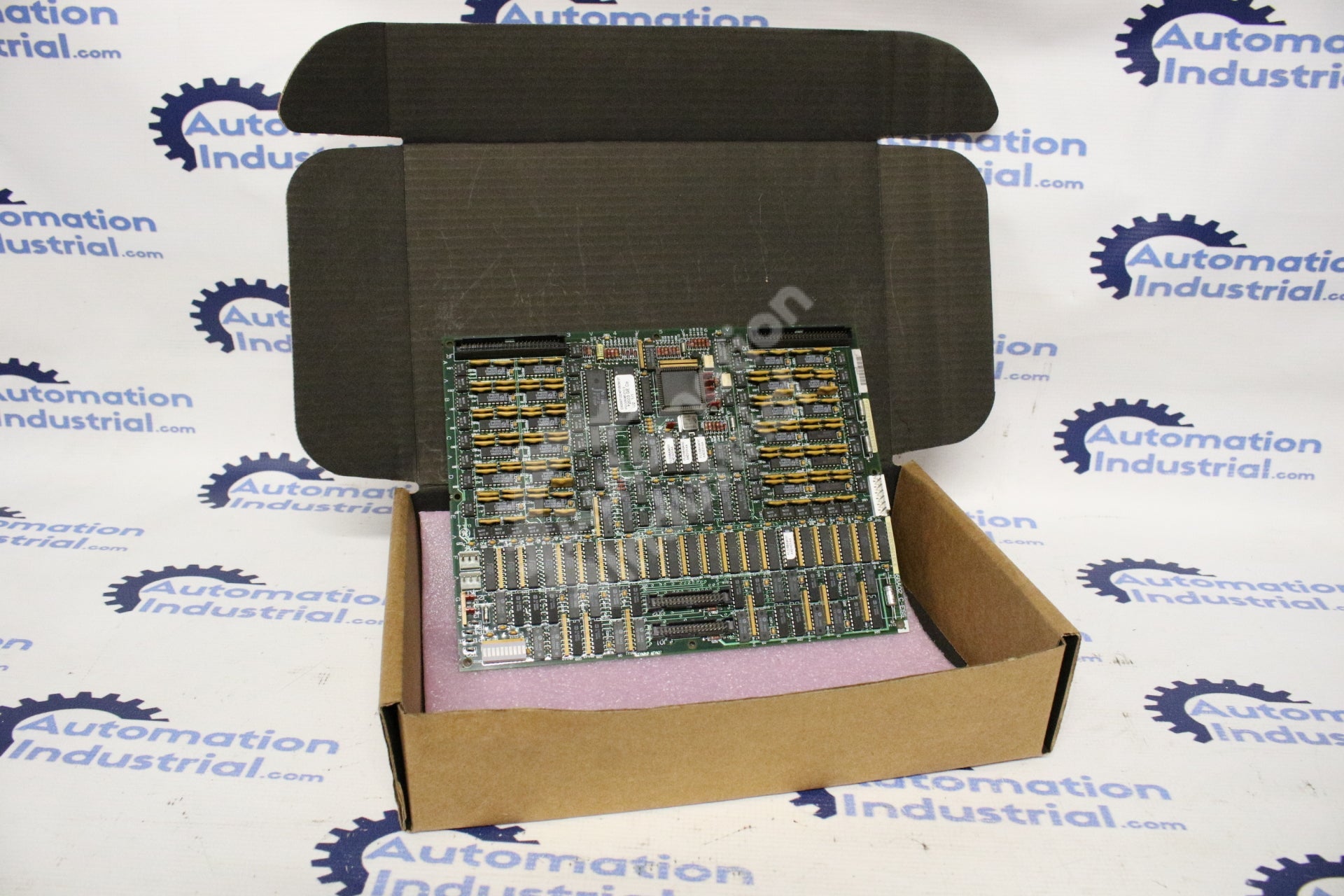

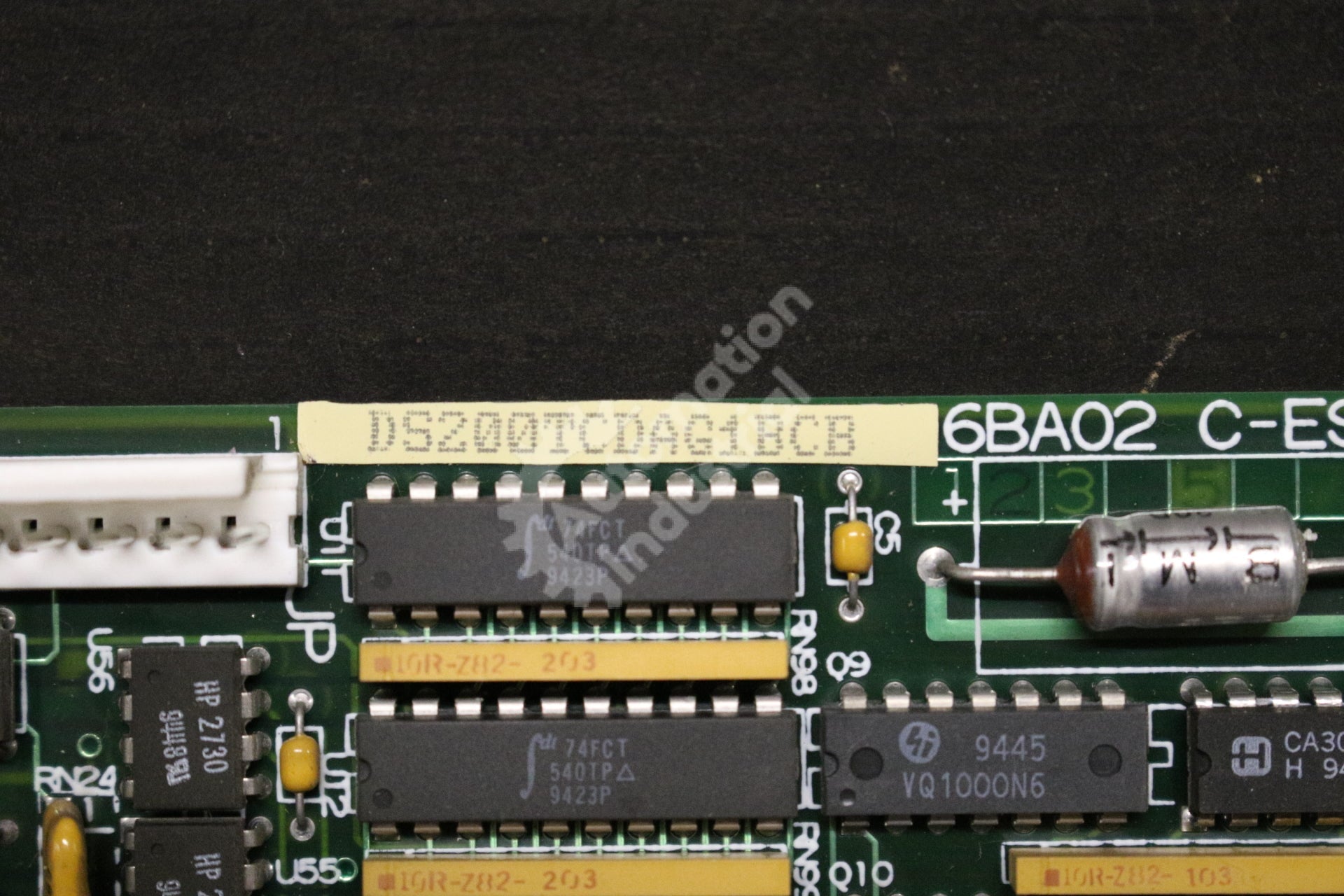

Description	GE DS200TCDAG1B DS200TCDAG1BCB Digital I/O Board Mark V
