Description

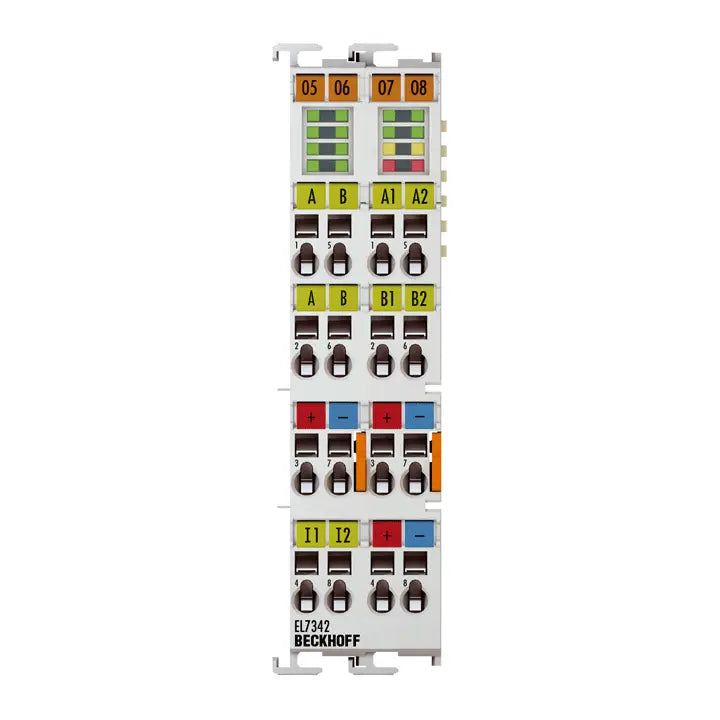

The Beckhoff EL7342-0035 is a two-channel DC motor output stage designed for precise motion control within EtherCAT automation systems. This module provides up to 3.5 A output current at 50 V DC and is specifically engineered for use with 5 V encoder feedback. It is suitable for compact servo and DC motor control applications requiring accurate and responsive performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Servo Products |
| Part Number |
EL7342-0035 |
| Subcategory |
Servo Motor |
| Module Type |
DC Motor Output Stage |
| Number of Channels |
2 |
| Motor Supply Voltage |
Up to 50 V DC |
| Output Current |
3.5 A |
| Encoder Voltage Requirement |
5 V only |
| Communication Protocol |
EtherCAT |
| Installation Type |
EtherCAT EL Terminal |
| Application Type |
DC Motor Control |
| Weight |
90 g |
Information About EL7342-0035
The EL7342-0035 is part of Beckhoff’s EL terminal series, designed for modular motion and drive control over EtherCAT networks. It features a compact form factor that integrates directly into Beckhoff I/O systems, enabling decentralized motor control close to the machine. The module supports two independent DC motor channels and is optimized for encoder-based feedback systems operating at 5 V. Typical usage includes small axis control, positioning tasks, and synchronized motion in automated machinery and production equipment.
Key Features:
- Two-Channel Motor Output: Controls two independent DC motors within a single EtherCAT terminal.
- 50 V DC Motor Supply: Supports DC motor operation up to 50 V DC for industrial applications.
- 3.5 A Output Current: Provides sufficient current capacity for small to medium DC motor loads.
- 5 V Encoder Compatibility: Designed exclusively for systems using 5 V encoder feedback.
- EtherCAT Integration: Enables real-time communication and precise synchronization within Beckhoff control systems.
- Compact EL Terminal Design: Allows space-efficient installation in control cabinets.
- Precision Motion Control: Suitable for accurate speed and position control applications.
The EL7342-0035 delivers the reliability and precision required for DC motor control in EtherCAT-based automation environments.
