Description

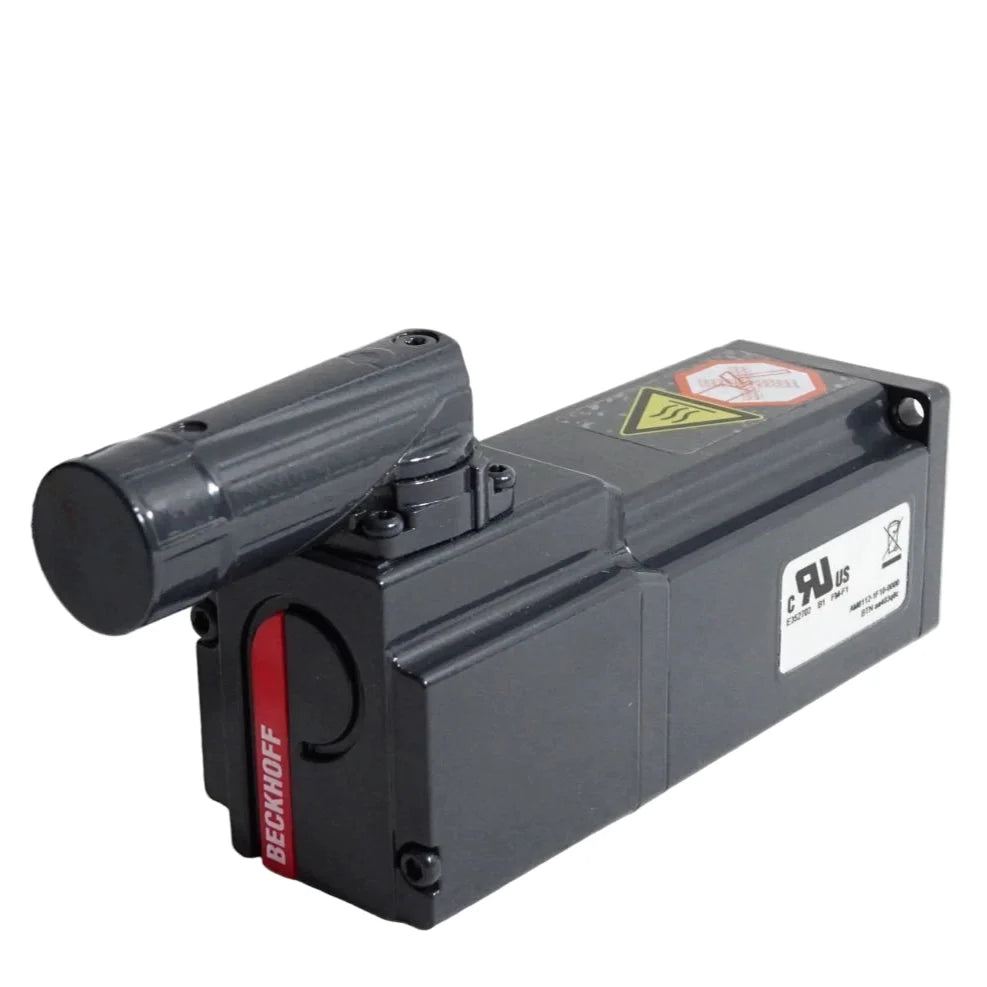

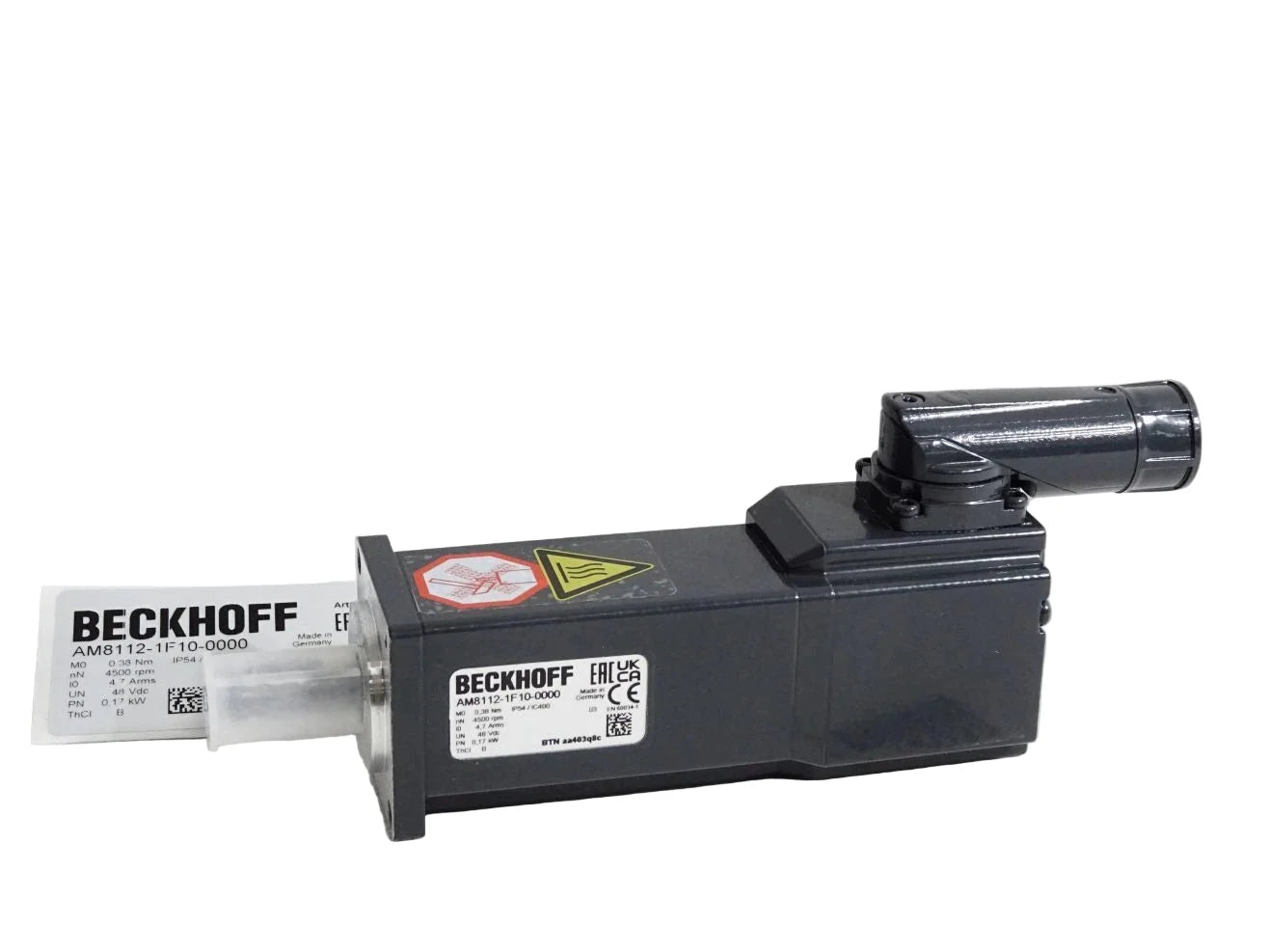

The Beckhoff AM8112-1F10-0000 is a compact synchronous servo motor engineered for dynamic motion control applications. It operates at 48 V DC, delivering 0.38 Nm standstill torque and up to 4500 RPM for precise and efficient performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Motors |
| Part Number |
AM8112-1F10-0000 |
| Subcategory |
Synchronous Servo Motors |
| Rated Voltage |
48 V DC |
| Standstill Torque (Mo) |
0.38 Nm |
| Rated Current (Io) |
4.7 A |
| Rated Speed (nn) |
4500 RPM |
| Feedback System |
One Cable Technology (power + feedback in one line) |
| Protection Rating |
IP54 |
| Series |
AM8000 Series |
| Cooling Method |
Natural convection |
| Construction |
Compact housing with precision winding |
| Storage Temperature |
-25…+85°C |
| Operating Temperature |
0…40°C |
| Relative Humidity |
95%, no condensation |
| Application |
Motion control, positioning, automation systems |
| Weight |
0.64 kg |
Information About AM8112-1F10-0000
The AM8112-1F10-0000 is part of Beckhoff’s AM8000 series of synchronous servo motors, designed for high-speed automation and machine control. Built with advanced one-cable technology, it combines power and feedback transmission in a single line, simplifying installation and reducing cabling effort. It provides a standstill torque of 0.38 Nm with a rated current of 4.7 A, offering stable performance in demanding control environments. With a protection class of IP54, lightweight 0.64 kg construction, and optimized efficiency, this motor is suitable for compact systems requiring both speed and precision.
Key Features:
-
Rated Voltage: Operates at 48 V DC for compatibility with low-voltage servo drive systems.
-
Standstill Torque: Provides 0.38 Nm torque, ensuring accurate positioning and reliable holding force.
-
High-Speed Performance: Achieves a rated speed of 4500 RPM, enabling dynamic motion in automation setups.
-
Rated Current: Uses 4.7 A nominal current for efficient and stable operation under load.
-
One-Cable Technology: Integrates power and feedback signals in a single cable, reducing wiring complexity.
-
Protection Class: Rated IP54, offering resistance against dust and splashing water for industrial environments.
-
Lightweight Design: Weighs only 0.64 kg, making it suitable for compact and weight-sensitive machinery.
-
Series Integration: Part of the Beckhoff AM8000 servo motor family, ensuring compatibility with EtherCAT-based motion systems.
The AM8112-1F10-0000 delivers the reliability and precision required for high-speed motion control in industrial automation applications.
