Description

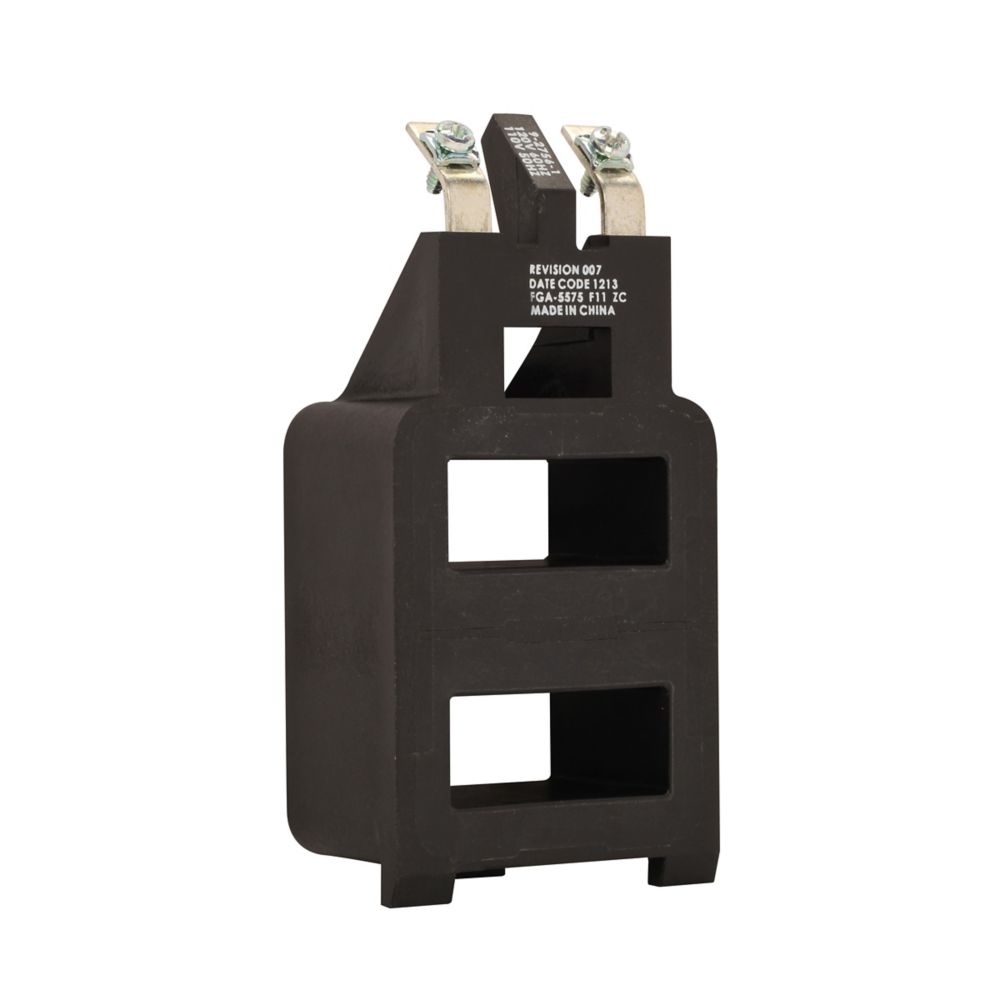

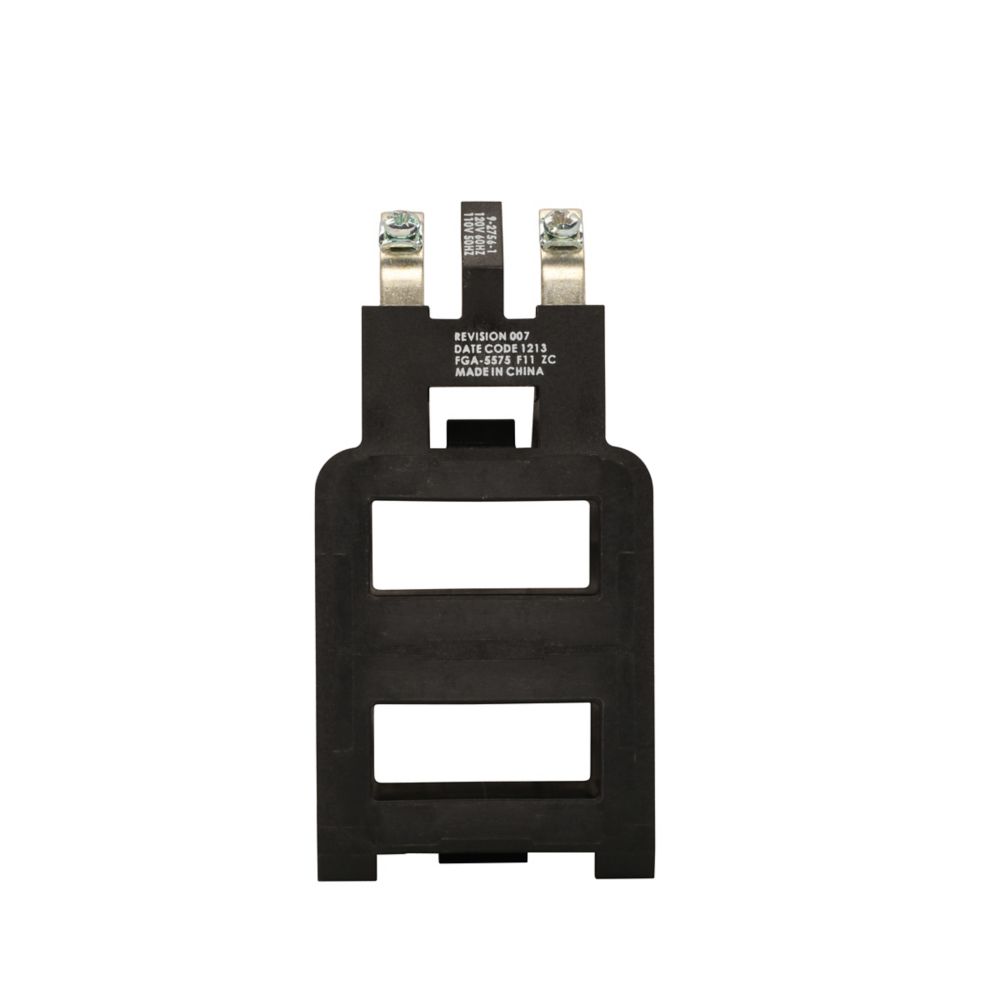

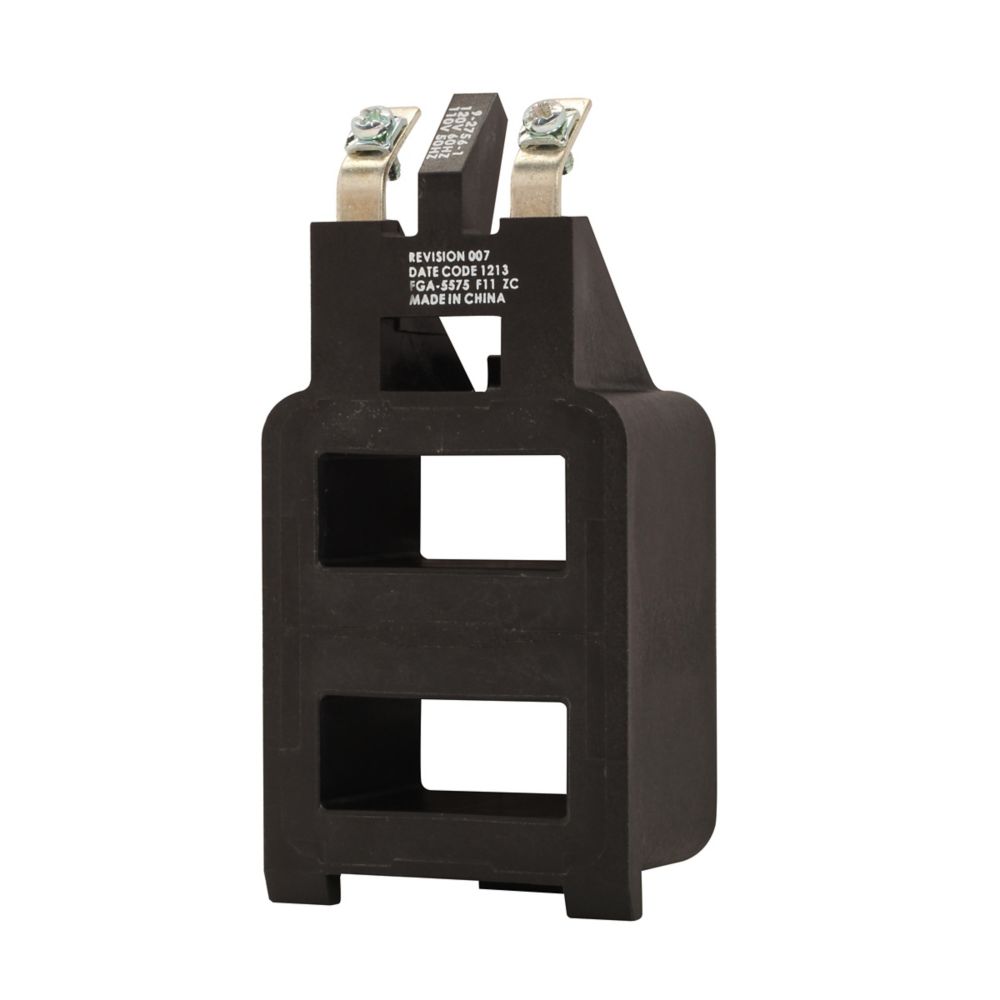

The Eaton 9-2756-3 is a motor control coil designed as a renewal component for Freedom series motor starters and contactors. Eaton part number 9-2756-3 operates at 480/440 V and supports reliable electromagnetic actuation in industrial motor control circuits. Its compact design and precise electrical characteristics ensure dependable performance in maintenance, repair, and replacement applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Motor Control |
| Part Number |
9-2756-3 |
| Subcategory |
Contactor / Starter Coil |
| Product Type |
Motor control renewal parts/accessories |
| Used With |
Eaton Freedom series motor starters and contactors |
| Type |
Renewal Parts / Accessories |
| Coil Voltage |
480/440 V |
| Frequency Rating |
50–60 Hz |
| Device Size Compatibility |
Size 3 |
| Frame Size |
90 mm |
| Global Catalog |
9-2756-3 |
| Certifications |
Not Applicable |
| Product Dimensions (L × W × H) |
1.362 × 4.842 × 2.385 in |
| Warranty |
Eaton Selling Policy 25-000 |
| Weight |
1.05 lb |
Information About 9-2756-3
The 9-2756-3 is a motor control coil from Eaton intended for use with Freedom series motor starters and contactors. Designed as a renewal part, it restores proper control functionality by energizing the contactor mechanism when supplied with the specified control voltage. The coil operates at 480/440 V and supports both 50 Hz and 60 Hz systems, making it suitable for a wide range of industrial control panels. Built for Size 3 (90 mm) Freedom motor control devices, it helps maintain reliable switching performance in motor-driven equipment and automation systems.
Key Features:
- Freedom Series Compatibility: Specifically designed for use with Eaton Freedom motor starters and contactors.
- 480/440 V Coil Voltage: Operates reliably within common industrial control voltage systems.
- Renewal Replacement Component: Ideal for maintaining or restoring motor control equipment functionality.
- Dual Frequency Support: Compatible with both 50 Hz and 60 Hz electrical systems.
- Size 3 Device Compatibility: Engineered for Freedom Size 3 (90 mm) motor control units.
- Compact Coil Construction: Designed to fit precisely within the contactor assembly for efficient operation.
- Reliable Electromagnetic Actuation: Ensures consistent switching performance of motor control circuits.
- Industrial Maintenance Solution: Suitable for repair and replacement in existing motor control installations.
The 9-2756-3 delivers the reliability and precision required for maintaining proper operation of Freedom motor control contactors and starters.
