Description

The Eaton Crouse-Hinds WSRDW63542 is a 60A, 3-wire, 4-pole non-fused interlocked receptacle with an enclosed disconnect switch, designed for safe and reliable power connections in industrial environments.

Technical Specifications

Information About WSRDW63542

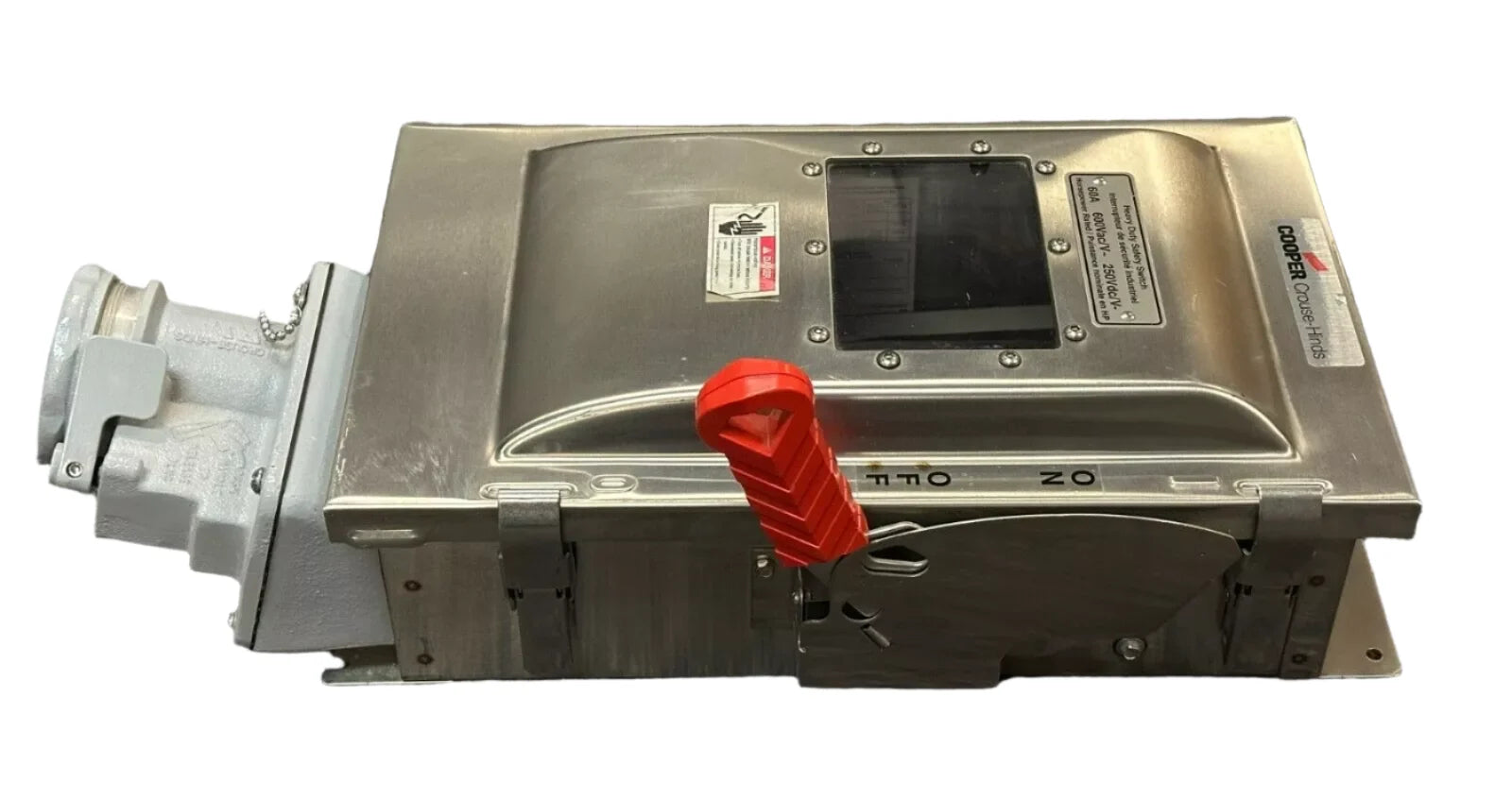

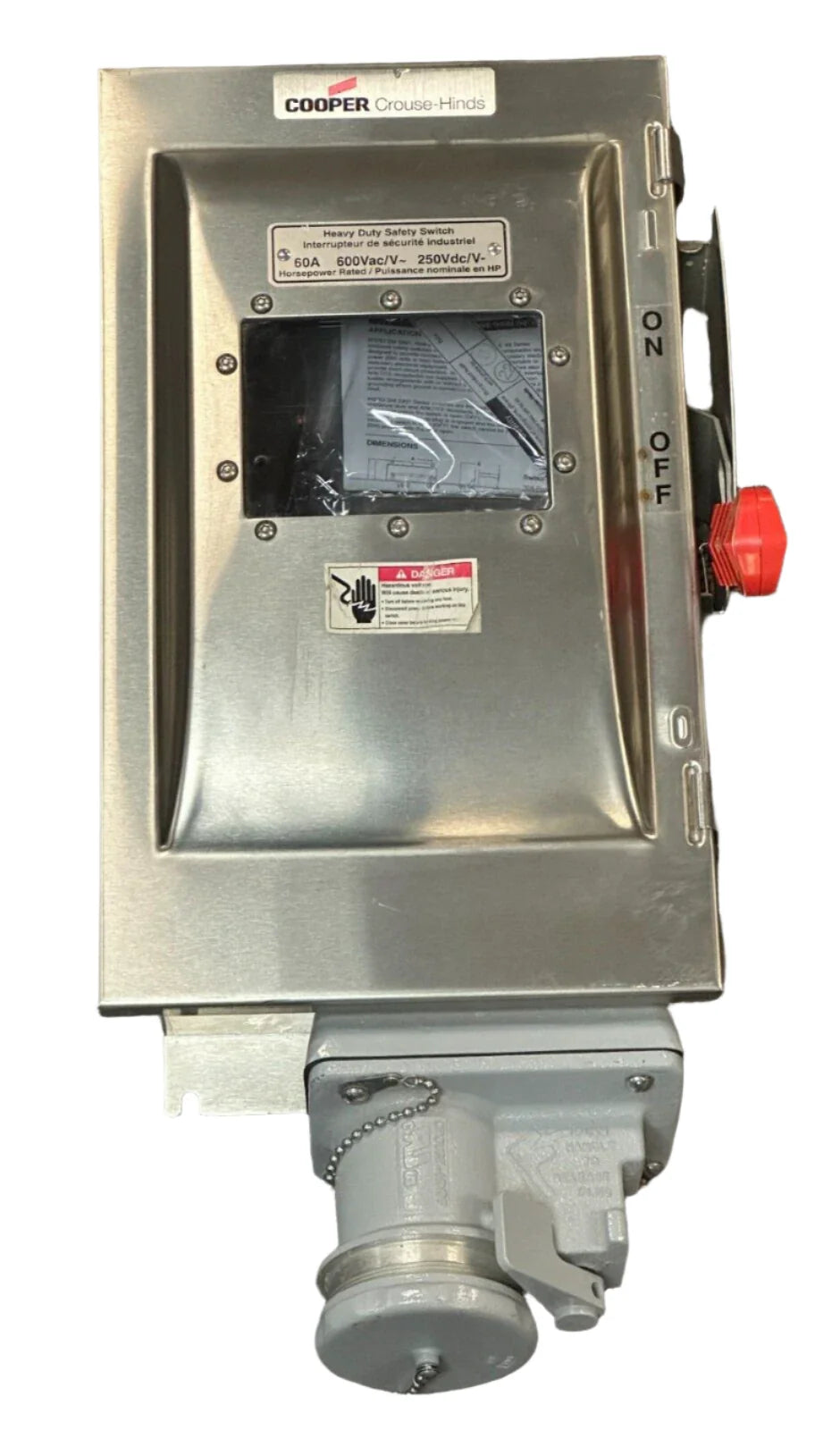

The Eaton Crouse-Hinds WSRDW63542 is a 60A, 3-wire, 4-pole non-fused interlocked receptacle with an enclosed disconnect switch, designed for safe and reliable power connections in industrial environments. It features a windowed door for visual verification of switch status, brass contacts for enhanced conductivity, and a spring-loaded receptacle door to prevent accidental disconnection under load. The enclosure is constructed from sheet steel with a copper-free aluminum receptacle housing, offering durability and corrosion resistance. With a voltage rating of 480/600 VAC and horsepower ratings up to 50 HP, this unit is suitable for various heavy-duty applications. It complies with NEMA 3R/12 standards, ensuring protection against environmental factors.

Key Features:

• Amperage Rating: 60A
• Voltage Rating: 480/600 VAC
• Configuration: 3-wire, 4-pole (Style 2 grounding)
• Enclosure Material: Sheet steel with copper-free aluminum receptacle housing
• Contact Material: Brass
• Door Style: Windowed
• Receptacle Style: Spring-loaded door
• Horsepower Ratings: Up to 50 HP
• NEMA Rating: 3R/12
• Certifications: UL Listed, cUL Certified


The WSRDW63542 provides a secure and efficient solution for power distribution in demanding industrial settings, ensuring safety and compliance with established standards.
