Description

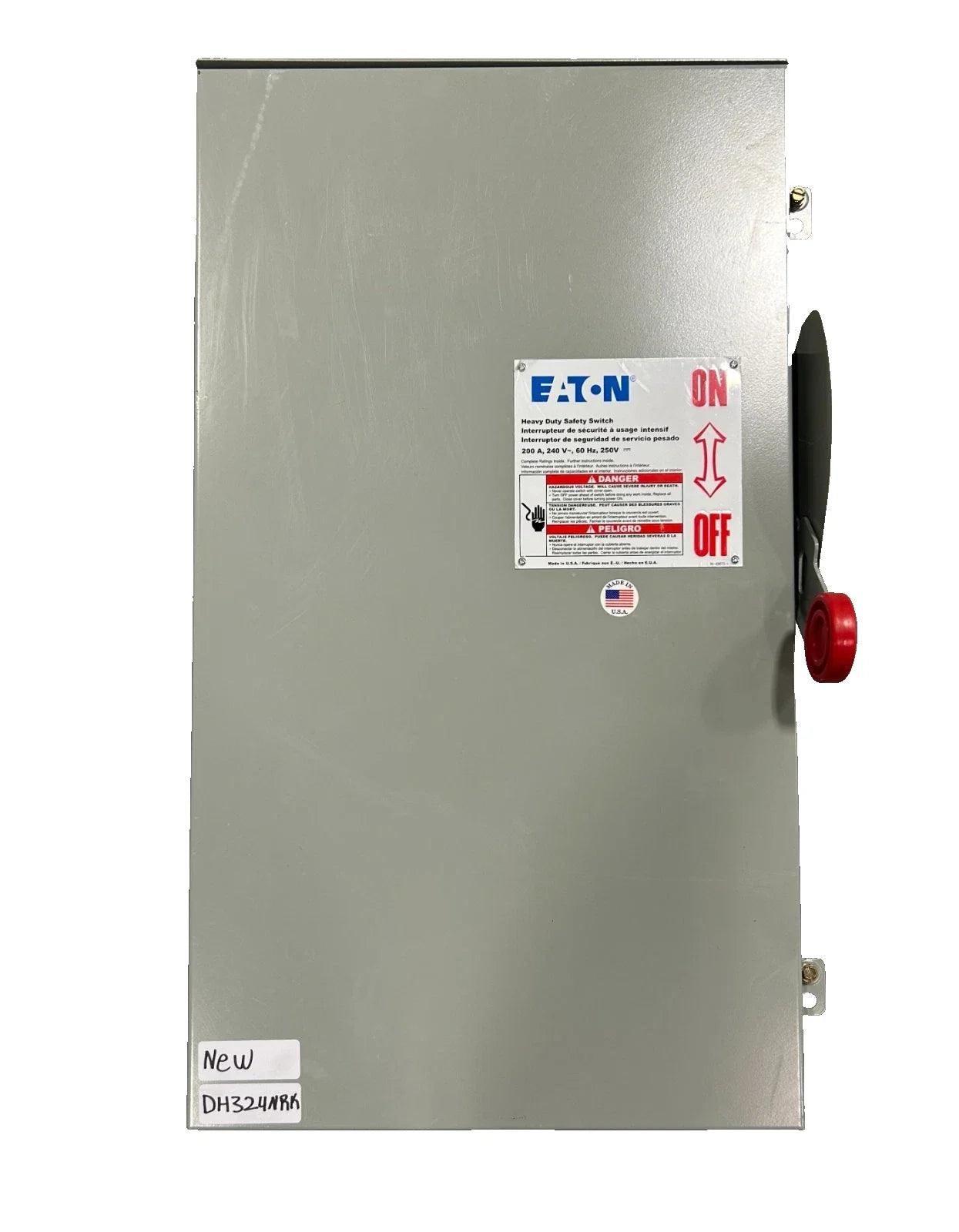

The Eaton DH324NRK is a heavy-duty fusible safety switch designed for secure power disconnect and circuit protection in industrial and commercial electrical systems. Manufactured by Eaton, the DH324NRK features a 200 amp rating with a three-pole, four-wire configuration and operates at 240V AC. Its NEMA 3R weather-resistant enclosure and visible blade mechanism provide reliable operation and safe isolation for service entrance and distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
DH324NRK |
| Subcategory |
Fusible Safety Switch |
| Switch Type |
Heavy Duty Fusible Disconnect |
| Amperage Rating |
200 A |
| Voltage Rating (AC) |
240 V |
| Voltage Rating (DC) |
250 V |
| Number of Poles |
3 |
| Number of Wires |
4 |
| Neutral Type |
Solid Neutral |
| Fuse Type |
Class H Cartridge, Time Delay |
| Fuse Configuration |
Fusible with Neutral |
| Wire Size Range |
#6 AWG – 250 kcmil Cu/Al |
| Enclosure Rating |
NEMA 3R |
| Enclosure Material |
Painted Galvanized Steel |
| Applicable Standard |
NEMA KS-1 |
| Certification |
UL 98 |
| Width |
16 in |
| Depth |
11.25 in |
| Height |
27.63 in |
| Weight |
52 lb |
Information About DH324NRK

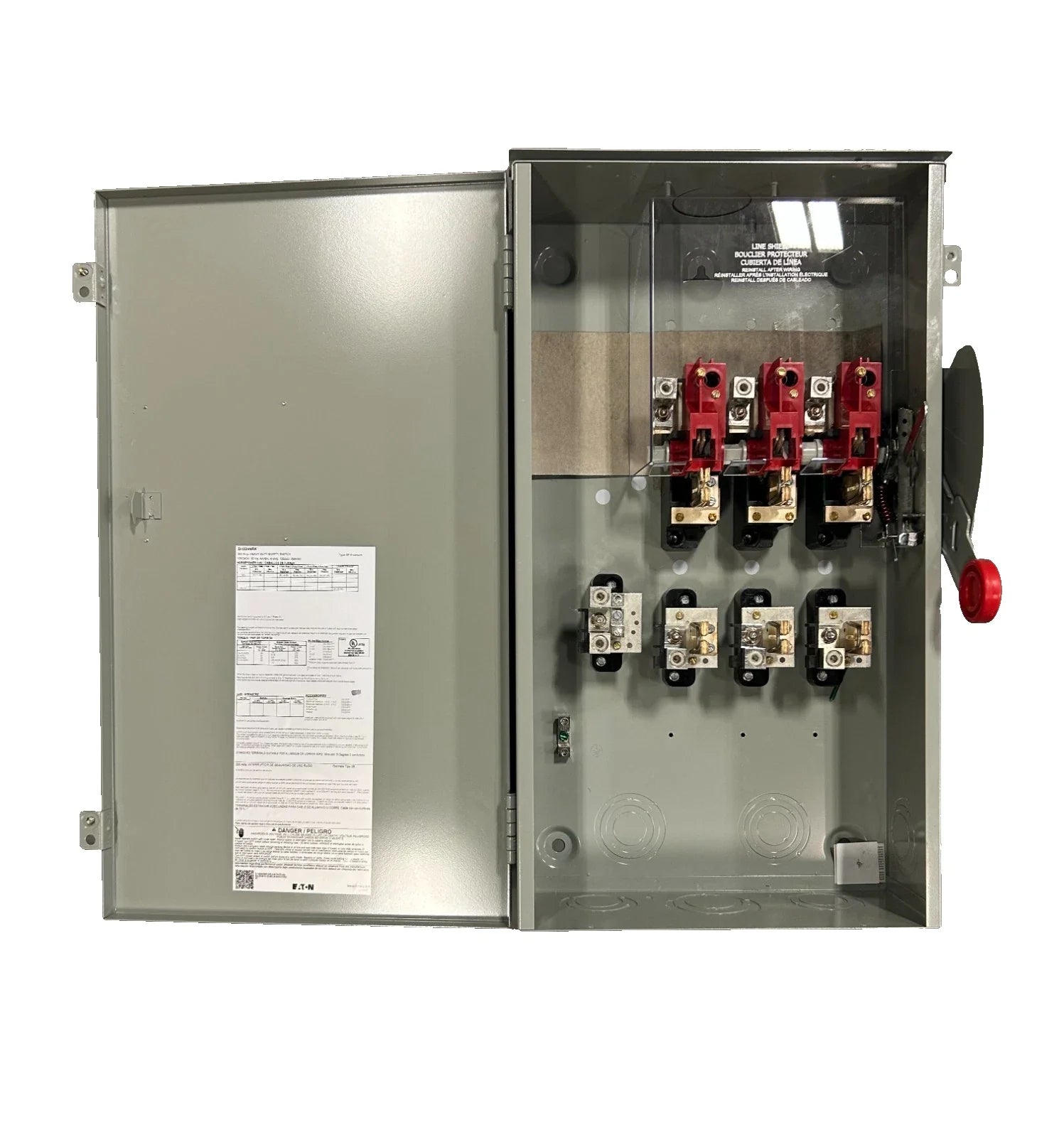

The DH324NRK is part of Eaton’s heavy-duty safety switch series engineered for high-performance power isolation and circuit protection. This fusible disconnect switch uses Class H cartridge fuses to provide overcurrent protection while enabling manual switching of electrical circuits. The unit incorporates a visible double-break rotary blade mechanism that ensures positive opening and closing of contacts while improving durability and contact life. Designed for service entrance installations and outdoor environments, the switch features a painted galvanized steel enclosure with a NEMA 3R rating to protect internal components from weather exposure.
Key Features:
- 200 Amp Current Rating: Supports medium-capacity electrical circuits in commercial and industrial installations.
- Fusible Safety Switch Design: Provides overcurrent protection through installed Class H cartridge fuses.
- Three-Pole, Four-Wire Configuration: Designed for systems requiring a solid neutral connection.
- NEMA 3R Weather-Resistant Enclosure: Suitable for indoor and outdoor installations exposed to rain or moisture.
- Visible Double-Break Blade Mechanism: Ensures clear visual confirmation of circuit disconnection and improved contact performance.
- Padlockable Handle Design: Allows multiple padlocks for increased personnel safety during maintenance.
- Door Interlock Safety Feature: Prevents opening the enclosure when the switch is in the ON position.
- Service Entrance Capability: Designed for use in service entrance applications with proper configuration.
The DH324NRK delivers the reliability and precision required for safe circuit isolation and overcurrent protection in electrical distribution systems.
