Description

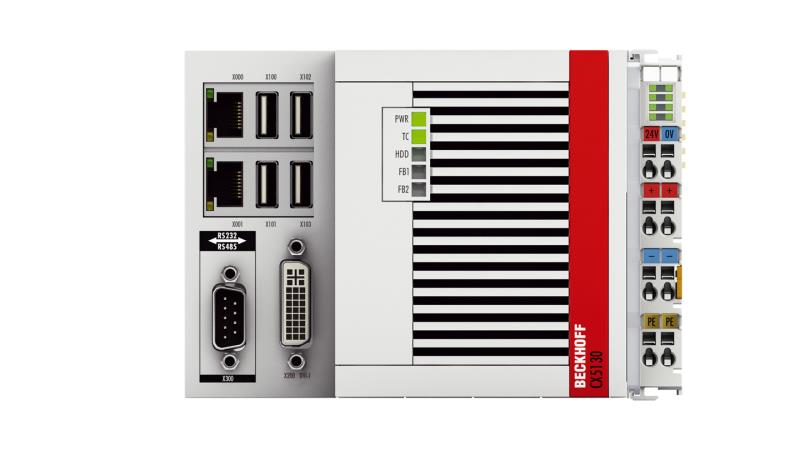

The Beckhoff CX5130-0125 is a DIN rail-mounted Industrial Embedded PC powered by an Intel Atom® E3827 dual-core 1.75 GHz processor. It includes 4 GB of onboard DDR3 RAM, dual Ethernet interfaces, and expandable storage via CFast and microSD card slots, offering a compact and efficient platform for industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Computers |
| Part Number |
CX5130-0125 |
| Subcategory |
Embedded PC |
| Mounting |
DIN rail |
| Processor |
Intel Atom® E3827 |
| Clock Speed |
1.75 GHz |
| CPU Cores |
2 (TwinCAT 3: 40) |
| Memory |
4 GB DDR3 RAM (soldered, not expandable) |
| Storage Options |
CFast card slot and microSD card slot (cards not included) |
| Ethernet Ports |
2 x RJ45 (10/100/1000 Mbit/s) |
| Display Interface |
1 x DVI-I |
| USB Ports |
4 x USB 2.0 |
| Optional Interfaces |
Expansion slot available |
| Cooling |
Passive (fanless operation) |
| Control Software |
TwinCAT 2 and TwinCAT 3 runtimes |
| Diagnostic LEDs |
Power, TC, Flash, 2x Bus status |
| Real-Time Clock |
Integrated, battery-backed |
| Power Supply |
24 V DC |
| Protection Class |
IP20 |
| Operating Temperature |
0…55°C |
| Storage Temperature |
-25…+85°C |
| Relative Humidity |
95%, non-condensing |
| Compliance |
CE, UL certified |
| Weight |
3.00 lbs (approx. 1.36 kg) |
Information About CX5130-0125
The CX5130-0125 belongs to Beckhoff’s CX5000 Embedded PC series, designed for efficient machine control and automation environments. Equipped with an Intel Atom® E3827 processor, it combines robust computing performance with energy efficiency in a compact DIN-rail housing. The unit operates passively without fans, ensuring silent operation and reduced maintenance. Integrated with 4 GB DDR3 memory and expandable flash storage options, it supports flexible data management for demanding real-time applications. With TwinCAT 2 and TwinCAT 3 compatibility, the CX5130-0125 acts as both a PLC and motion controller, integrating seamlessly into EtherCAT-based automation systems.
Key Features:
- Powerful Dual-Core Processing: Features an Intel Atom® E3827 CPU with 1.75 GHz clock speed for stable, high-performance industrial computing.
- Integrated System Memory: Includes 4 GB DDR3 RAM (non-expandable) optimized for reliable multitasking and real-time control.
- Flexible Storage Options: Offers both CFast and microSD card slots for program and data storage, supporting scalable application needs.
- Comprehensive Connectivity: Equipped with two gigabit Ethernet ports, one DVI-I display interface, and four USB 2.0 ports for flexible communication.
- TwinCAT Software Compatibility: Fully supports Beckhoff TwinCAT 2 and TwinCAT 3 runtimes for integrated PLC and motion control functionality.
- Fanless Cooling Design: Passive cooling ensures silent operation, extended lifespan, and minimal maintenance.
- Advanced Diagnostics: Includes LEDs for power, TwinCAT, flash access, and bus communication for quick troubleshooting and system monitoring.
- Compact Industrial Housing: Designed for DIN rail mounting with IP20 protection for reliable operation in control cabinets.
The CX5130-0125 delivers the reliability and precision required for automation, motion control, and distributed system applications in industrial environments.
