Description

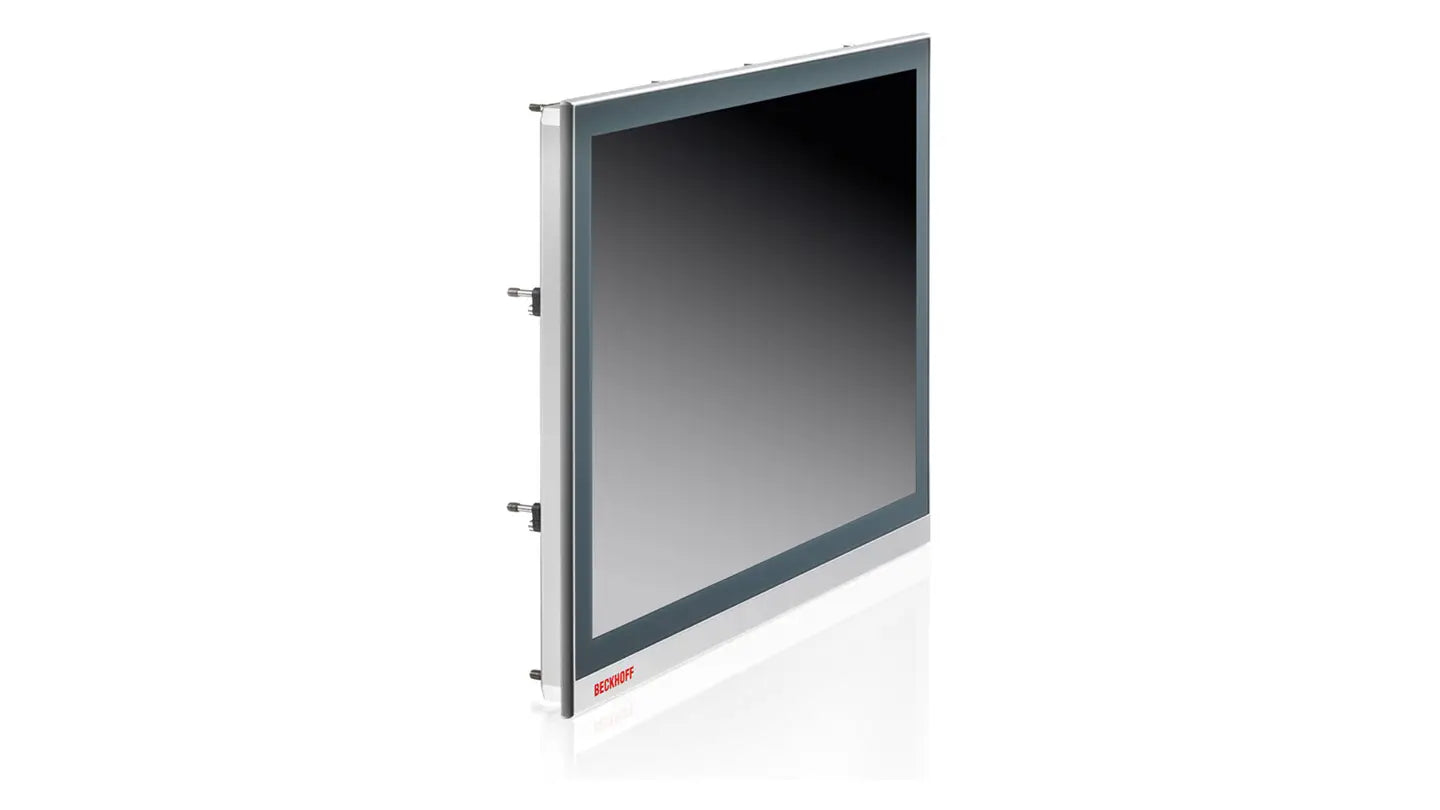

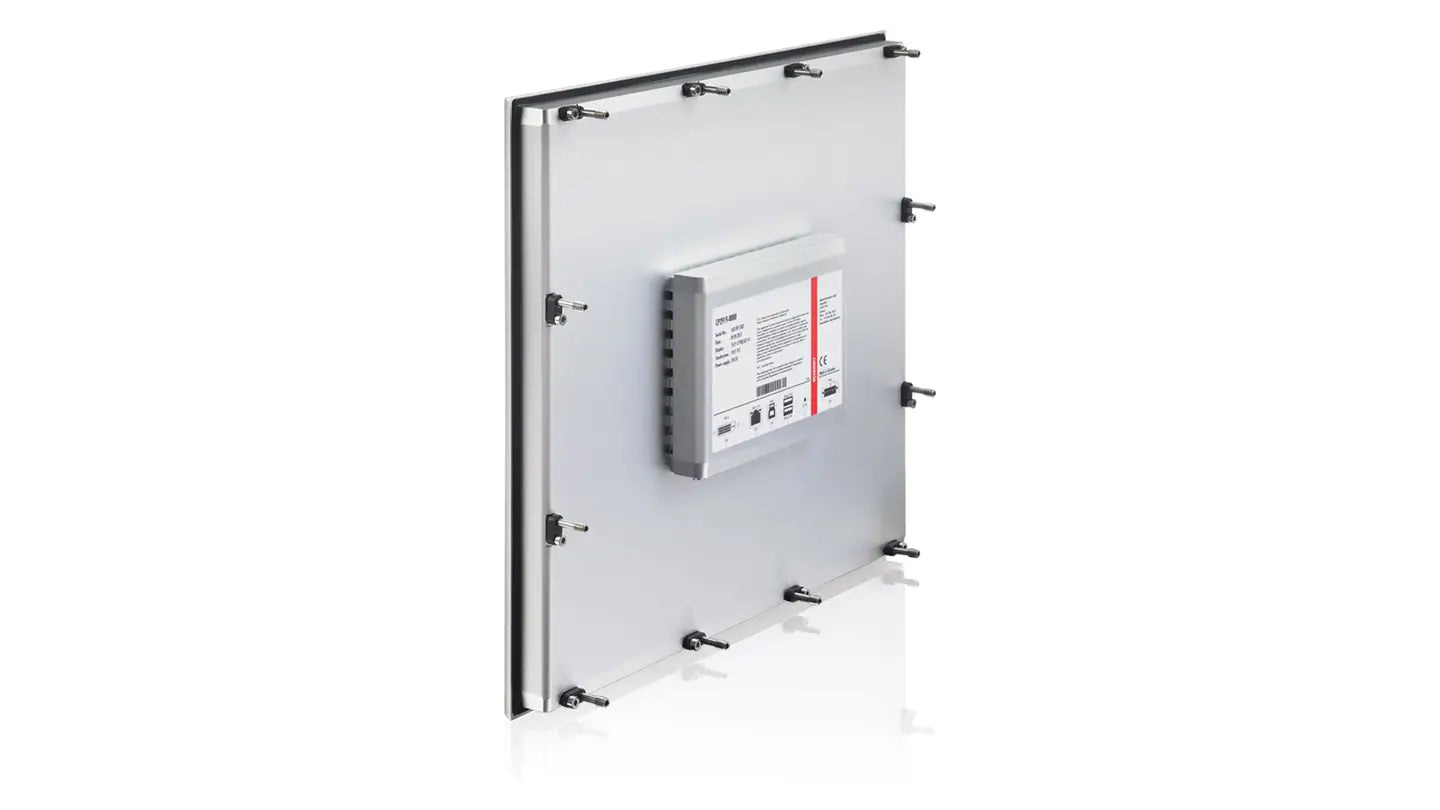

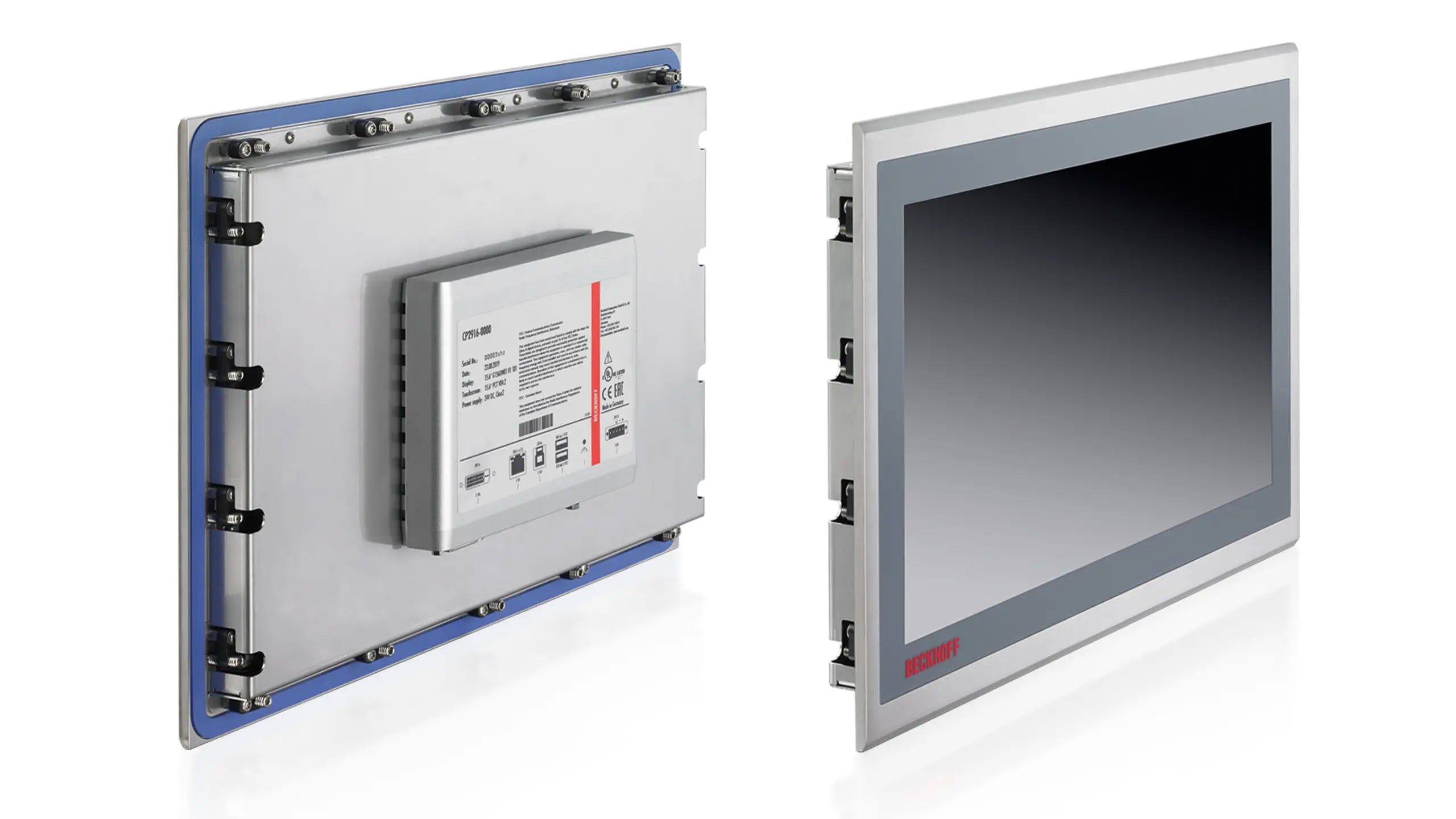

The Beckhoff CP2916-0000 is a 15.6-inch built-in multi-touch control panel with DVI/USB Extended interface for industrial operator applications. Featuring 1366 × 768 resolution, aluminum housing with glass front, and IP20/IP65 protection, it provides durable and precise visualization.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Control Panels |
| Part Number |
CP2916-0000 |
| Subcategory |
Multi-Touch Built-in Panels |
| Display Size |
15.6-inch |
| Display Resolution |
1366 × 768 pixels |
| Touch Technology |
Multi-finger touch screen |
| Display Orientation |
Vertical orientation option |
| Display Features |
Display only, multi-finger touch |
| Interface |
DVI/USB Extended; RJ45 for USB-E 2.0, 2 × USB 3.0 |
| USB Transmission Speed |
USB 2.0 with 480 Mbit/s |
| Distance to PC |
Up to 50 m |
| Installation |
Pull-out clamping levers, no loose parts |
| Power Supply |
24 V DC |
| Housing |
Aluminum housing with glass front |
| Protection Rating |
IP65 front side, IP20 rear side |
| Operating Temperature |
0…55 °C |
| Standard or Customizable |
Available in standard or customized versions |
| Dimensions |
Built-in installation design |
| Weight |
1.98 lbs |
Information About CP2916-0000
The CP2916-0000 is part of Beckhoff’s CP29xx series of multi-touch built-in control panels, offering a high-quality display solution for industrial automation environments. With a 15.6-inch widescreen display at 1366 × 768 resolution, it provides clear visualization for operator interfaces and process monitoring. The panel connects via DVI/USB Extended interface, supporting distances of up to 50 meters between the panel and the PC, ensuring flexible system layouts. Its aluminum housing with a glass front provides durability, while the IP65/IP20 protection ensures reliable operation in harsh industrial settings.
Key Features:
-
15.6-Inch Widescreen Display: Provides a 1366 × 768 resolution for sharp visualization of industrial processes.
-
Multi-Finger Touch Input: Enables advanced operator interaction through intuitive touch gestures.
-
DVI/USB Extended Connectivity: Allows connection to external PCs at distances up to 50 m with stable performance.
-
Industrial-Grade Housing: Constructed with aluminum housing and a durable glass front for long service life.
-
Flexible Mounting System: Pull-out clamping levers ensure fast and secure installation without loose parts.
-
Enhanced Interface Options: Includes RJ45 for USB-E 2.0 and 2 × USB 3.0 ports for extended connectivity.
-
Wide Protection Range: Front rated at IP65 and rear at IP20 for robust operation in industrial environments.
-
Reliable Power Supply: Operates on 24 V DC, ensuring stable integration in automation systems.
The CP2916-0000 delivers the reliability and precision required for advanced industrial visualization and multi-touch operator interface solutions.
