Description

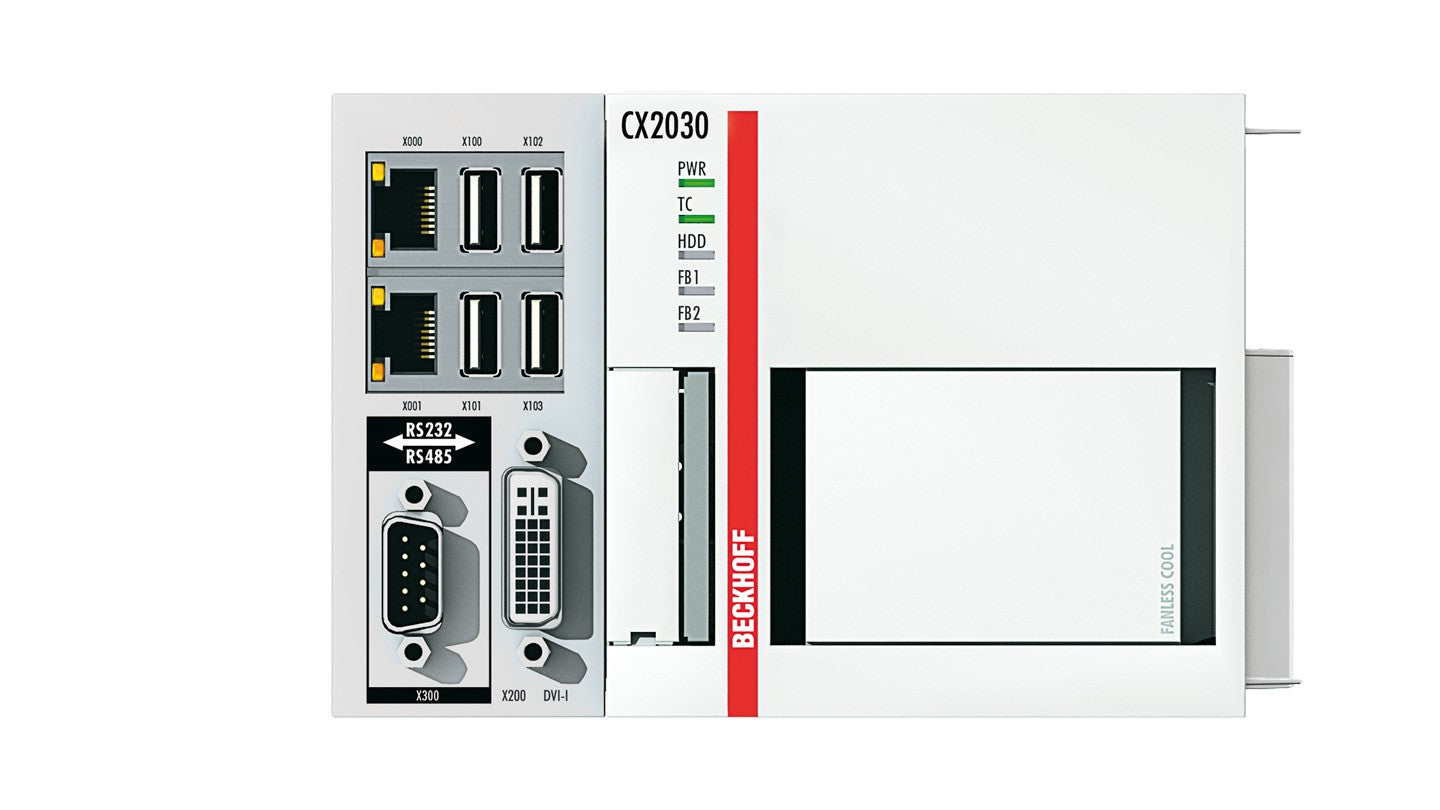

The Beckhoff CX2030-0130 Modular DIN Rail Industrial PC is a high-performance embedded controller designed for PC-based automation. Equipped with an Intel® Core™ i7 processor, it provides robust computing power in a compact housing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Control Systems |
| Part Number |
CX2030-0130 |
| Subcategory |
Modular DIN Rail Industrial PCs |
| Series |
CX2000 Series |
| Function |
Embedded industrial PC for automation and motion control |
| Processor |
Intel® Core™ i7 dual-core (model specific) |
| Clock Speed |
1.5 GHz (turbo up to 2.1 GHz, typical) |
| Memory |
4 GB DDR3 RAM (expandable) |
| Storage Options |
CFast card or SSD (configuration dependent) |
| Operating System |
Windows Embedded Standard or TwinCAT/BSD |
| Communication Interfaces |
2 × Ethernet, USB, DVI/DisplayPort, optional fieldbus modules |
| Expansion Capability |
Supports EtherCAT Terminals and Bus Terminals |
| Power Supply |
24 V DC |
| Cooling Method |
Fanless, convection cooled |
| Housing Material |
Industrial-grade aluminum/plastic enclosure |
| Protection Rating |
IP20 |
| Operating Temperature |
0°C to +55°C |
| Mounting Type |
DIN-rail |
| Certifications |
CE, UL, international compliance |
| Applications |
Robotics, CNC, packaging, distributed automation, process control |
| Weight |
Approx. 1.0 kg |
Information About CX2030-0130
The CX2030-0130 is part of Beckhoff’s CX2000 Series, a family of modular embedded PCs for DIN rail mounting. It integrates CPU, memory, and communication interfaces in a fanless, compact enclosure, with expansion options for fieldbus and I/O modules. Supporting TwinCAT 3 software, the unit functions as both a PLC and motion controller, enabling deterministic control over EtherCAT networks. The CX2030-0130 is widely applied in robotics, CNC machinery, packaging, and distributed automation systems where high-performance and scalability are required.
Key Features:
- High-Performance Embedded PC: Powered by Intel® Core™ i7 dual-core processor.
- Modular DIN Rail Design: Compact housing allows direct control cabinet installation.
- EtherCAT Integration: Native support for high-speed deterministic communication.
- TwinCAT 3 Compatibility: Operates as a PLC, motion controller, and visualization system.
- Expandable Architecture: Supports optional fieldbus and I/O modules.
- Fanless Operation: Rugged, convection-cooled design for industrial environments.
- Multiple Interfaces: Includes Ethernet, USB, and DVI/DisplayPort connections.
- Wide Application Range: Suitable for robotics, CNC, packaging, and motion systems.
The CX2030-0130 delivers the reliability and precision required for advanced industrial automation and motion control.
