Description

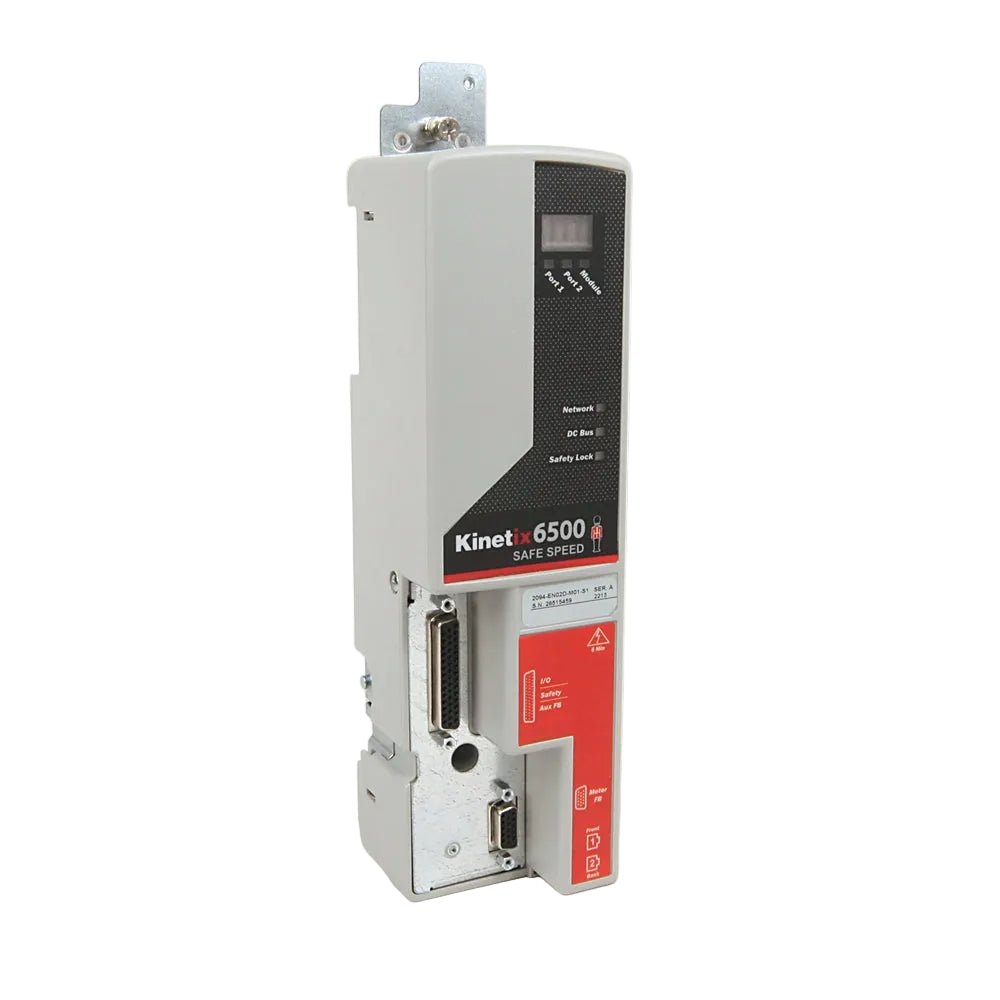

The Allen-Bradley 2094-EN02D-M01-S1 is a Kinetix 6500 EtherNet/IP Safe Speed Control Module, designed to enable advanced safe speed monitoring and safe motion control functions over EtherNet/IP. This control module enhances machine safety without compromising performance, integrating critical I/O, safety, and feedback connections within one powerful unit.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
2094-EN02D-M01-S1
|
| Subcatecory |
|
| Series |
Kinetix 6500 |
| Network Type |
EtherNet/IP |
Ethernet Ports
|
2 |
| Input Voltage Range |
2.5–24 VDC |
| Input Current |
1.36 A |
| Output Voltage Range |
5–24 VDC |
| Output Current |
1.35 A |
| Status Indicators |
DC-Bus, Network, Module, Port 1 & 2 |
| I/O Interface |
IOD Connector for I/O, Safety, and Aux Feedback |
| Weight |
0.45 kgs |
Information About 2094-EN02D-M01-S1
The 2094-EN02D-M01-S1 belongs to the Kinetix 6500 servo drive system, offering integrated functional safety with EtherNet/IP networking. With dual Ethernet ports and dedicated connectors for I/O, safety circuits, and motor feedback, it simplifies high-integrity motion control in safety-rated applications.
Key Features:
-
Safe Speed Monitoring (S1 Variant): Enables safety functions like Safe Stop, Safe Speed, and Safe Direction.
-
EtherNet/IP Dual-Port Networking: Seamless integration into safety-rated networked motion systems.
-
Status Indicators: Visual diagnostics for power, module status, network status, and ports.
-
IOD and MF Connectors: Simplify wiring of I/O, safety signals, and motor feedback.
-
Wide Voltage Range: 2.5–24V DC input and 5–24V DC output support for flexible applications.
-
Compact & High-Performance: Designed to meet SIL 3 / PLe safety standards when used in certified systems.
The 2094-EN02D-M01-S1 delivers safe motion control in demanding industrial automation environments, ensuring operator safety while maintaining machine productivity.
