Description

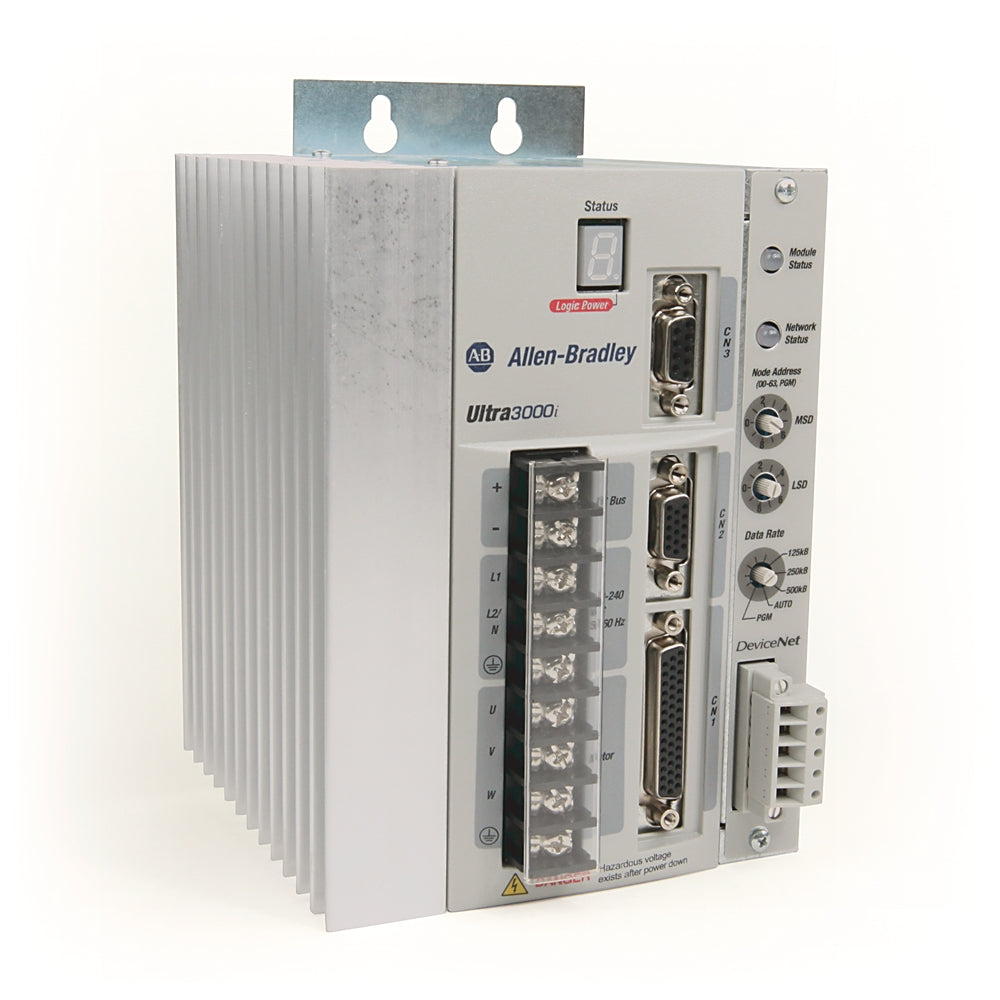

​The Allen-Bradley 2098-DSD-010X-DN is a 1 kW Ultra3000 Digital Servo Drive designed for precise motion control in industrial applications. Operating on a single-phase 100-240V AC input at 47-63 Hz, it delivers a continuous output current of 3.5 A RMS and a peak output current of 10.6 A RMS.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Drives
Part Number	2098-DSD-010X-DN
Subcategory	Servo Drives & Controls
Series	Ultra 3000 Drives
Output Current (Intermittent)	15 Amps (0-peak)
Output Current (Continuous)	5 Amps (0-peak)
Nominal Input Current (AC)	9 Amps Root Means Square
Input Frequency (AC)	47-63 Hz
Input Voltage (AC)	100-240 Voltage Root Means Square (Single Phase)
Bus Overvoltage	400 Volts DC
Cable Entry	Knockouts
Mounting Type	Surface
Weight	2.27 kgs





Information About 2098-DSD-010X-DN

The Allen-Bradley 2098-DSD-010X-DN is a 1 kW Ultra3000 Digital Servo Drive designed for precise motion control in industrial applications. It operates on a single-phase 100-240V AC input at 47-63 Hz, delivering a continuous output current of 3.5 A RMS and a peak output current of 10.5 A RMS. This model features DeviceNet communication and indexing capabilities, facilitating seamless integration into various automation systems.

Key Features:

• Input Voltage: 100-240V AC (single-phase)

• Input Frequency: 47-63 Hz

• Continuous Output Current: 3.5 A RMS

• Peak Output Current: 10.5 A RMS

• Communication Interface: DeviceNet

• Indexing Capability: Supports basic stand-alone control functions

• Dimensions: 198.12 mm (7.8 in) height, 144.27 mm (5.68 in) width, 121.54 mm (4.79 in) depth

The Ultra3000 series is known for its high performance and flexibility, making it suitable for various machine control architectures. The 2098-DSD-010X-DN model, with its DeviceNet interface and indexing features, adds basic stand-alone control capability to the Ultra3000 feature set, enhancing its versatility in industrial applications.
