Description

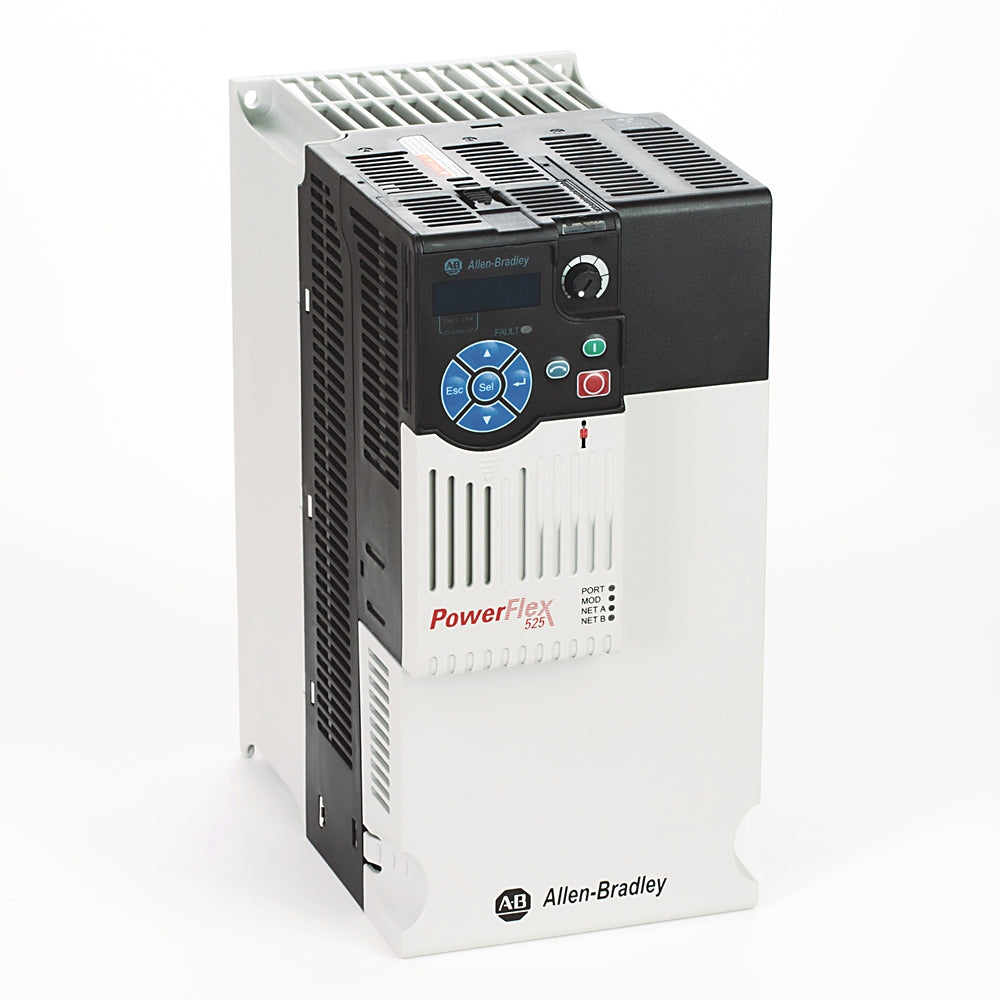

The Allen-Bradley 25B‑B062N104 is a 240 VAC, 3-phase PowerFlex 525 AC adjustable-frequency drive featuring embedded Ethernet/IP and safety functions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Drives |
| Part Number |
25B-B062N104
|
| Subcategory |
Drives |
|
Series
|
PowerFlex 525 Drive |
| Voltage |
Three Phase, 240V AC |
| Enclosure Type |
IP20 NEMA / Open Type |
| Interface Module |
Standard |
| Frame Size |
Frame E |
| Current / Power Rating |
62.1 Amps20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty |
| Weight |
12.00 lbs |
Information About 25B-B062N104
The Allen‑Bradley 25B‑B062N104 is a PowerFlex 525 AC variable-frequency drive designed for demanding industrial motor control applications.
Key Features:
-
Series: PowerFlex 525
-
Input Voltage: 200–240 VAC, 3-phase
-
Output Current: 62.1 A
-
Power Rating:
-
Frame & Enclosure: Frame E, IP20 (open-type)
-
Communications: Built-in EtherNet/IP, USB, and DSI/RS‑485
-
Safety Feature: Integrated Safe Torque Off (STO)
-
Control Modes: V/Hz, Sensorless Vector, Closed-loop Velocity Vector, Permanent Magnet motor control
-
Cooling: Internal fan-cooled; supports panel or DIN-rail mounting
-
Dimensions: Approx. 185 × 300 × 279 mm
-
Certifications & Compliance: UL/NEMA open type, meets safety and EMC standards
Widely used in networked industrial systems, this drive offers modular setup, advanced motor control, and built-in safety and communication capabilities. It's active and supported, ideal for modernizing control panels and optimizing motor-driven equipment.
