Description

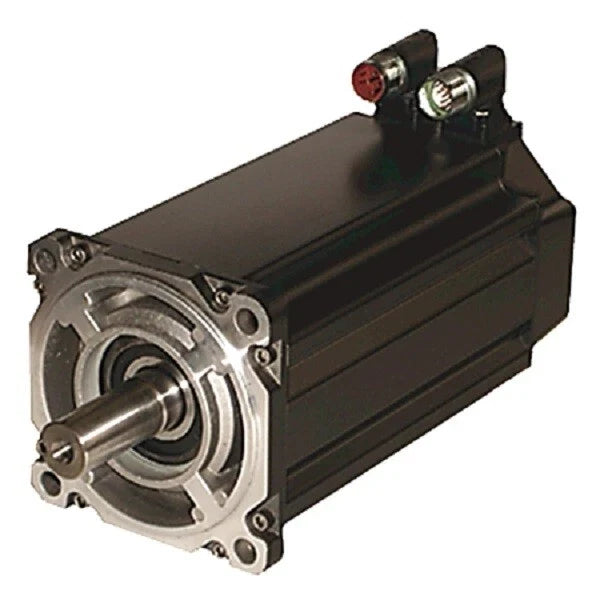

The Allen-Bradley MPL-A430P-SJ72AA is a high-performance rotary servo motor from the MP Series Low Inertia family, designed for precise motion control applications. With a rated power of 2.2 kW and integrated high-resolution single-turn encoder, it delivers smooth and efficient operation in demanding automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
MPL-A430P-SJ72AA |
| Subcatecory |
|
| Product Family |
MP Series Low Inertia servo motors |
| Voltage |
230VAC |
| Torque Rating |
5.99 NM |
| Rated Power |
2.2 kW |
| Output Current |
16.8 Amperes |
| Encoder |
1024 sin/cos, absolute single-turn encoder (Hiperface protocol) |
| Stack Length |
76.2 mm (3.0 in.) |
| Mounting Holes |
Type FF |
| Series |
MP |
| Series Type |
Low Inertia |
| Voltage Class |
200V |
| Magnetic Stack Length |
3 in. |
| Rated Speed |
5000 rpm |
| Feedback |
Single-turn High-resolution Encoder |
Information About MPL-A430P-SJ72AA
The MPL-A430P-SJ72AA belongs to Allen-Bradley’s MP Series Low Inertia servo motors, offering high torque density and dynamic response for precision control. Designed for systems operating at 230 VAC, this model supports a rated speed of 5000 rpm and delivers a torque output of 5.99 Nm, making it suitable for fast-moving, high-performance machine axes.
Key Features:
- Motor Type: MP Series rotary servo motor with low inertia design
- Voltage Rating: 230 VAC for 200V class systems
- Rated Power: 2.2 kW output for high-demand applications
- Torque Output: Continuous torque of 5.99 Nm for dynamic motion
- Speed Rating: 5000 rpm rated speed for fast-response performance
- Encoder Feedback: 1024 sin/cos high-resolution single-turn encoder (Hiperface protocol)
- Mounting Style: Type FF mounting holes for easy system integration
- Stack Length: 76.2 mm (3.0 in.) magnetic stack length
- Current Rating: 16.8 A output current for stable power delivery
- Application: Ideal for motion systems requiring fast acceleration and high control precision
The MPL-A430P-SJ72AA delivers precise, reliable, and efficient motion control in a compact low-inertia design for demanding servo-driven applications.
