Description

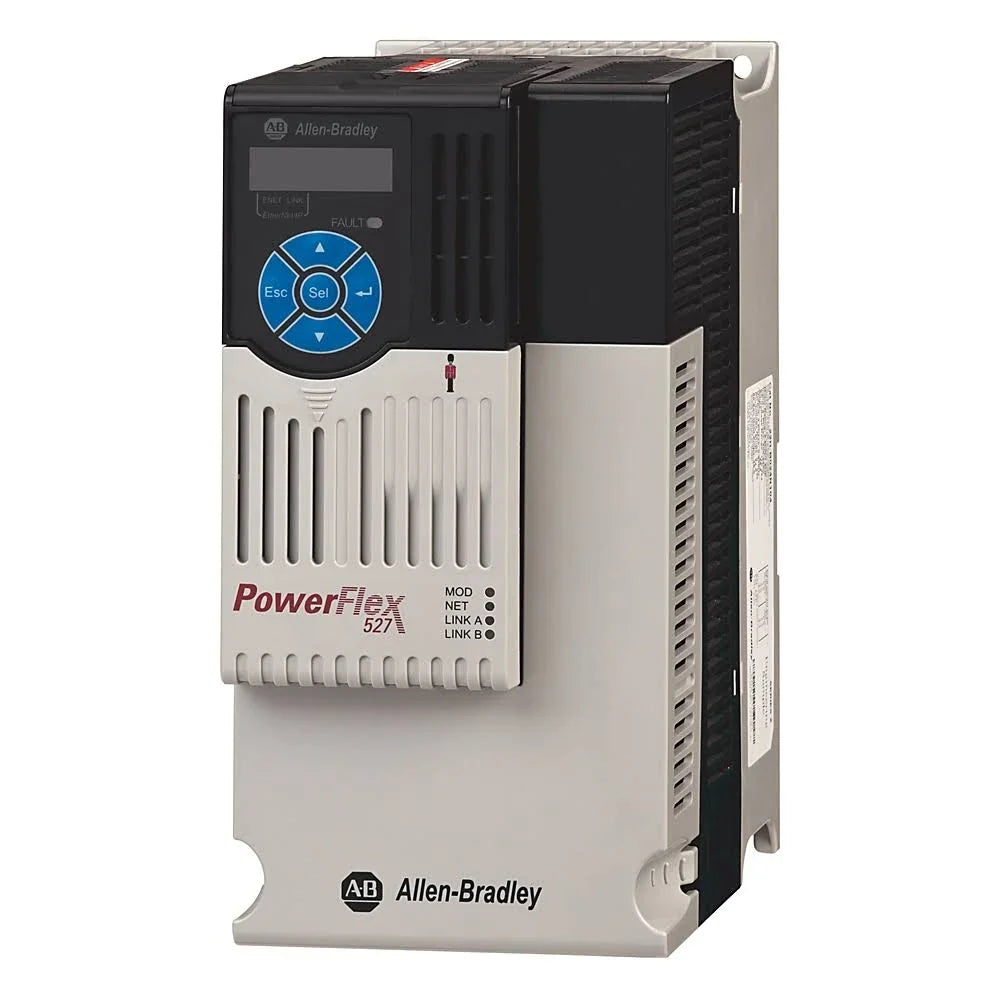

The Allen-Bradley 25C-D013N104 is a PowerFlex 527 adjustable frequency AC drive, designed for precise speed and torque control in industrial motor control applications. With robust features and integrated EtherNet/IP connectivity, this drive delivers reliable performance for demanding automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
25C-D013N104
|
| Subcategory |
Drive |
| Series |
PowerFlex 527 |
| Voltage Class |
480 AC Volts |
| Output Current |
13 Amperes |
| Frame Size |
C |
| Enclosure Type |
IP20 NEMA (Open) |
| EMC Filtering Option |
No |
| Phase Count |
Three |
| Horsepower |
7.5 |
| Communication |
EtherNet IP (Dual Port) |
| Temperature Rating |
-20°C to 50°C |
| Weight |
5.8100 lb |
Information About 25C-D013N104
The 25C-D013N104 is part of the PowerFlex 527 series, operating with a voltage class of 480 VAC. It supports a 3-phase input voltage range of 380-480 VAC and provides a 3-phase output voltage range of 0-460 VAC, making it highly versatile for industrial installations. The drive delivers a continuous output current of 13 A, corresponding to a power rating of 5.5 kW (7.5 HP) for both normal and heavy-duty applications. It features a Size C frame and an open IP20/NEMA enclosure type, making it suitable for panel mounting in industrial control systems.
Key Features:
- Voltage Class: Operates at 480 VAC, supporting a wide input voltage range of 380-480 VAC, ensuring compatibility with various industrial power supplies.
- Output Current: Provides a continuous output current of 13 A, delivering reliable power to motors in both normal and heavy-duty applications.
- Power Rating: Capable of delivering 5.5 kW (7.5 HP), making it suitable for a wide range of industrial motor control tasks.
- Frame Size C: Compact form factor simplifies installation in control panels, supporting high-density mounting without compromising performance.
- Integrated Motion Control: Supports integrated motion applications using EtherNet/IP connectivity, facilitating easy communication with PLCs and other automation devices.
- Dual-Port EtherNet/IP: Enables flexible network architectures with support for device-level ring, star, and linear topologies, enhancing system redundancy and connectivity.
- Enclosure Type: Features an IP20/NEMA open-type enclosure, suitable for panel mounting in clean industrial environments.
- Temperature Rating: Operates reliably in temperatures ranging from -20°C to 50°C, ensuring consistent performance in various industrial settings.
The 25C-D013N104 PowerFlex 527 AC drive offers robust and reliable performance with integrated communication capabilities, making it a top choice for modern industrial automation systems.
