Description

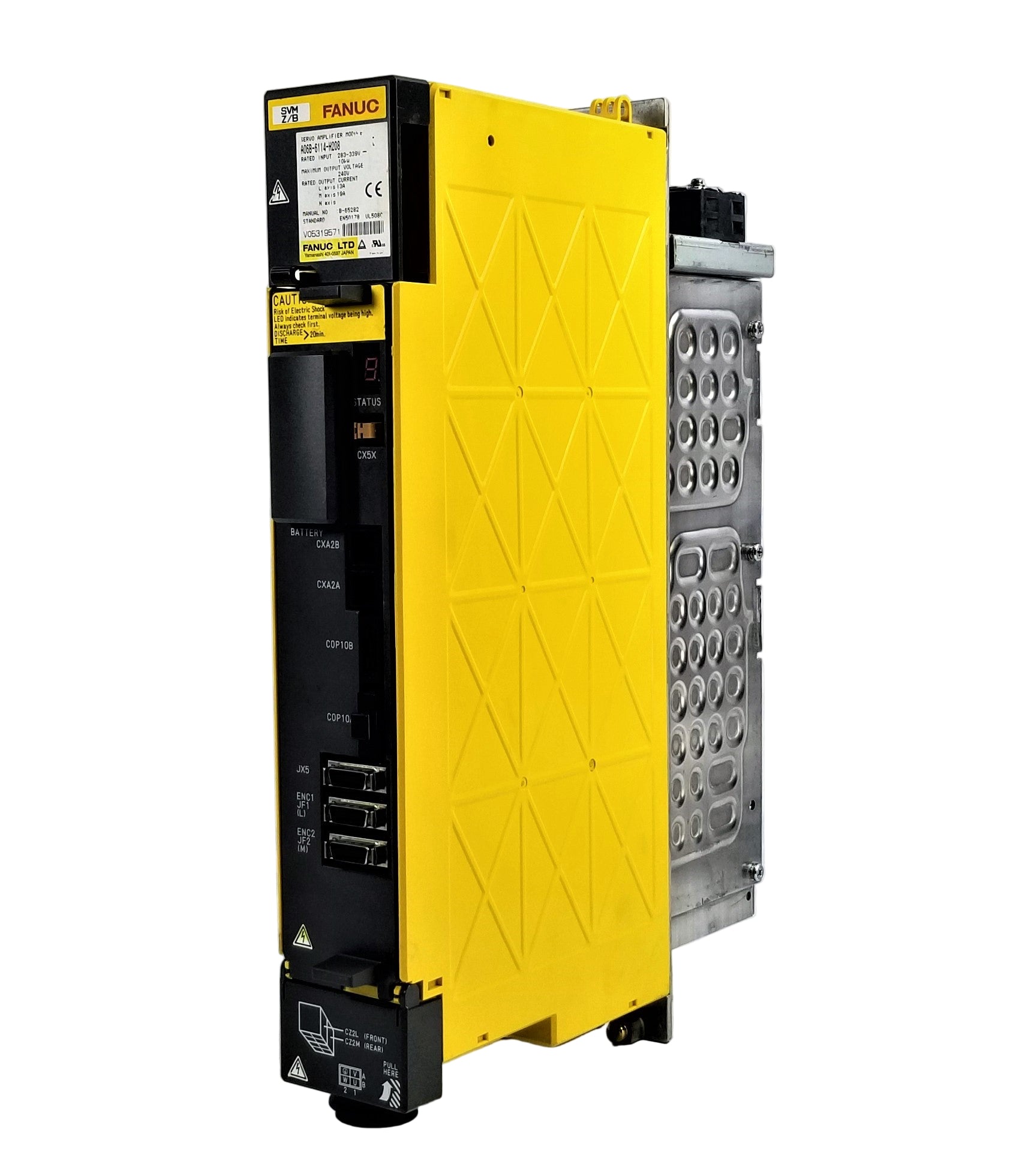

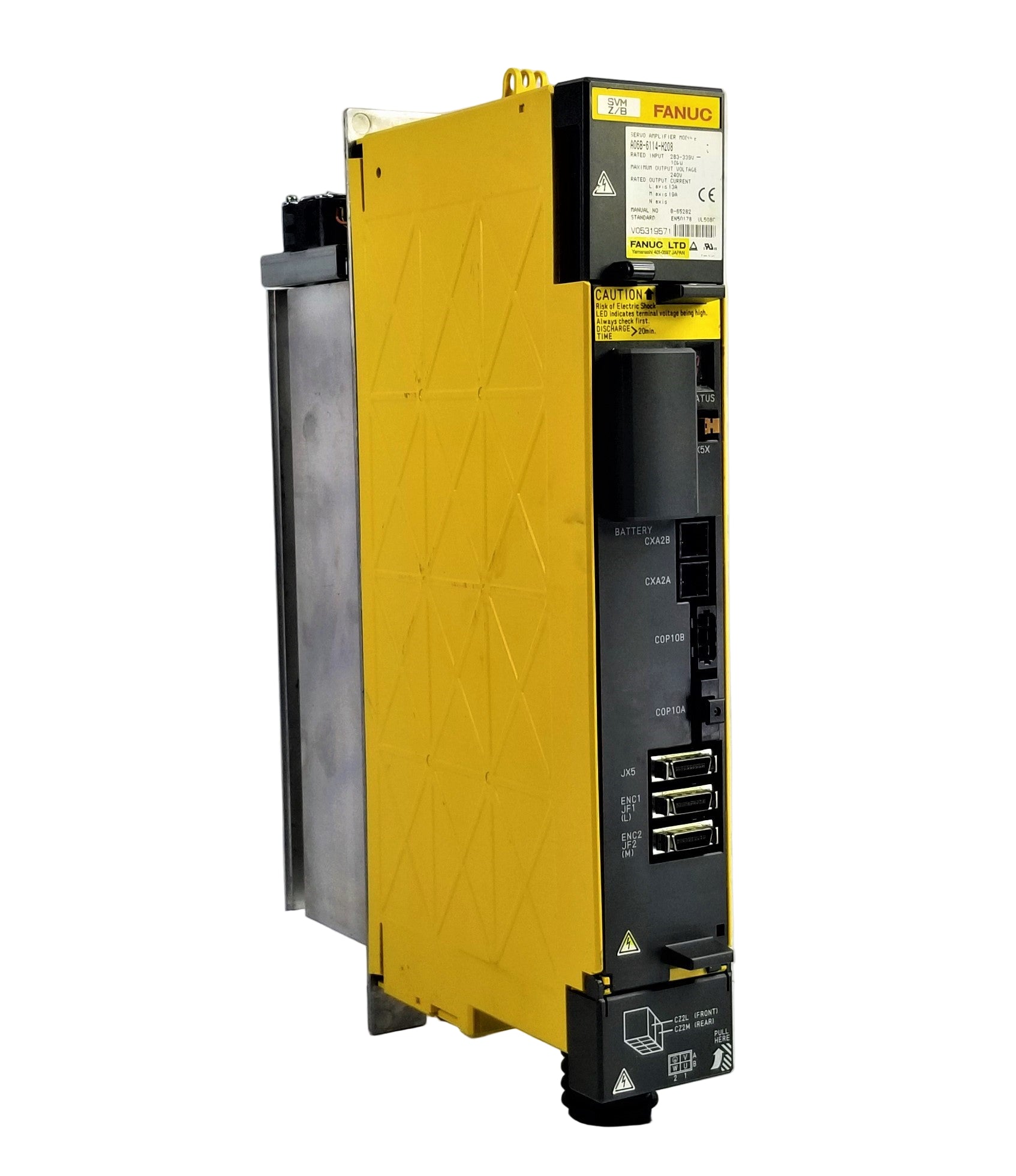

The FANUC A06B-6114-H208 is a dual-axis Alpha i servo amplifier module, model SVM2-40/80i, engineered for precision CNC motion control. Operating at 283–339V input with a 10 kW power rating, it delivers stable current regulation for two servo axes in high-performance industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Servo Products |
| Part Number |
A06B-6114-H208 |
| Subcategory |
Servo Drive/Servo Control |
| Model |
Alpha i SVM2-40/80i |
| Type |
Dual-Axis Servo Amplifier Module |
| Rated Input Voltage |
283–339 V AC |
| Power Rating |
10 kW |
| Maximum Output Voltage |
240 V AC |
| Rated Output Current |
L-axis: 13 A / M-axis: 19 A |
| Number of Axes |
2 |
| Frequency |
50/60 Hz |
| Cooling Method |
Forced-air cooling (integrated fan) |
| Mounting |
Rack/Panel mount |
| Application |
CNC machine tools, milling, turning, automation |
| Control Technology |
Digital servo regulation |
| Status |
Discontinued by manufacturer |
| Manual Reference |
B-65282 |
| Country of Origin |
Japan |
| Weight |
11.95 lbs (approx.) |
Information About A06B-6114-H208
The A06B-6114-H208 belongs to FANUC’s Alpha i servo drive series and is designed to control dual-axis CNC motion systems. Supporting L-axis and M-axis outputs, this module provides rated output currents of 13 A and 19 A respectively, ensuring reliable torque and speed regulation. Built with FANUC’s advanced digital servo technology, it enhances efficiency and motion precision for machining centers, milling, and automation equipment. Its compact, rack-mounted design and robust construction make it suitable for continuous operation in demanding environments. The unit interfaces seamlessly with FANUC CNC controllers and follows the specifications outlined in manual B-65282.
Key Features:
- Dual-Axis Servo Control: Drives two axes simultaneously for CNC precision.
- Alpha i Series: Part of FANUC’s advanced servo amplifier lineup.
- Rated Input: Operates within 283–339V range for industrial power systems.
- Power Rating: 10 kW output for demanding machining applications.
- Current Ratings: L-axis at 13 A and M-axis at 19 A output current.
- Output Voltage: Delivers a regulated maximum of 240V AC.
- CNC Compatibility: Interfaces with FANUC CNC controllers for seamless integration.
- Discontinued Model: Legacy part still critical for maintaining Alpha i CNC systems.
The A06B-6114-H208 delivers the reliability and precision required for CNC machining centers and industrial automation systems.
