Description

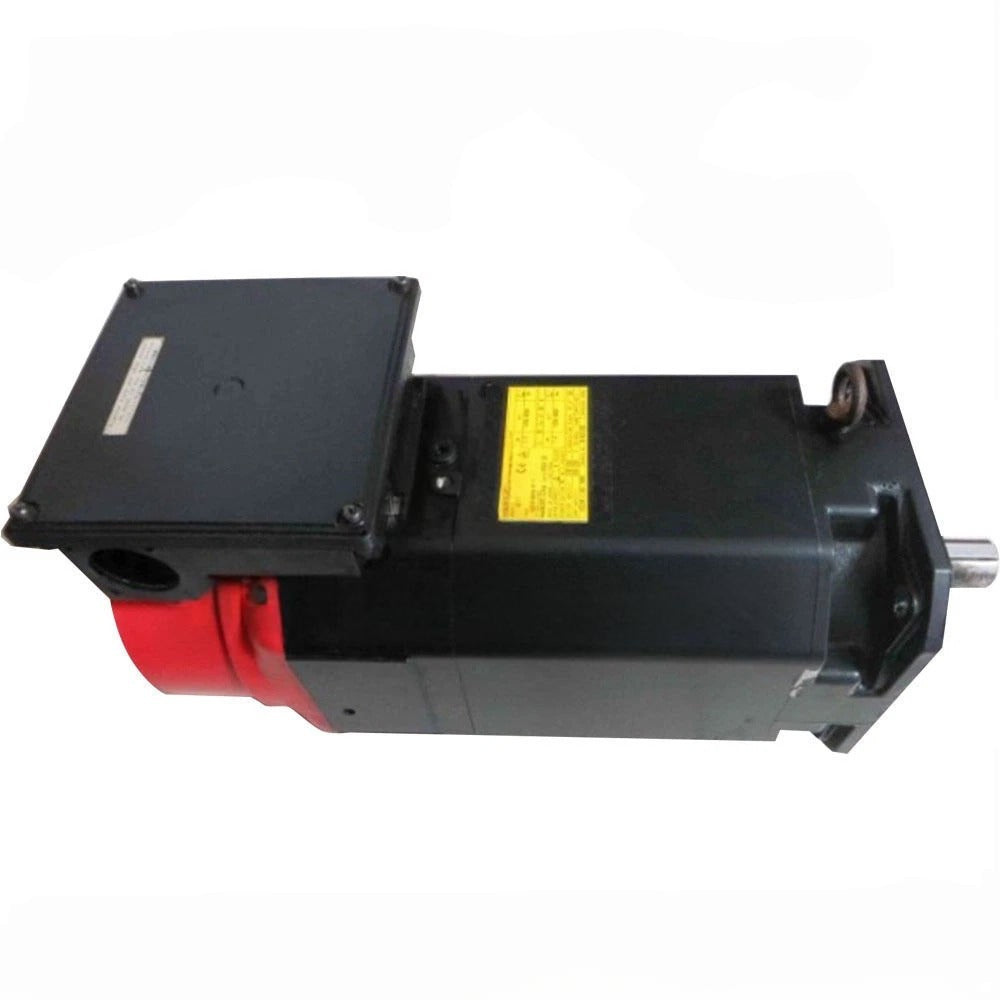

The FANUC A06B-0854-B100 is an AC spindle motor model A6 designed for CNC machining operations. With a flange mount design, 5.5 kW output, and 3-phase input of 135–222V at 50/60 Hz, it ensures high-performance spindle drive capability for precision machine tools.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Servo Products |
| Part Number |
A06B-0854-B100 |
| Subcategory |
Servo Motor |
| Motor Type |
AC Spindle Motor |
| Model |
A6 |
| Mounting Type |
A6 Flange |
| Rated Output Power |
5.5 kW |
| Input Voltage Range |
135–222 V AC |
| Input Current |
Up to 36 A |
| Frequency |
50/60 Hz |
| Phase |
3-Phase |
| Number of Poles |
4 |
| Application |
CNC machining, spindle drive |
| Cooling Method |
External fan/forced air (system integrated) |
| Insulation Class |
F (155°C max) |
| Duty Cycle |
Continuous |
| Origin |
Japan |
| Standards Compliance |
IEC60034-1 |
| Weight |
72 lbs (approx.) |
Information About A06B-0854-B100
The A06B-0854-B100 is a spindle motor from FANUC’s A06B series, developed for use in CNC machining centers and automated production lines. Featuring a 4-pole design and A6 flange mount, it delivers stable operation across a broad input voltage range. The motor operates at a rated power of 5.5 kW with a current input up to 36A, making it suitable for demanding spindle applications. Built with robust construction and precision engineering, it provides reliable performance in continuous-duty environments, ensuring consistent machining accuracy.
Key Features:
- Spindle Motor Model A6: Designed specifically for CNC spindle drive applications.
- Rated Output: 5.5 kW continuous power for heavy-duty machining.
- Voltage Range: Operates at 135–222V AC input for flexibility across systems.
- Current Capacity: Rated for up to 36A input at 3-phase supply.
- Frequency Compatibility: Supports both 50 Hz and 60 Hz operation.
- 4-Pole Motor: Ensures balanced torque delivery and smooth spindle performance.
- Mounting Design: A6 flange mount for secure installation in CNC systems.
- FANUC Reliability: Engineered for durability in industrial environments.
The A06B-0854-B100 delivers the reliability and spindle performance required for precision CNC machining operations.
