Description

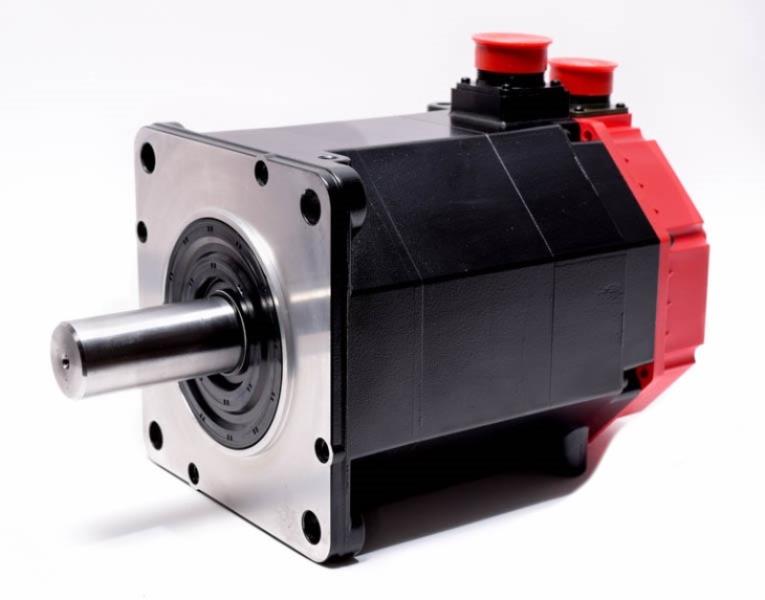

The FANUC A06B-0141-B075 is a 1 kW AC servo motor from the C12/2000 series, designed for CNC and industrial automation systems. Operating at 2000 RPM with a taper shaft and IP65 protection, it provides reliable power, efficiency, and durability in demanding environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Servo Products |
| Part Number |
A06B-0141-B075 |
| Subcategory |
Servo Motor |
| Motor Model |
C12/2000 |
| Motor Type |
AC Servo Motor |
| Output Power |
1 kW |
| Rated Speed |
2000 RPM |
| Shaft Type |
Taper shaft |
| Rated Voltage |
257 V |
| Input Voltage Range |
200–230 V AC |
| Rated Current |
2.5 A |
| Frequency |
133 Hz (operating) / 50–60 Hz (input) |
| Phase |
3-Phase |
| Power Factor |
0.97 |
| Insulation Class |
F (max 155 °C) |
| Protection Rating |
IP65 |
| Cooling Method |
Self-cooled / system airflow |
| Application |
CNC machinery, robotics, industrial automation |
| Documentation |
Manual B-65142E |
| Status |
Discontinued by manufacturer |
| Weight |
42 lbs (approx.) |
Information About A06B-0141-B075
The A06B-0141-B075 belongs to FANUC’s AC servo motor line, engineered for precision control in CNC machining and robotics. With a rated voltage of 257 V, frequency of 133 Hz, and 3-phase input of 200–230 V, it delivers stable performance in a wide range of industrial setups. The motor is built with insulation class F for high thermal endurance and incorporates a power factor of 0.97 for efficient energy use. Designed with an IP65 enclosure, the motor is resistant to dust and water ingress, ensuring long-term reliability in harsh production environments.
Key Features:
- Rated Output: 1 kW continuous power for CNC and automation.
- Speed Performance: Operates at 2000 RPM for precision motion tasks.
- Voltage Range: Rated at 257 V with input compatibility from 200–230 V AC.
- High Efficiency: Power factor of 0.97 for reduced energy losses.
- Robust Protection: IP65 enclosure safeguards against dust and water.
- Insulation Class F: Thermal durability up to 155 °C for continuous duty.
- Taper Shaft Design: Secure mechanical fit for industrial machine integration.
- Documentation Support: Includes detailed technical manual (B-65142E) for operation and maintenance.
The A06B-0141-B075 delivers the reliability and efficiency required for CNC machining, robotics, and factory automation systems.
