Description

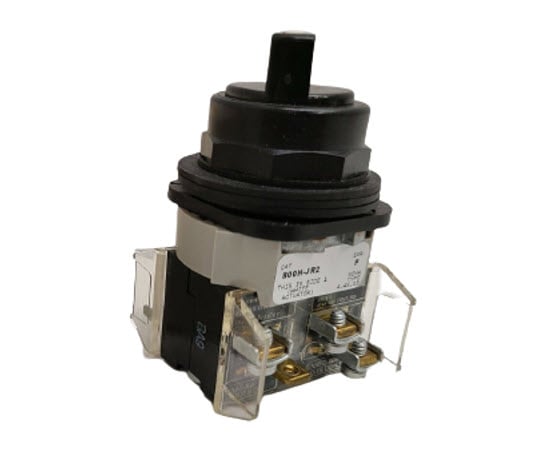

The Allen-Bradley 800H-JR2B is a heavy-duty 30.5 mm maintained selector switch designed for industrial control applications. Featuring a 3-position actuator with 2 NO and 2 NC contact blocks, it offers durable performance with NEMA 4/4X/13 protection and screw terminal connections for reliable operator interface solutions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800H-JR2B |
| Subcatecory |
|
| Actuator |
3 Position |
| Contact Configuration |
2 NO, 2 NC |
| Number of Positions |
3 |
| Size |
30.5 mm |
| Voltage Rating |
120 Volt |
| Terminal Type |
Screw Terminals |
| Environmental Rating |
NEMA 4, 4X, 13 |
| Certifications |
C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL |
| Color |
Black |
| Weight |
0.3500 lb |
Information About 800H-JR2B
The 800H-JR2B is part of Allen-Bradley’s 800H series, known for robust construction and suitability in harsh environments. This 3-position maintained selector switch allows manual control across three fixed positions and includes a total of four contacts—two normally open (NO) and two normally closed (NC)—for flexible circuit design.
Key Features:
- Type: 30 mm maintained selector switch for manual control in automation systems
- Actuator Style: 3-position selector for multi-state circuit control
- Contact Configuration: 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Voltage Rating: Rated for 120 Volts AC operation
- Size: 30.5 mm operator size for compatibility with standard panel cutouts
- Terminal Type: Screw terminals for secure and straightforward wiring
- Environmental Rating: NEMA 4, 4X, and 13 for indoor/outdoor and corrosive environments
- Certifications: CE, UL, CUL, CSA, KC, MARINE, C-TICK, CCC for global compliance
- Application: Suitable for use in control stations, motor starters, and equipment interfaces
The 800H-JR2B provides reliable three-position selector functionality in a rugged, environmentally protected package, ideal for harsh industrial and marine applications.
