Description

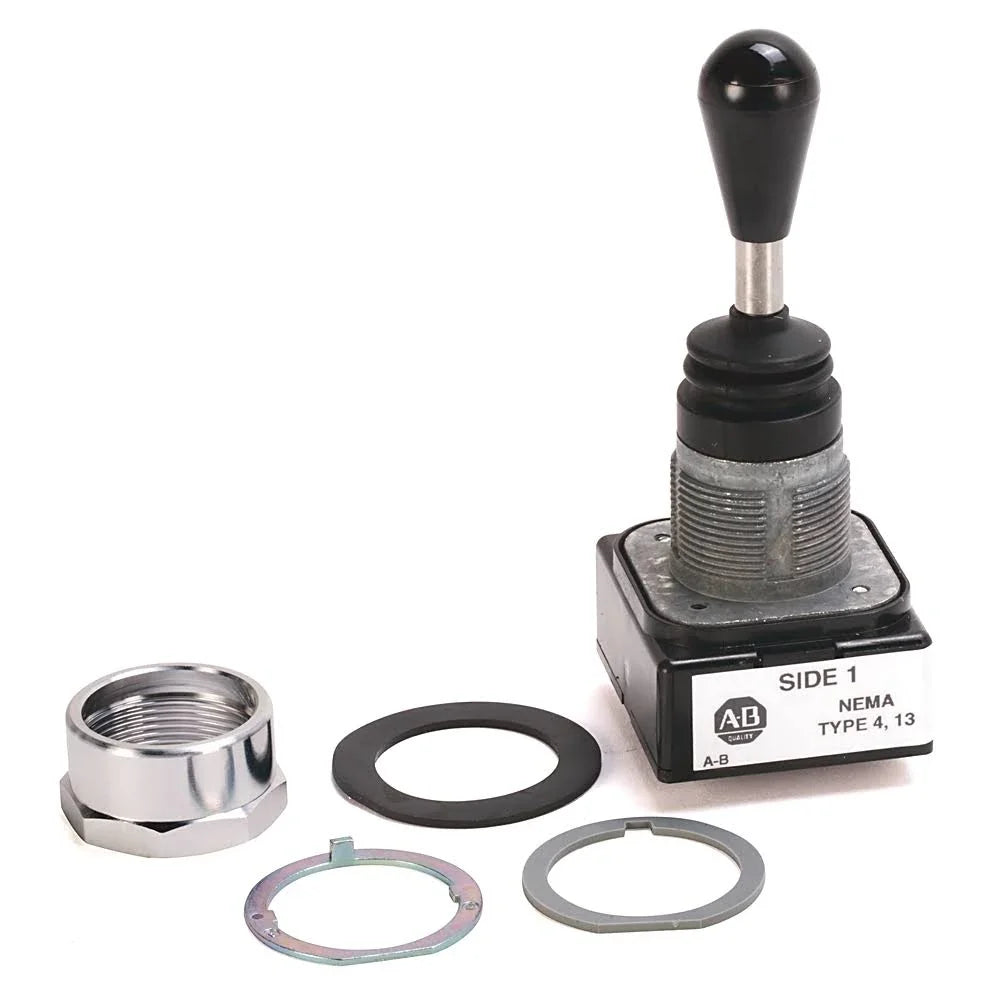

The Allen-Bradley 800T-T2H3 is a robust 30 mm toggle switch designed for industrial control panels, delivering reliable manual on/off operation with enhanced operator feedback.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Pilot Devices |
| Part Number |
800T-T2H3
|
| Subcategory |
Toggle Switch |
|
Action
|
Momentary |
| Contact Configuration |
No Contact Blocks,No Contact Blocks,No Contact Blocks,No Contact Blocks |
| Standard |
CCC,CE,CSA,CUL,KC,MARINE,UL |
| Actuator |
Switch Position Knob |
| Operator Type |
Two Way Toggle |
| Type |
2-Position |
| MTG Hole Size |
30.5mm MTG. HOLE |
| Weight |
0.40 lbs |
Information About 800T-T2H3
The Allen‑Bradley 800T‑T2H3 is a heavy-duty, metal-housed 30 mm toggle switch designed for industrial control panels, offering a reliable up/down spring-return action.
Key Features:
-
Operator Type: 30 mm, two-way toggle actuator with spring return (up/down)
-
Contact Configuration: No contact blocks included by default (operator-only)
-
Housing Material: Zinc alloy operator bushing with thermoplastic polyester resin cap
-
Mechanical Service Life: 200,000 cycles minimum
-
Electrical Life (with proper contact blocks): Up to 1,000,000 operations
-
Operating Temperature: –40 °C to +55 °C
-
Ingress Protection: IP65 and IP66 rated
-
Shock & Vibration Resistance:
-
Certifications: UL 508, CSA C22.2 No. 14, CE, CCC, EAC, GOST
-
Mounting Hole Diameter: 30.5 mm with threaded bezel
Built for resilience, the 800T‑T2H3 delivers reliable performance in harsh environments with high mechanical endurance, strong ingress protection, and robust materials—making it ideal for rugged industrial applications.
