Description

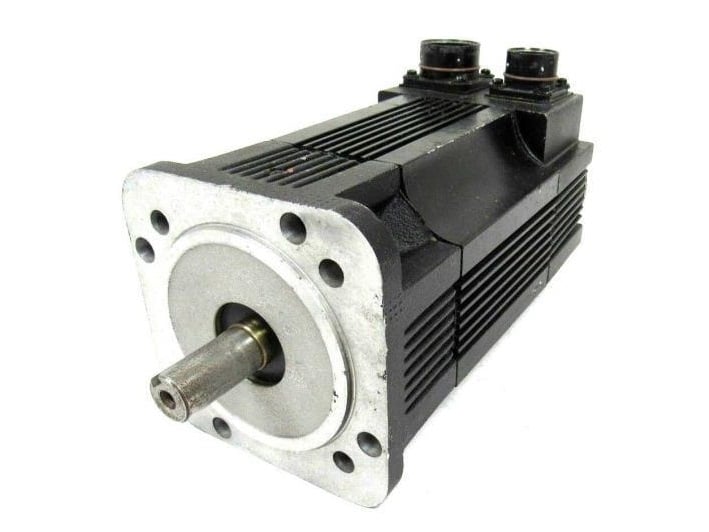

The Allen-Bradley 1326AB-B515E-M2K5L is a brushless three-phase AC servo motor designed for high-performance motion control applications. As part of the 1326 series, this motor offers reliable power delivery and seamless integration with Allen-Bradley 1391 series AC servo controllers.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1326AB-B515E-M2K5L |
| Subcatecory |
|
| Voltage |
380-460 Volts AC |
| Type of Voltage |
Three-phase |
| Frequency |
50-60 Hertz |
| Output current |
2.9 Killowatts |
| Continuout stall current |
4.5 to 6.7 Amps |
| Peak stall current |
9.0 to 18.3 Amps |
| Housing |
IP 65 |
| Speed |
3000 to 4000 RPM |
| Frame diameter |
149 millimeters |
| Controller |
1391 series |
| Weight |
0.40 lbs |
Information About 1326AB-B515E-M2K5L
The 1326AB-B515E-M2K5L servo motor operates on a three-phase 380–460 VAC input with a frequency range of 50 to 60 Hz. It delivers an output of 2.9 kW and supports a speed range between 3000 to 4000 RPM. With a continuous stall current between 4.5 and 6.7 amps and a peak stall current of up to 18.3 amps, it provides responsive torque and high operational stability across a wide performance range.
Key Features:
- Type: Brushless AC servo motor from the Allen-Bradley 1326 series
- Voltage: Operates on 380–460 VAC three-phase input
- Frequency Range: 50–60 Hz for international compatibility
- Output Power: Delivers 2.9 kW output for consistent torque and speed control
- Stall Current: Continuous stall current from 4.5 to 6.7 A; peak stall current from 9.0 to 18.3 A
- Speed Range: Rated speed between 3000 and 4000 RPM
- Housing Protection: IP65-rated enclosure for harsh environments
- Frame Size: 149 mm diameter for standard servo system configurations
- Controller Compatibility: Designed to integrate with Allen-Bradley 1391 series servo controllers
- Application: Supports high-performance motion control in industrial environments
The 1326AB-B515E-M2K5L offers efficient, precise, and rugged servo motor performance tailored for seamless operation with Allen-Bradley’s 1391 servo drive systems.
