Description
The Honeywell 51196653-200 is a CE-compliant power supply module designed to provide stable and efficient power for TDC 3000 five-slot chassis systems. It features auto-ranging input voltage and integrated power factor correction to support reliable industrial control operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Power Supplies |
| Part Number |
51196653-200 |
| Subcategory |
Control System Power Supply Modules |
| Series |
TDC 3000 |
| Function |
Power supply module |
| Slot Capacity |
5-slot chassis |
| Input Voltage |
120 / 240 VAC (auto-ranging) |
| Input Voltage Range |
102–264 VAC RMS |
| Power Factor Correction |
Yes (PFC) |
| Connector Type |
Standard 3-pin |
| Clock Configuration |
Internal or external (jumper selectable) |
| Compliance |
CE |
| Dimensions |
7.0 × 35.6 × 8.3 cm |
| Weight |
3.8 kg |
Information About 51196653-200

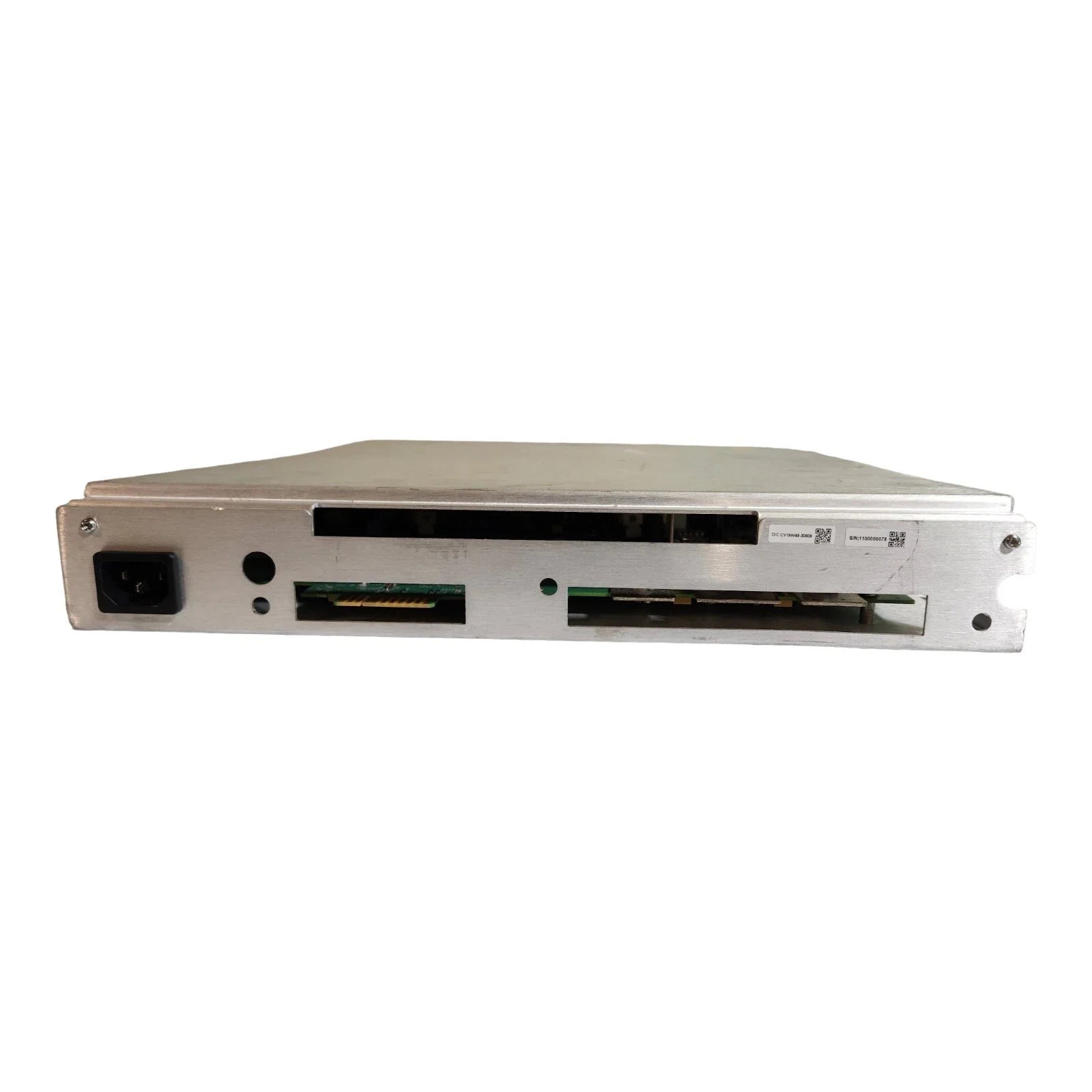

The 51196653-200 is part of the Honeywell TDC 3000 control system platform and represents the latest generation power supply for five-slot chassis configurations. It is designed with auto-ranging AC input and integrated power factor correction to improve efficiency and compatibility with global power standards. The module uses a standard 3-pin power connector and requires a replacement cable when installed in legacy five-slot chassis originally equipped with an 8-pin connector. Clock source configuration is selectable via an onboard jumper, allowing support for internal line-frequency clocks or external clocking for Sequence of Events applications.
Key Features
- TDC 3000 Five-Slot Power Design: Specifically engineered to supply power to Honeywell TDC 3000 five-slot I/O chassis.
- Auto-Ranging AC Input: Automatically supports input voltages from 102 to 264 VAC, enabling global deployment without manual configuration.
- Integrated Power Factor Correction: Improves electrical efficiency and reduces harmonic distortion in industrial power systems.
- CE-Compliant Construction: Meets European conformity requirements for industrial control equipment.
- Standardized Power Connector: Uses a 3-pin connector for compatibility with updated chassis designs and service replacements.
- Clock Source Configuration: Supports internal or external clock selection for systems requiring Sequence of Events functionality.
- Industrial-Grade Build Quality: Designed for long-term reliability, thermal stability, and continuous operation in control cabinets.
The 51196653-200 delivers the reliability and precision required for powering Honeywell TDC 3000 five-slot control system installations.
