Description

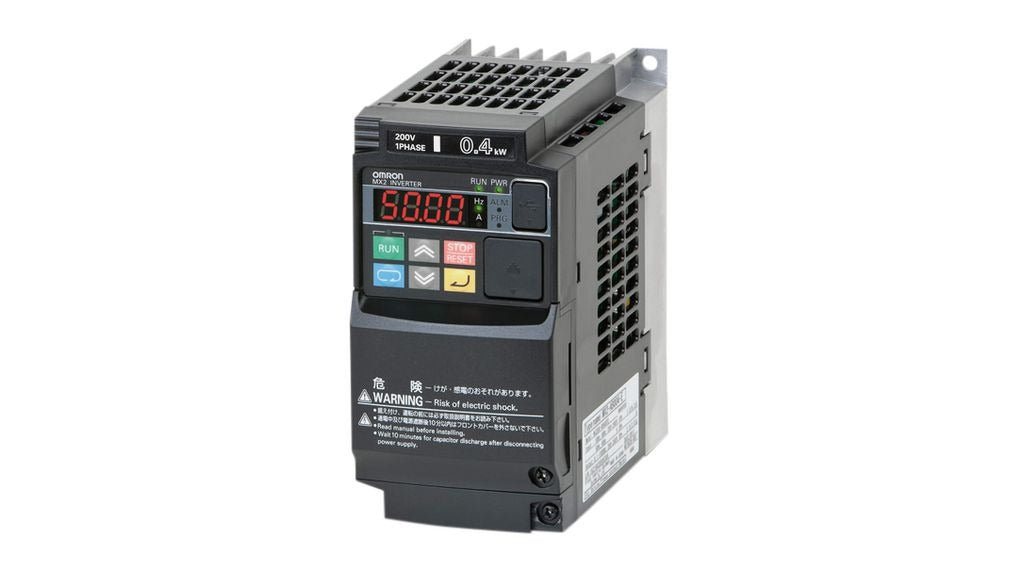

The 3G3MX2-AB002-E is a compact variable frequency drive from Omron's MX2 Series, supporting 1-phase and 3-phase 200–240 VAC input and sensorless vector control. Designed for dynamic motor control applications, it delivers smooth and efficient output over a wide frequency range.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G3MX2-AB002-E |
| Subcategory |
Variable Frequency Drives |
| Series |
MX2 Series |
| Input Voltage |
200–240 VAC (1-/3-phase) |
| Input Current |
3.0–3.6 A |
| Output Voltage |
3-phase 200–240 VAC |
| Output Current |
1.6–1.9 A (HD/ND) |
| Motor Power Support |
0.2 kW / 0.4 kW (HD/ND) |
| Frequency Output Range |
0.1 – 580 Hz |
| Control Method |
Sensorless Vector |
| Protection Rating |
IP20 |
| Mounting Type |
Panel mount |
| Operating Temperature |
–10°C to +50°C |
| Weight |
1.79 lbs |
Information About 3G3MX2-AB002-E
The 3G3MX2-AB002-E belongs to Omron’s MX2 Series of multi-function inverters, built to provide high precision speed and torque control in compact industrial setups. This model supports 1-phase or 3-phase 200–240 VAC input at 3.0–3.6 A, and provides a 3-phase 200–240 V output at 1.6–1.9 A, suitable for motors rated up to 0.2/0.4 kW (HD/ND modes). It utilizes sensorless vector control to enhance low-speed torque performance and control accuracy without external feedback. With a frequency output range from 0.1 to 580 Hz, this inverter adapts to various motor loads, from conveyors to fans and pumps. The unit’s IP20-rated enclosure makes it ideal for panel installation in protected environments, and it supports operation in ambient temperatures from –10°C to +50°C, ensuring thermal resilience in factory conditions.
Key Features:
- Dual Input Phase Compatibility: Operates with both 1-phase and 3-phase 200–240 VAC supplies, enhancing installation flexibility.
- Sensorless Vector Control: Provides accurate torque control at low speeds without requiring an encoder, ideal for high-performance motor regulation.
- Wide Frequency Range: Offers frequency output from 0.1 Hz up to 580 Hz, covering both standard and high-speed motor applications.
- Compact and Efficient Design: Engineered for tight control panels, featuring efficient thermal performance and minimal footprint.
- Stable Output Current: Supports 1.6 A (HD) to 1.9 A (ND) motor currents for light and heavy-duty operation.
- Reliable in Industrial Conditions: Designed for continuous use in ambient temperatures from –10°C to +50°C without performance degradation.
- User-Friendly Programming: Compatible with Omron’s intuitive configuration tools and easy-to-navigate interface for fast setup.
- Panel Mountable IP20 Housing: Protected enclosure suitable for mounting in standard industrial control cabinets.
The 3G3MX2-AB002-E combines versatility, performance, and efficiency, making it a dependable solution for low-to-medium power motor control in automation.
