Description

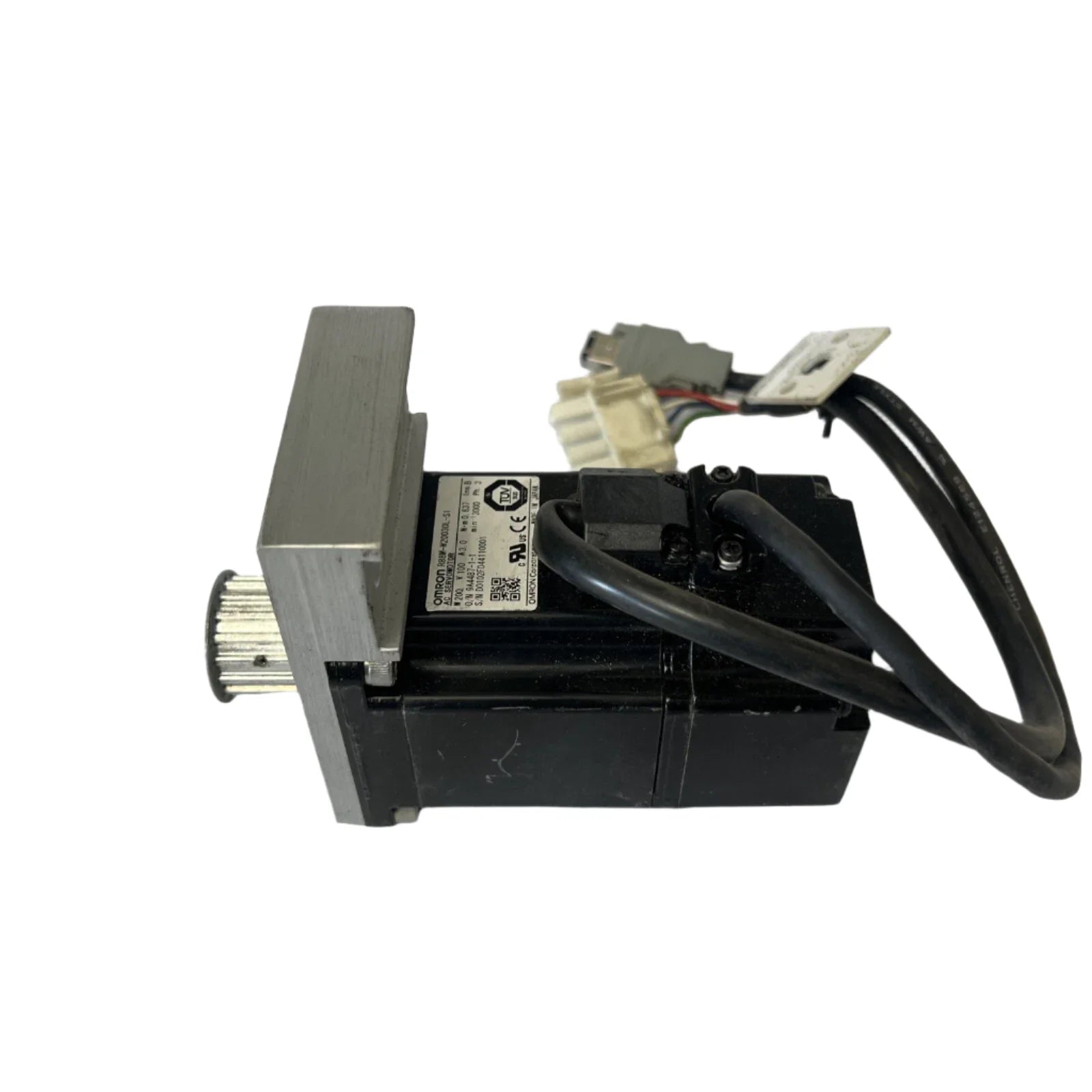

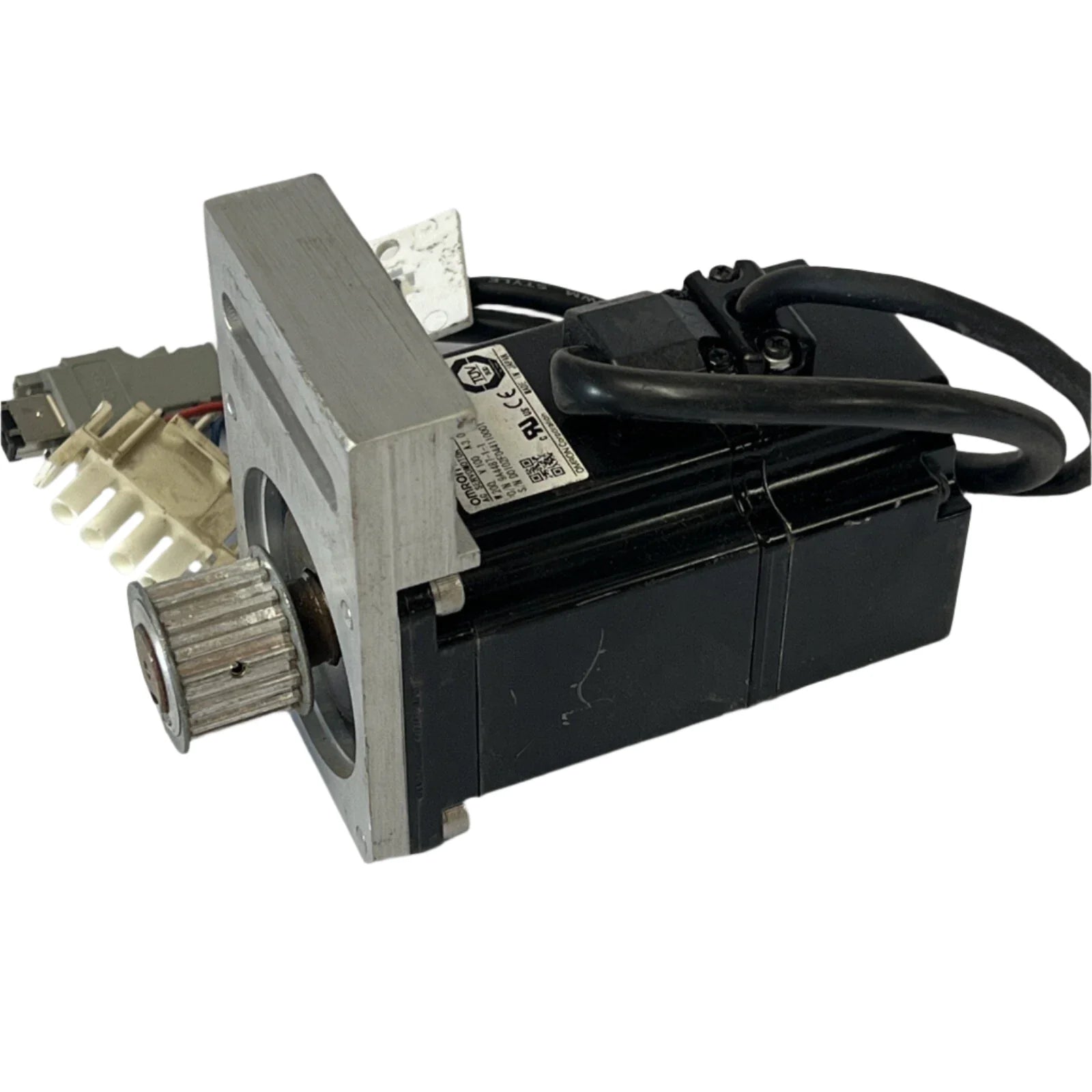

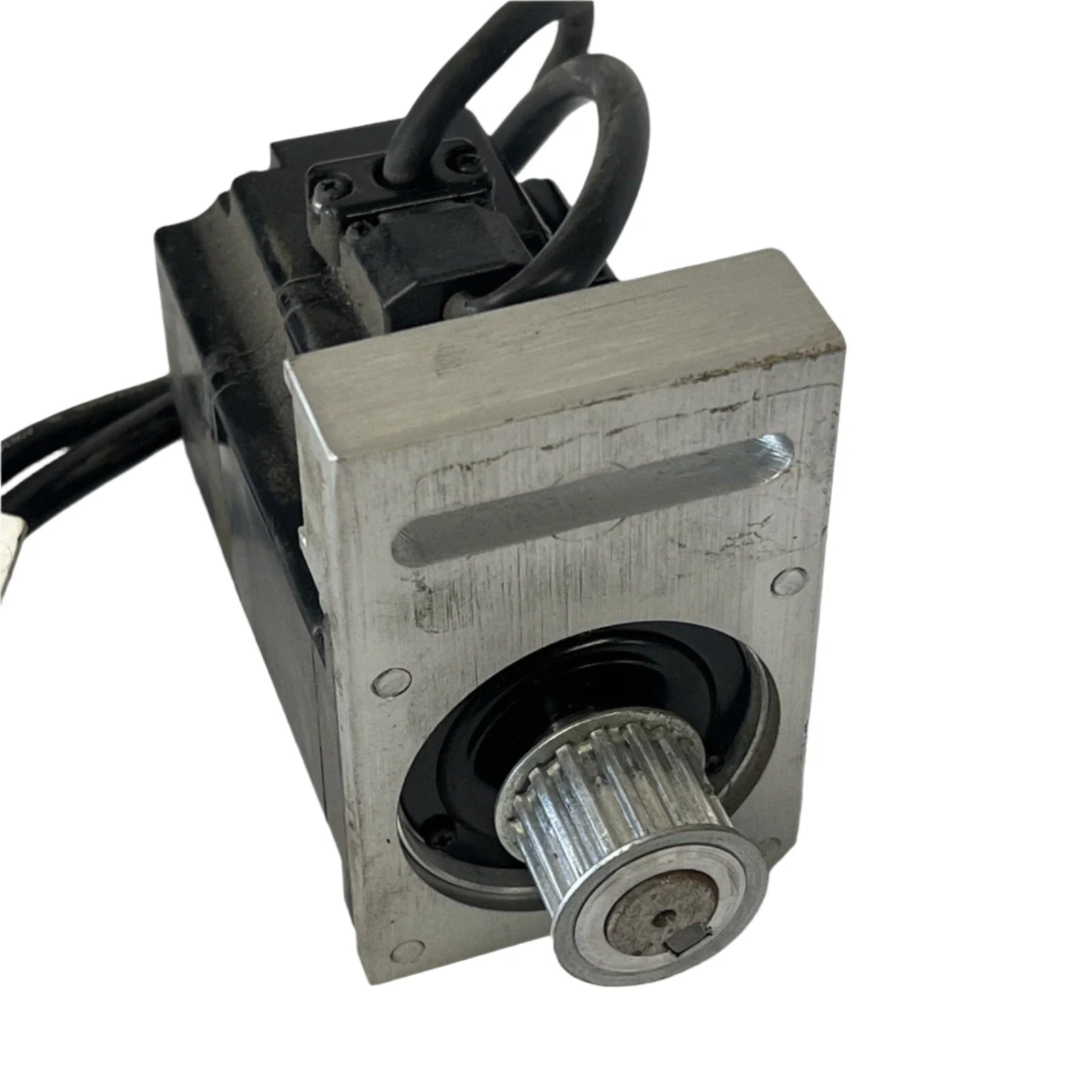

The Omron R88M‑W20030L‑S1 is a 100 VAC, 200 W AC servo motor from Omron’s R88M W‑series, designed for medium-speed precision motion applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| BrandPart Number |
Omron |
| Category |
|
| Part Number |
R88M-W20030L-S1 |
| Subcategory |
Servo Motor |
| Series |
OMNUC W |
| Voltage - Rated |
100 VAC |
| Power - Rated |
200 W
|
| RPM |
3000 RPM |
| Torque - Rated |
90.21 oz-in / 637 mNm |
| Torque - Max Momentary |
270.5 oz-in / 1910 mNm |
| Encoder Type |
Incremental |
| Features |
Key |
| Termination Style |
Wire Leads with Connector |
| Size / Dimension |
Square - 2.362" x 2.362" (60.00 mm x 60.00 mm) |
| Diameter - Shaft |
0.551" (14.00 mm) |
| Length - Shaft and Bearing |
1.181" (30.00 mm) |
| Mounting Hole Spacing |
2.756" (70.00 mm) |
| Operating Temperature |
0°C to 40°C |
| Approval Agency |
cUL, UL |
| Weight |
2.4 lbs |
Information About R88M-W20030L-S1
The Omron R88M-W20030L-S1 is a compact AC servo motor designed for precise motion control in industrial automation systems. Part of the OMNUC W Series, this motor delivers 200 W rated power and operates at 100 VAC, with a rated speed of 3000 RPM. Equipped with an incremental encoder and a keyed straight shaft, it ensures reliable, closed-loop motion feedback and secure mechanical coupling. Although now discontinued, it remains a preferred solution for medium-power positioning tasks in legacy equipment and space-constrained systems.
Key Features:
- 200 W Output Power: Delivers consistent performance for mid-range industrial motion tasks.
- 100 VAC Supply Voltage: Standard low-voltage AC input compatible with dedicated servo drives.
- 3000 RPM Rated Speed: Supports medium-speed positioning and cyclic operations.
- 0.637 Nm Rated Torque & 1.91 Nm Peak Torque: Provides stable holding and dynamic load capacity.
- Incremental Encoder Feedback: Enables precise closed-loop control for accurate positioning.
- Keyed Straight Shaft (14 mm): Ensures secure coupling with driven components and pulleys.
- Compact 60 mm Frame Size: Allows easy integration in space-constrained control panels and machines.
- Wire Leads with Connector: Simplifies installation and maintenance through quick-connect terminations.
- cUL, UL Certified: Meets industrial safety standards for global deployment.
- Discontinued Model: Now available primarily through surplus and refurbished equipment suppliers.
The Omron R88M-W20030L-S1 provides dependable, mid-power servo performance with compact dimensions and incremental encoder-based feedback. Suitable for robotics, conveyors, and precision machinery, it remains widely used in legacy automation environments requiring reliable servo control.
