Description

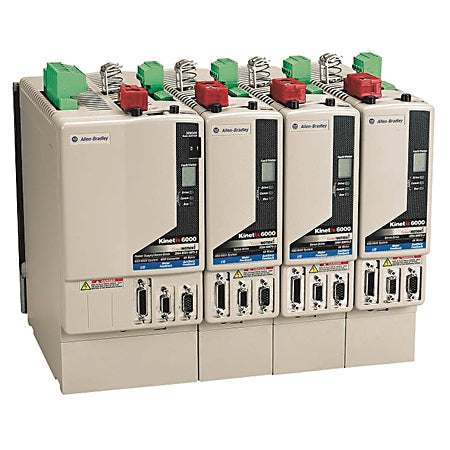

The 2094-PRS6 is a slim power rail module from the Allen-Bradley Kinetix 6000 series, engineered for compact and efficient multi-axis drive systems. It supports up to six axes and is compatible with both 230V and 460V drive configurations.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
Servo Motors and Components
|
|
Part Number
|
2094-PRS6
|
| Subcatecory |
|
| Module Type |
Slim Power Rail |
| Applications |
230 or 460 Volt Drive Systems |
| Module Capacity |
1 IAM, 5 Additional |
| Number of Axes |
6-Axes |
| Dimensions |
19.3 x 16.1 x 7.7 in (490.2 x 408.9 x 195.6 mm) |
| Weight |
7.8 lbs (3.55 kg) |
Information About 2094-PRS6
The 2094-PRS6 is part of Allen-Bradley’s Kinetix 6000 family, specifically designed to meet the needs of high-performance motion control systems. This slim version of the standard power rail provides space-saving advantages, enabling installation in tighter control panels while maintaining robust support for complex drive configurations. It accommodates one Integrated Axis Module (IAM), up to five standard axis modules, a shunt module, and up to five filler modules, making it ideal for modular and scalable multi-axis applications. Compatible with both 230V and 460V systems, the 2094-PRS6 is versatile for various industrial environments requiring compact automation solutions.
Key Features:
-
Slim Power Rail Design: Offers a more compact footprint compared to standard models, ideal for space-constrained enclosures.
-
Supports Up to 6 Axes: Handles one IAM and five additional axis modules for scalable motion control.
-
Voltage Compatibility: Suitable for both 230V and 460V drive systems.
-
Modular Expansion Ready: Includes support for slot filler and shunt modules to complete custom configurations.
-
Lightweight and Durable: Weighs only 7.8 lbs while providing stable, high-performance drive support.
The 2094-PRS6 enables efficient and scalable motion control configurations in compact industrial automation environments.
