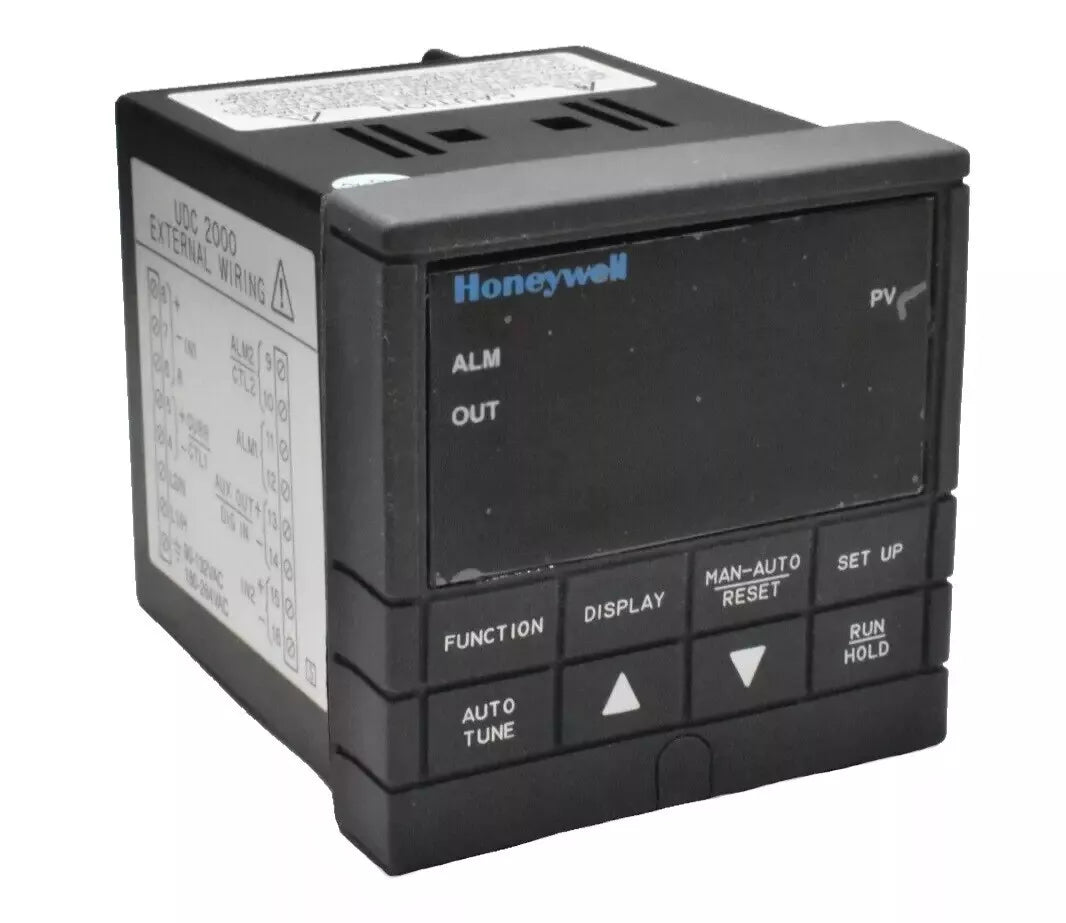

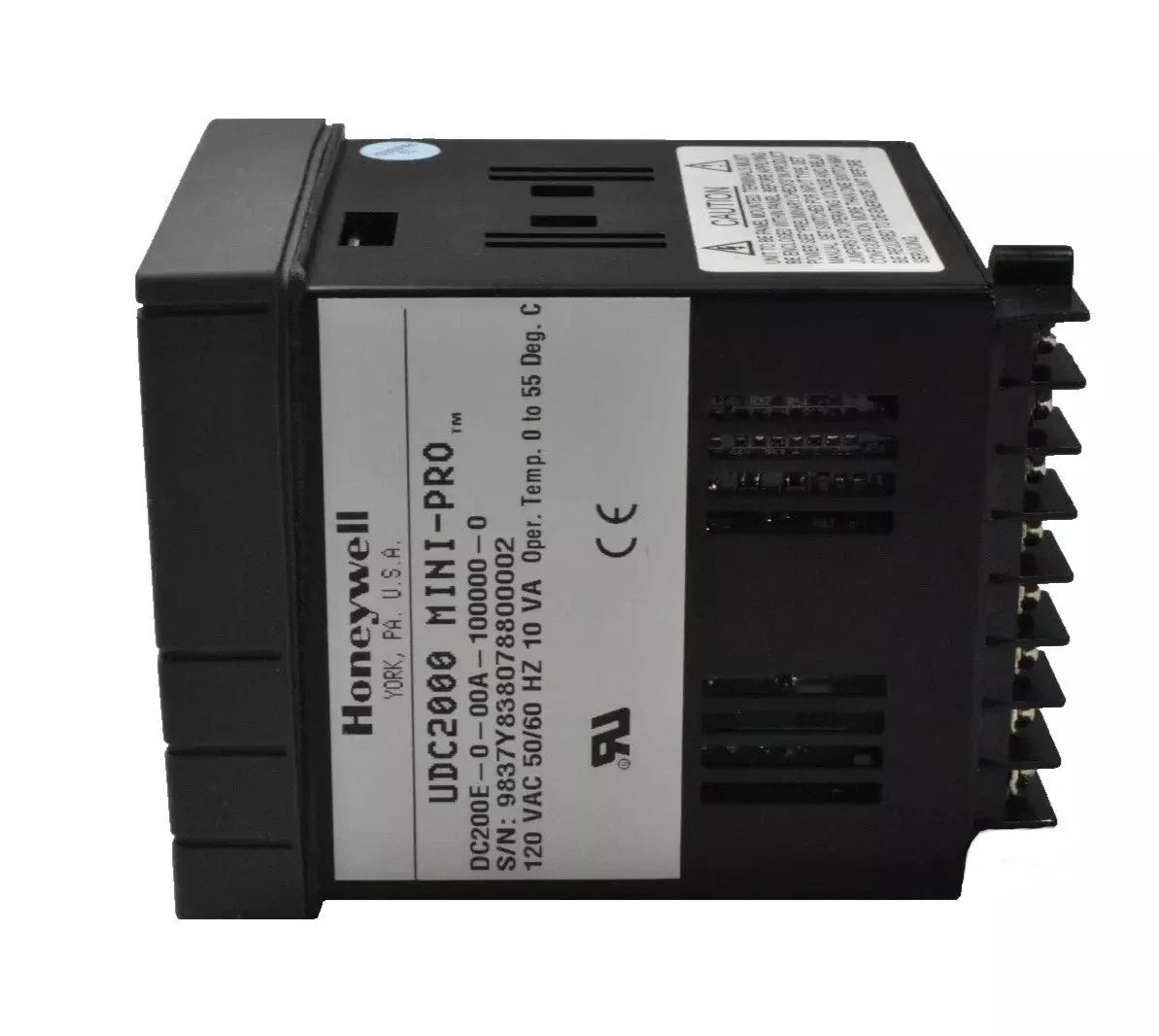

Description
The Honeywell UDC2000 Mini-Pro is a versatile digital temperature controller designed for general-purpose process control applications. Compact in design, it is equipped with advanced features such as precise temperature control, user-configurable outputs, and exceptional signal filtering.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
UDC2000
|
| Subcategory |
Temperature/Process Control |
| Accuracy |
±0.3% of span (typical), 14-bit resolution |
| Temperature Stability |
±0.8% for 50°F (28°C) change |
| Power Supply |
120 VAC, 60 Hz |
| Power Consumption |
6 VA |
| Input Impedance |
250 Ohms (4–20 mA), 200K Ohms (Voltage), 10 MΩ (Thermocouple), 10K Ohms (RTD) |
| Stray Rejection |
Common Mode: 120 dB; Normal Mode: 60 dB |
| Output Algorithms |
On-Off, Time Proportional, Current Proportional, Limit Control |

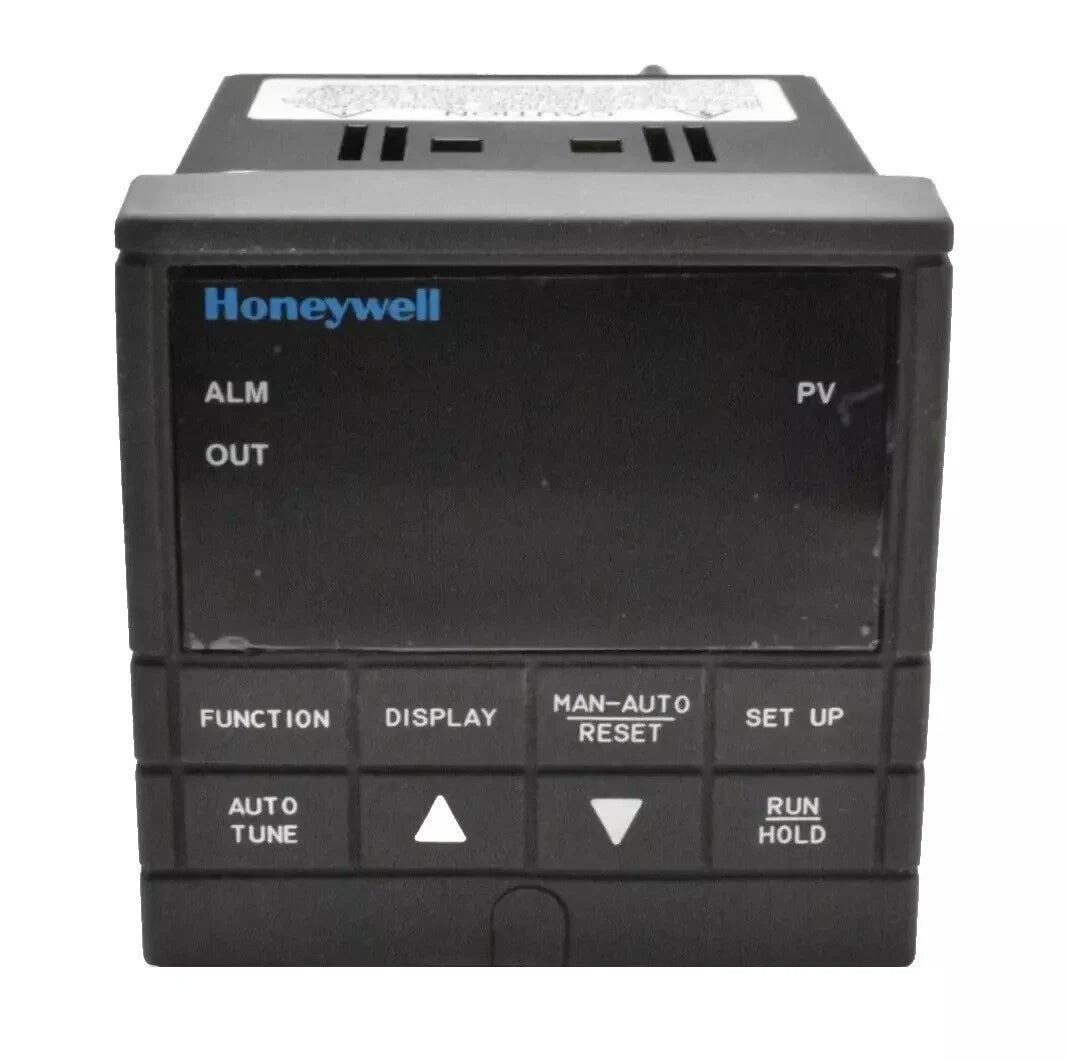

| Display Type |
9-segment and 14-segment vacuum fluorescent, 4-digit PV/setpoint/output |
| Status Indicators |
Alarms, temperature unit, local/remote setpoint, relay status |
| Mounting |
Panel-mounted, 4.2 inch depth |

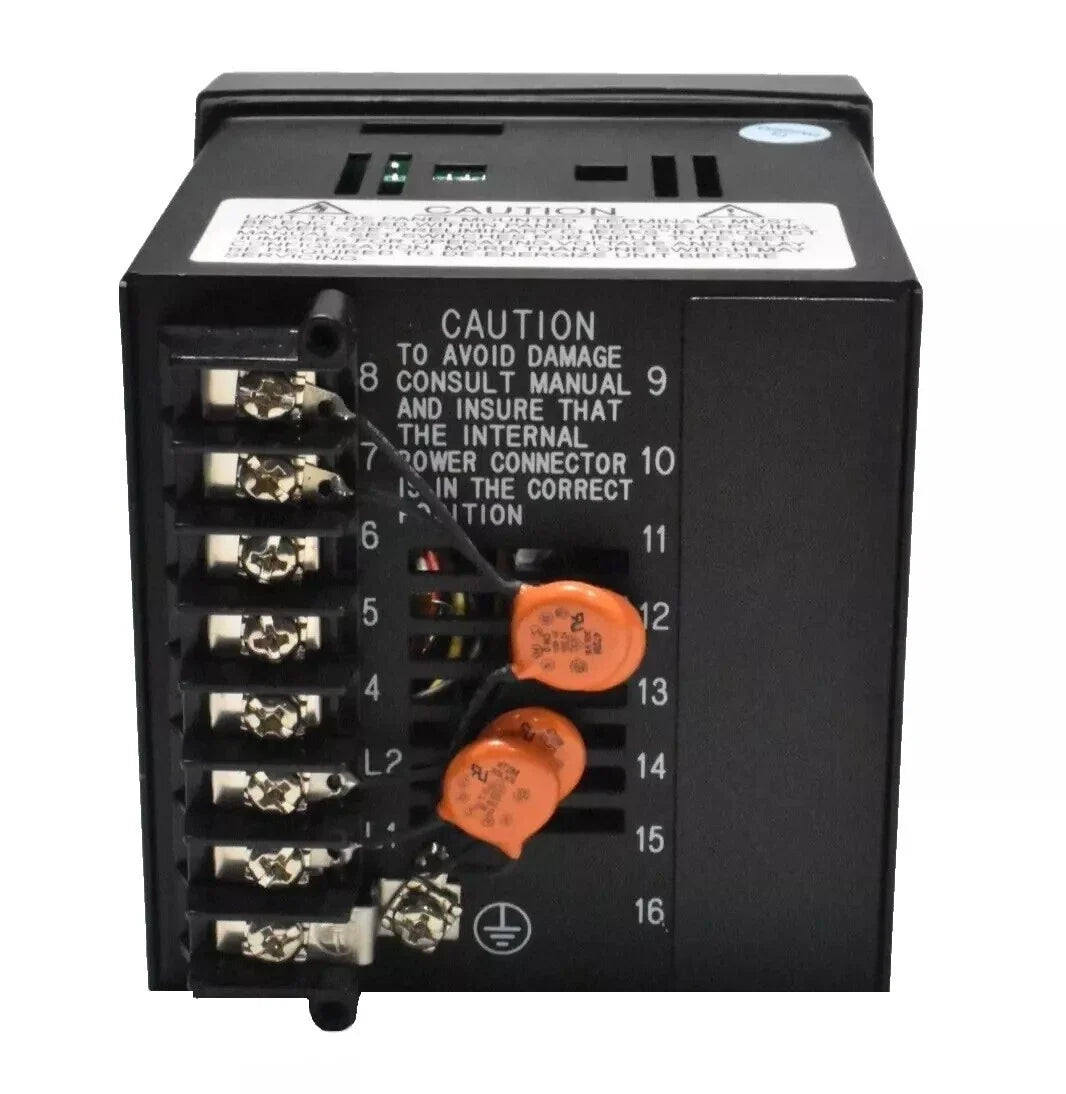

| Wiring |
Screw terminals (6-32) |
| Weight |
1 kg (2.2 lbs.) |
Information About UDC2000
The UDC2000 controller features an intuitive interface, high-resolution display, and robust environmental tolerance for both industrial and laboratory settings. It offers support for thermocouples, RTDs, current, and voltage inputs, ensuring compatibility with a broad array of sensors and transmitters. Designed to operate under demanding conditions, the unit integrates easily into panel-mount environments and enables efficient process optimization with minimal setup complexity.
Key Features:
- Advanced Control Options: Includes On-Off, Time Proportional, Current Proportional, and Limit Control algorithms.
- Flexible Input Handling: Supports thermocouples, 4–20mA, and voltage inputs with high input impedance and configurable signal fail-safes.
- Compact Panel Mount Design: Only 4.2-inch deep, ideal for space-constrained applications.
- Display: Alphanumeric vacuum fluorescent with dedicated 4-digit process display and additional configuration display.
- Status Indicators: Visual indicators for alarms, control output, and setpoint activity.
- Environmental Resilience: Operates from 0 to 50°C with ±0.8% temperature stability and strong AC signal stray rejection.
- User-Configurable Output: Optional 0–5V auxiliary PV output for external devices, with 12-bit resolution.
- Durable Build: Rugged panel-mount unit with screw terminals for wiring and total weight of just 1 kg (2.2 lbs).
The UDC2000 delivers dependable and configurable performance suited for a wide range of thermal control challenges.
