Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server

Specifications

Model Number: B7126T65V10E4HR

Brand: Tyan

Alt Part Number(s):  B7126T65V10E4HR

Product Type:  Server

Technical Description

Brand: Tyan

Model: B7126T65V10E4HR

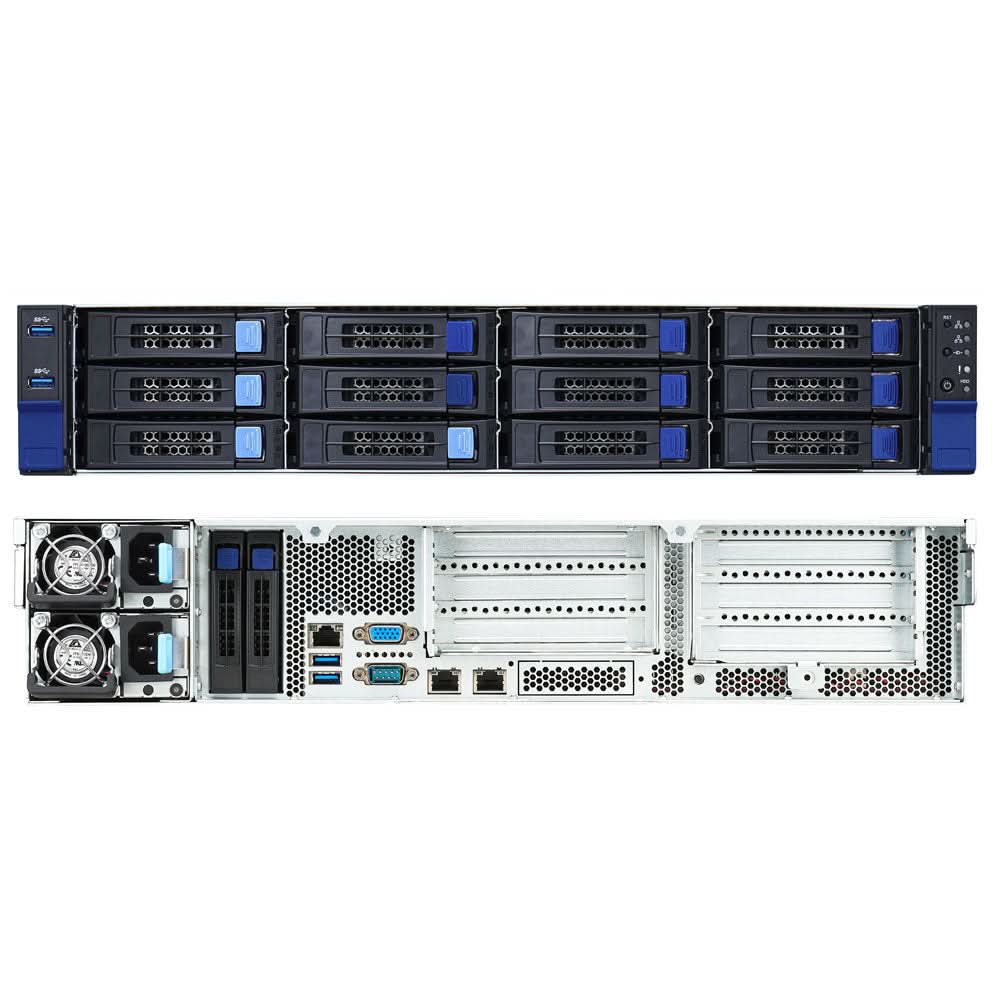

Product Description: Tyan Thunder SX TS65-B7126 – 2U Rackmount Server (No CPU, No RAM, No HDD)

Form Factor: 2U Rackmount

Scalability: 2-way

CPU Socket: LGA4189 (Supports up to 2 CPUs – no CPU installed)

Chipset: Intel C621A

Motherboard: Tyan S7126GM2NRE

Memory:

• Slots: 16 DIMM (288-pin)

• Installed: 0 GB

• Max Capacity: 2048 GB DDR4 SDRAM

Storage:

• Drive Bays: No HDD installed

• Storage Controller: RAID (SATA 6Gb/s)

• Supported RAID Levels: 0, 1, 5

Optical Drive: Not included

Graphics:

• Controller: ASPEED AST2500

• Interface: VGA (1 rear)

Networking:

• Ethernet Controller: Realtek RTL8211FD-CG

Power:

• Voltage: AC 200–240V

• Efficiency: 80 PLUS Platinum Certified

OS: No operating system provided

Dimensions:

• Width: 17.3 in

• Depth: 25.6 in

• Height: 3.4 in

• Weight: 39.68 lbs

Shipping Weight: 56.22 lbs

Environmental Operating Range:

• Temperature: 50°F to 95°F

Compliance: CB, RoHS, LVD, VCCI Class A, DOC-A, RCM Class A, ACPI 6.1, SMBIOS 3.0, FCC SDOC Class A

Boost your enterprise performance with the Tyan B7126T65V10E4HR Intel Xeon SP Series 3rd Gen Server —ORDER TODAY!

*
