Overview

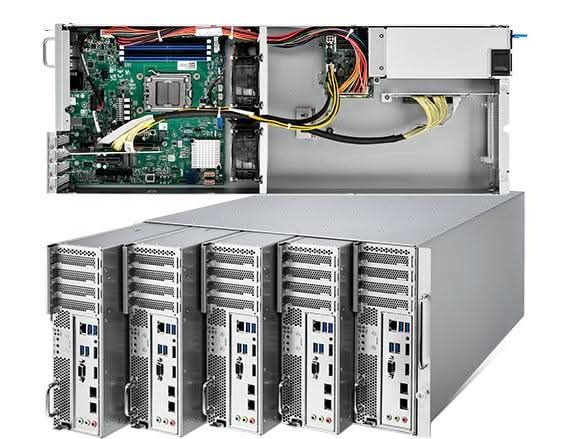

Tyan B8016H68D5 6U5N AMD Ryzen 7000 Series Server
Specifications
Model Number: B8016H68D5
Brand: Tyan
Alt Part Number(s): B8016H68D5
Product Type: Server
Technical Description
Brand: Tyan
Model: B8016H68D5
Model: Transport CX HG68-B8016
Cabinet Form Factor: 6U
Processor Manufacturer: AMD
Max Supported Processors: 1
Mainboard Chipset: AMD B650
RAM Technology: DDR5
Total RAM Slots: 4
Max Supported RAM: 128 GB
Drive Interface Types: SATA 6 Gb/s, NVMe
Total Drive Bays: 6
RAID Support: RAID 0, 1, 10
Network Protocol: Gigabit Ethernet
Power Supply Type: Redundant
Installed Power Supplies: 2
Power Output: 800 Watts
Power Requirements:
AC 100–127V / 10A
AC 200–240V / 5A
Interfaces & Connections:
USB 3.2 Gen 1
D-Sub 15-pin
DisplayPort
Line-in / Line-out / MIC
RJ-45
Expansion Slots (Total/Free):
Dimensions:
Width: 17.60 inches
Depth: 26.85 inches
Height: 10.44 inches
RoHS Compliant: Yes
Boost your enterprise performance with the Tyan B8016H68D5 6U5N AMD Ryzen 7000 Series Server —ORDER TODAY!
*
