Description

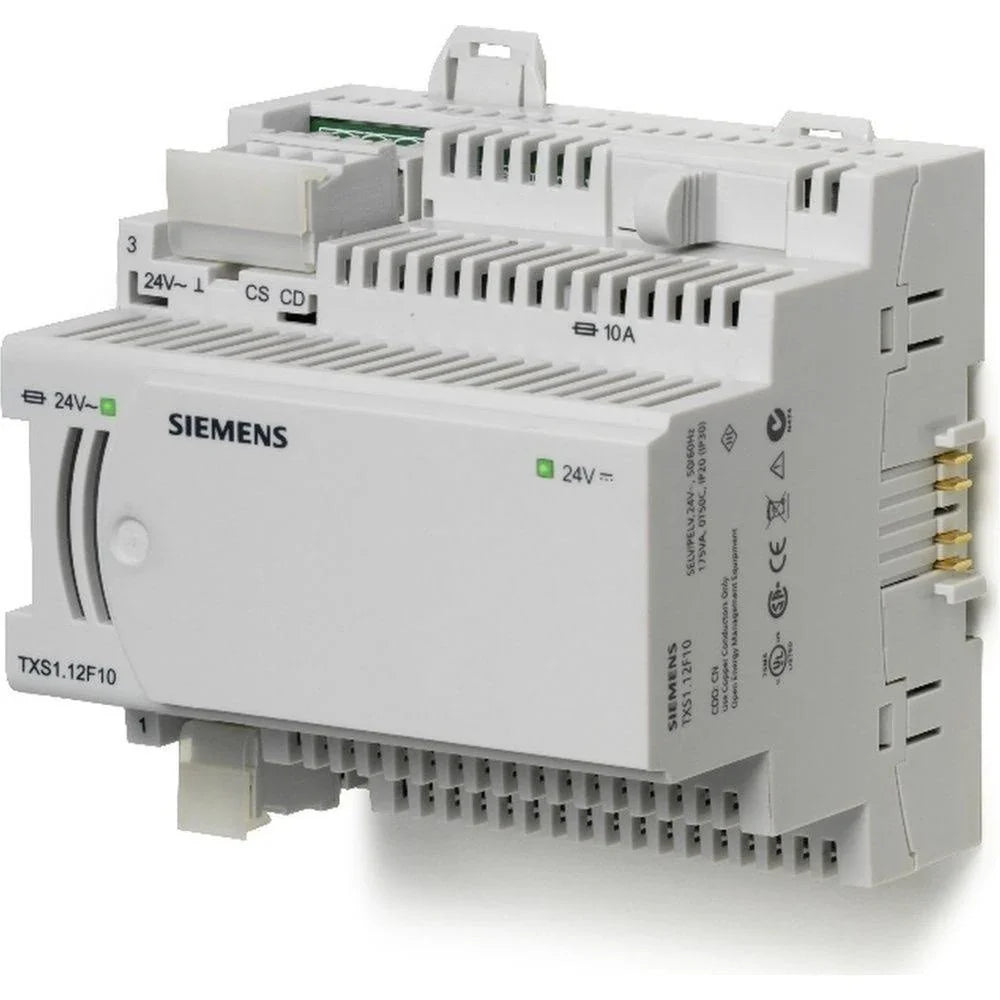

The Siemens TXS1.12F10 is a TX-I/O power supply module that converts 24 VAC to 24 VDC for use with TX-I/O modules and field devices. It provides 1.2 A output power and supports up to four modules in parallel operation, offering reliable power distribution in building automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
|
| Part Number |
TXS1.12F10
|
| Subcategory |
Power Supply |
| Input Voltage |
|
| Input Power |
57 VA |
| DC Output Voltage |
24 VDC |
| DC Output Current |
1.2 A (28.8 W) |
| AC Pass-Through |
24 VAC, 144 VA |
| Parallel Operation |
Supports up to 4 modules |
| Enclosure Rating |
IP20 (IP30 in cabinet) |
| Safety Classification |
Class 2 |
| Mounting Type |
DIN Rail |
| Weight |
0.64 lbs |
Information About TXS1.12F10
The TXS1.12F10 is a DIN rail-mountable power supply designed for the Siemens TX-I/O product line, commonly used in HVAC and building automation. It accepts 24 VAC input at 50/60 Hz and delivers a regulated 24 VDC output at 1.2 A (28.8 W) to power TX-I/O modules and field-connected sensors or actuators. In addition, it provides AC pass-through at 24 VAC (144 VA) for directly supplying field devices that operate on AC. The module also transfers the bus signal, maintaining communication integrity within the TX-I/O system. Designed with IP20 (or IP30 in cabinet) rated enclosure, the device meets Class 2 safety standards and allows up to 4 units to operate in parallel for increased power demands or redundancy.
Key Features:
- Input Voltage: 24 VAC at 50/60 Hz, 57 VA for internal operation.
- DC Output: 24 VDC at 1.2 A (28.8 W) for TX-I/O modules and field devices.
- AC Pass-Through: 24 VAC, 144 VA for direct field device supply.
- Parallel Operation: Up to 4 modules can be used in parallel for scalable power delivery.
- Signal Transfer: Maintains TX-I/O bus signal integrity.
- Enclosure Rating: IP20 for panel use (IP30 when installed in suitable enclosure).
- Safety Class: Class 2 compliant.
The TXS1.12F10 offers efficient, modular power delivery and signal continuity for decentralized I/O in intelligent building control systems.
