Description

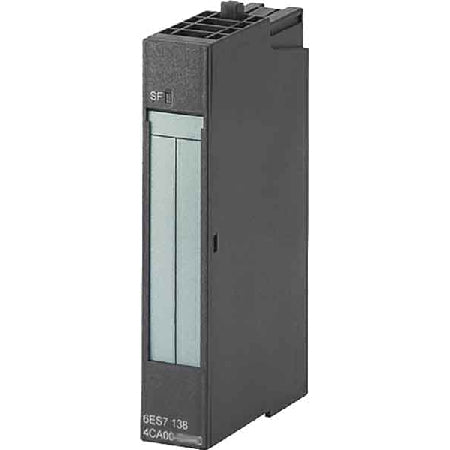

The Siemens SIMATIC DP PM-E Power Module (6ES7138-4CA01-0AA0) is a 24 V DC power module designed for the ET 200S distributed I/O system.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens
|
| Category |
|
| Part Number |
6ES7138-4CA01-0AA0
|
| Subcatecory |
|
| Power |
0.1 W |
Voltage
|
24 VDC |
| Diagnostics |
Yes |
| Current Rating |
10 AMP |
| Product Family |
SIMATIC DP |
| Weight |
0.039 kgs |
Information About 6ES7138-4CA01-0AA0
The Siemens 6ES7138-4CA01-0AA0 is a PM-E power module designed for the SIMATIC ET 200S distributed I/O system. It supplies 24 V DC power to the I/O modules within its potential group and includes diagnostic capabilities to monitor system health.
Key Features:
-
Rated Load Voltage: 24 V DC
-
Maximum Current Carrying Capacity: 10 A (up to 60°C)
-
Power Loss: Approximately 0.1 W
-
Input Current (without load): Maximum 4 mA
-
Reverse Polarity Protection: Yes
-
Short-Circuit Protection: No; requires external protection (e.g., circuit breaker with tripping characteristic C)
-
Galvanic Isolation: Yes; between load voltage and backplane bus, and between power modules
-
Diagnostics:
-
Missing load voltage detection
-
LED indicators: Green for "PWR" (power), Red for "SF" (group error)
-
3-byte diagnostic parameterization
The 6ES7138-4CA01-0AA0 is suitable for industrial automation environments where reliable 24 V DC power distribution and diagnostic monitoring are essential. Its compact design and diagnostic features make it ideal for modular I/O setups within the ET 200S system.
