Description

The Siemens TXM1.6R-M provides flexible and reliable digital relay output functionality across six independently configurable channels. This module supports various output modes including continuous or impulse contact, single-stage or multi-stage control, and three-point positioning with an internal stroke model—making it suitable for diverse building automation and control applications.

Technical Specifications

Information About TXM1.6R-M

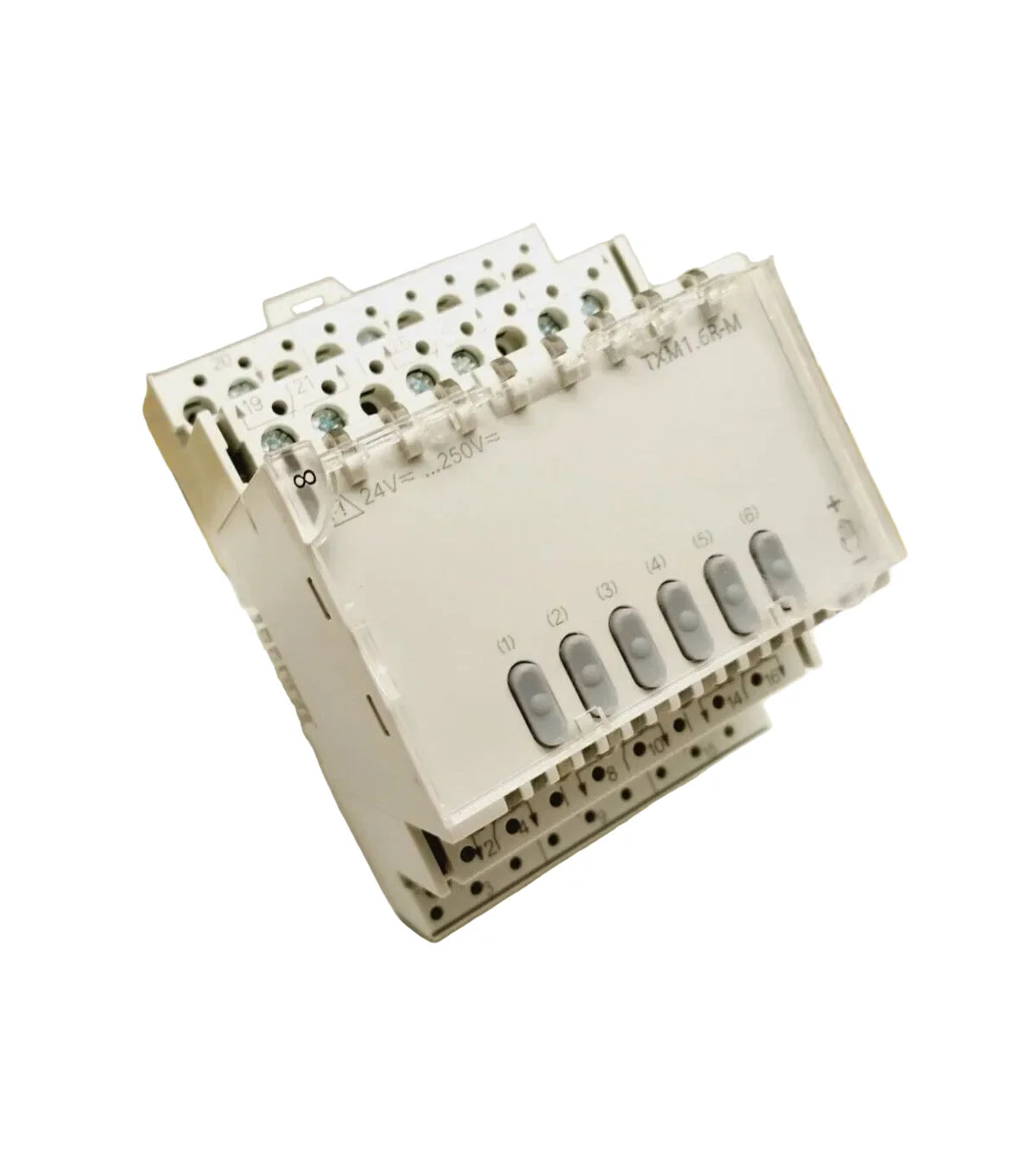

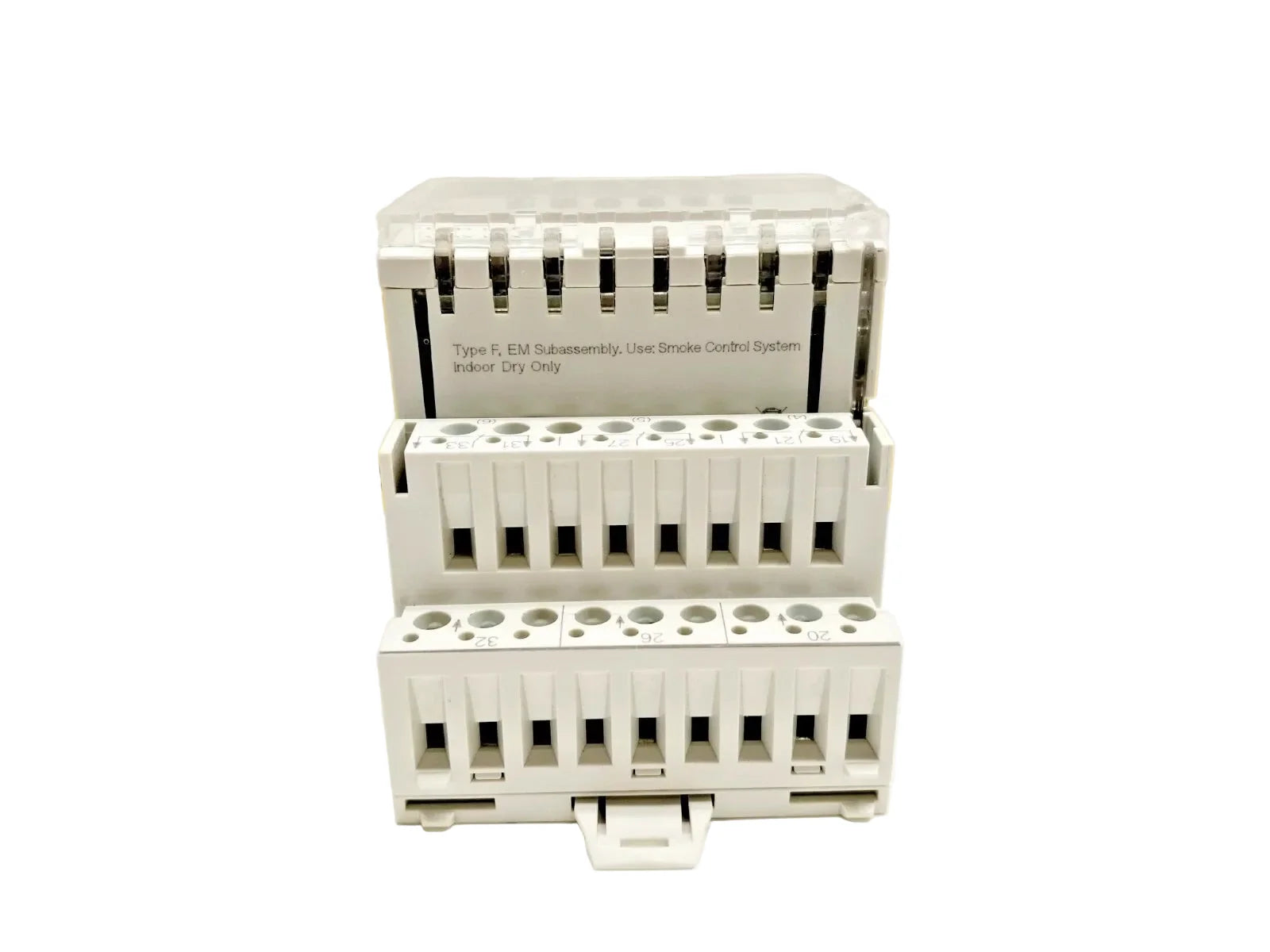

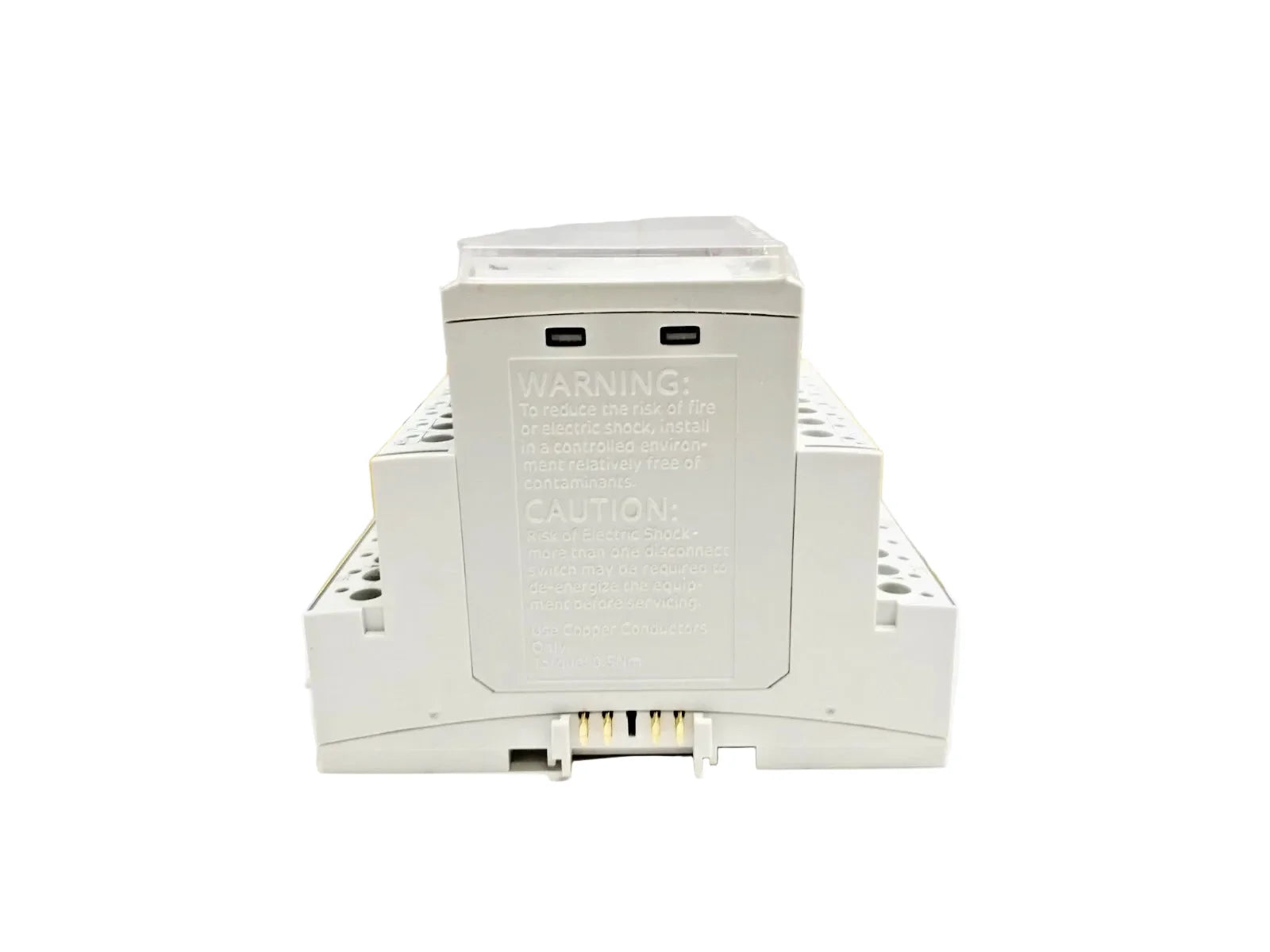

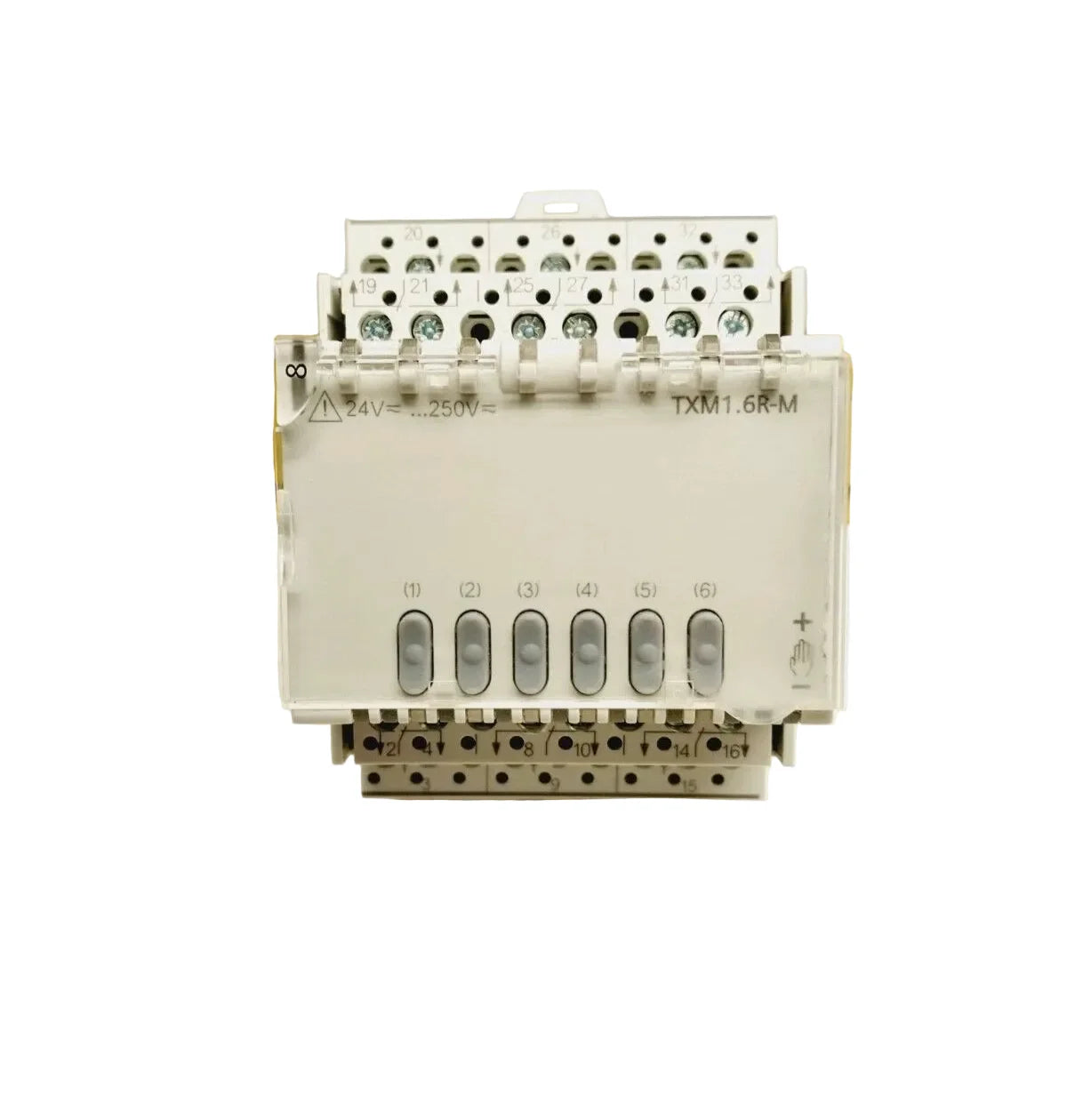

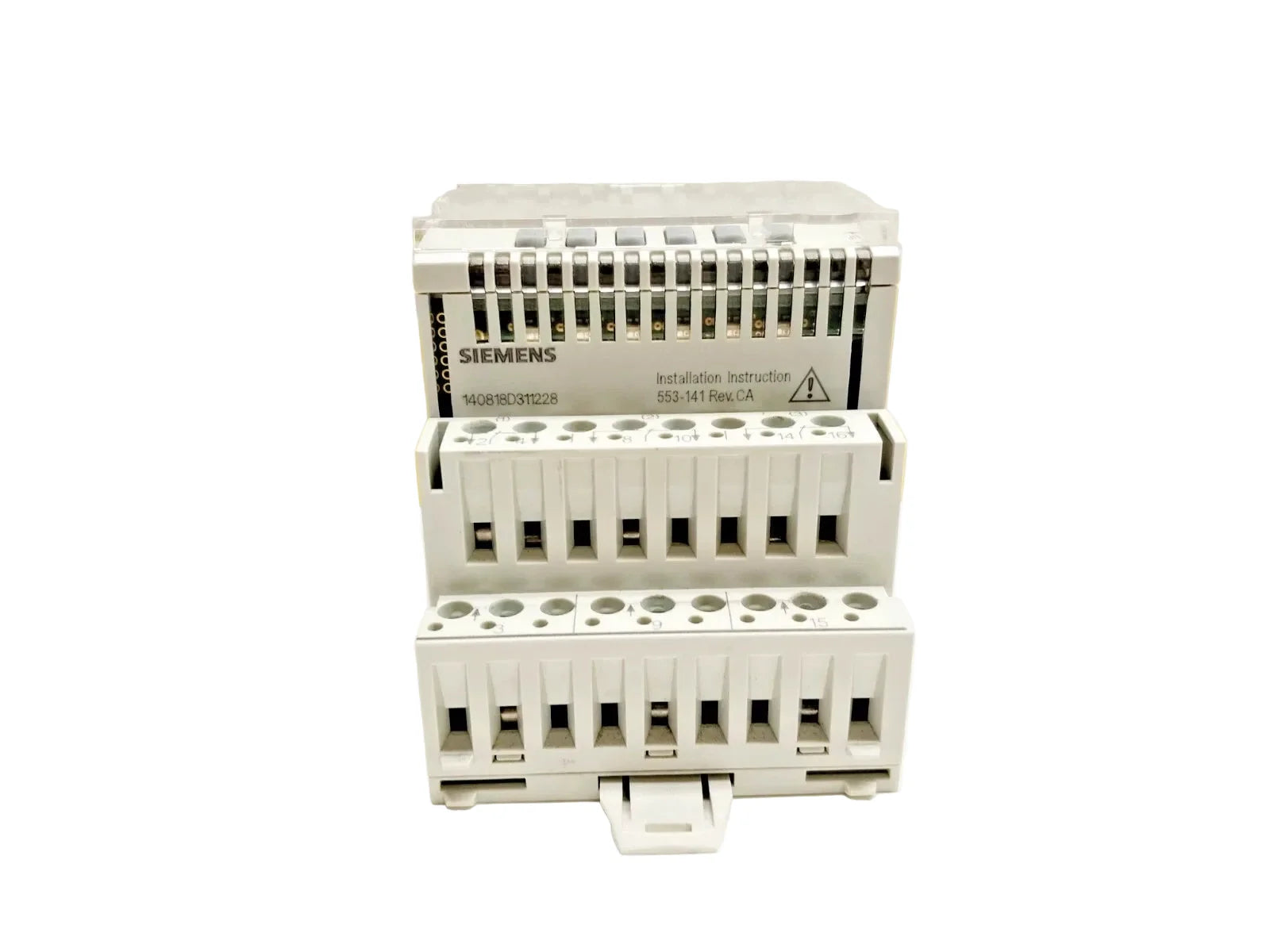

The TXM1.6R-M is a 6-channel digital relay output module from Siemens’ TX-I/O series. Although it has been discontinued by the manufacturer, it remains a notable solution for legacy systems that require precise and versatile relay control. Each channel supports switching voltages from AC 12…250 V or DC 12…30 V, with a maximum switching current of 4 A. The module features local override functionality and LED status indicators (red, yellow, green) for immediate operational feedback.

Key Features:

• Six Configurable Relay Outputs: Each output can be set to function as a continuous or impulse contact, single- or multi-stage, or as a three-point positioning output.

• Wide Switching Voltage Range: Supports AC 12–250 V and DC 12–30 V, providing flexibility in various control scenarios.

• High Switching Current: Handles up to 4 A per output, suitable for controlling a variety of end devices.

• Local Override Control: Enables manual override at the module for maintenance or emergency situations.

• LED Status Indicators: Red, yellow, and green LEDs give clear feedback on the status of each channel.

• Discontinued Model: Though no longer in production, it remains relevant for existing TX-I/O system deployments.

The TXM1.6R-M offers versatile relay output capabilities, particularly useful in HVAC and building automation scenarios where flexible switching logic is needed.
