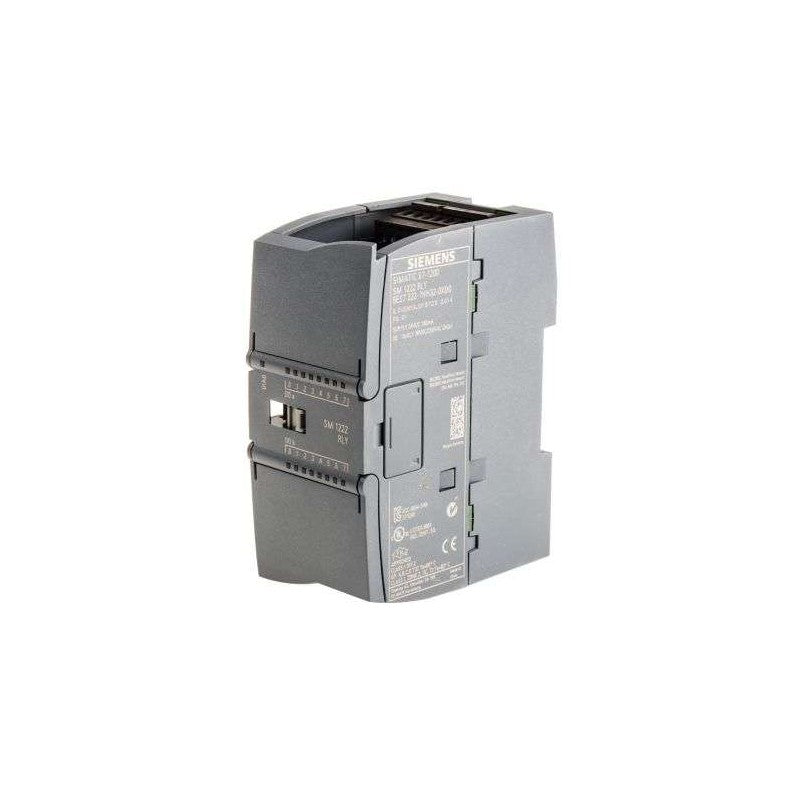

Siemens 6ES7222-1HH32-0XB0 Digital Output Module, 8 DO, 24V DC, 0.5A per channel, for S7-1200 PLC. Delivers reliable switching of digital signals in industrial automation applications.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	PLCs and Accessories
Part Number	6ES7222-1HH32-0XB0
Subcategory	PLC Expansion Modules
Product Type	Ethernet Switch
Digital Outputs	16 x relay
Supply Voltage	24 V DC
Permissible Range	20.4-28.8 V DC
Continuous Current Outputs	2 A
Dimensions (H x W x D)	45 x 100 x 75 mm
Mounting	DIN-rail 35 mm
Connection	Screw terminals
Ambient Temperature min.	-20 °C
Ambient Temperature max.	60 °C
Protection Rating	IP20
Weight	0,237 kgs





Information About 6ES7222-1HH32-0XB0

The Siemens 6ES7222-1HH32-0XB0 is a SIMATIC S7-1200 SM 1222 digital output module designed to expand the capabilities of the S7-1200 PLC series by providing additional relay outputs for controlling various actuators and devices in industrial automation systems.

Key Specifications:

• Number of Outputs: 16 digital relay outputs

• Output Voltage Range:

  • DC: 5 V to 30 V

  • AC: 5 V to 250 V

• Output Current: Up to 2 A per channel with resistive load

• Switching Capacity:

  • Lamp Load: Up to 30 W (DC), 200 W (AC)

• Output Delay:

  • On Delay ("0" to "1"): ≤ 10 ms

  • Off Delay ("1" to "0"): ≤ 10 ms

• Power Consumption: Approximately 8.5 W

• Operating Temperature Range: -20°C to +60°C

• Protection Rating: IP20

Features:

• Relay Outputs: Each of the 16 channels is equipped with a relay capable of handling up to 2 A, suitable for switching both AC and DC loads.

• Flexible Voltage Support: Capable of switching a wide range of voltages, accommodating various application requirements.

• Diagnostic Functions: Includes diagnostic alarms and status LEDs for monitoring output states and maintenance needs.

• Potential Isolation: Provides isolation between channels and the backplane bus, enhancing system safety and reliability.

Its robust design and comprehensive features make it a valuable addition to the S7-1200 PLC system for diverse control applications.
