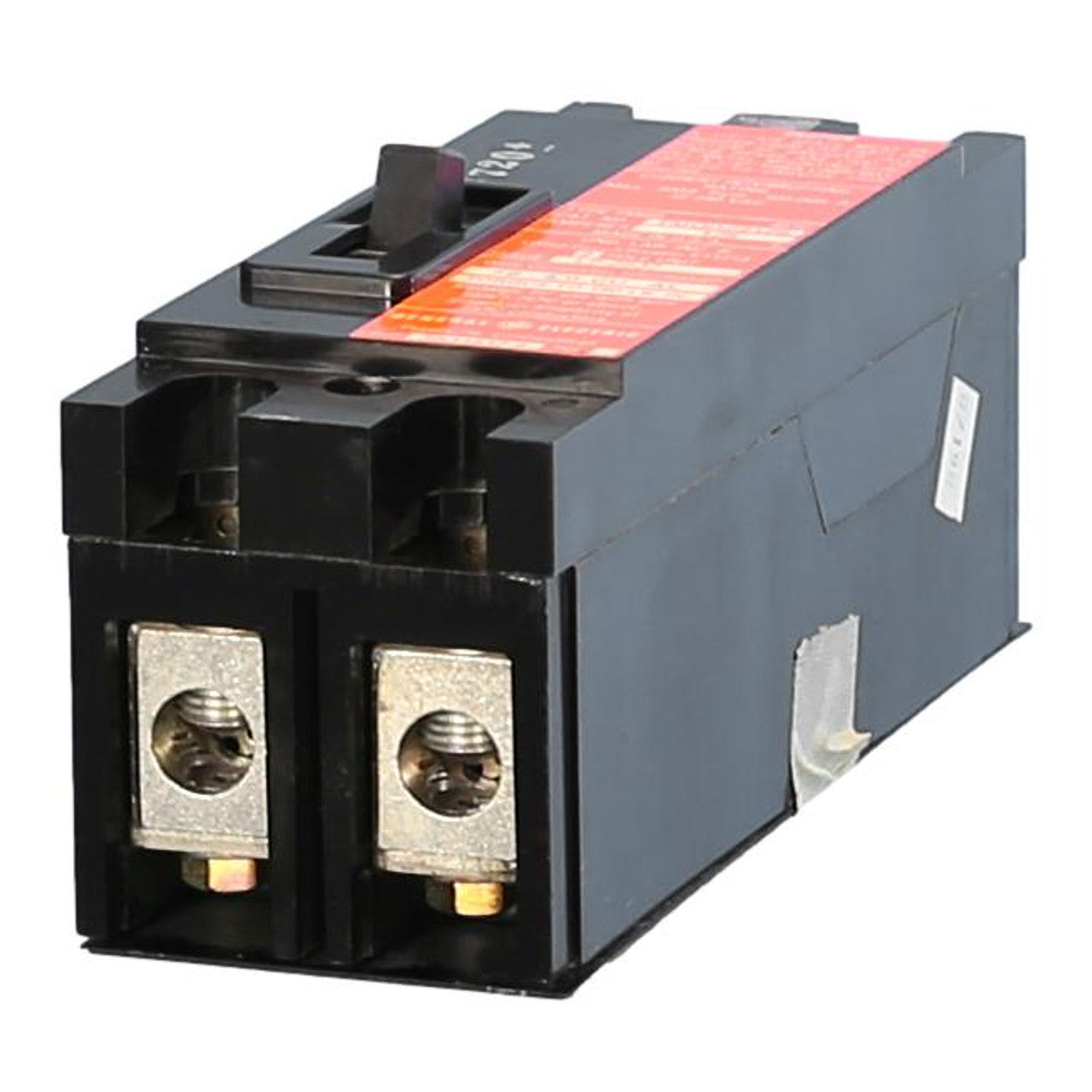

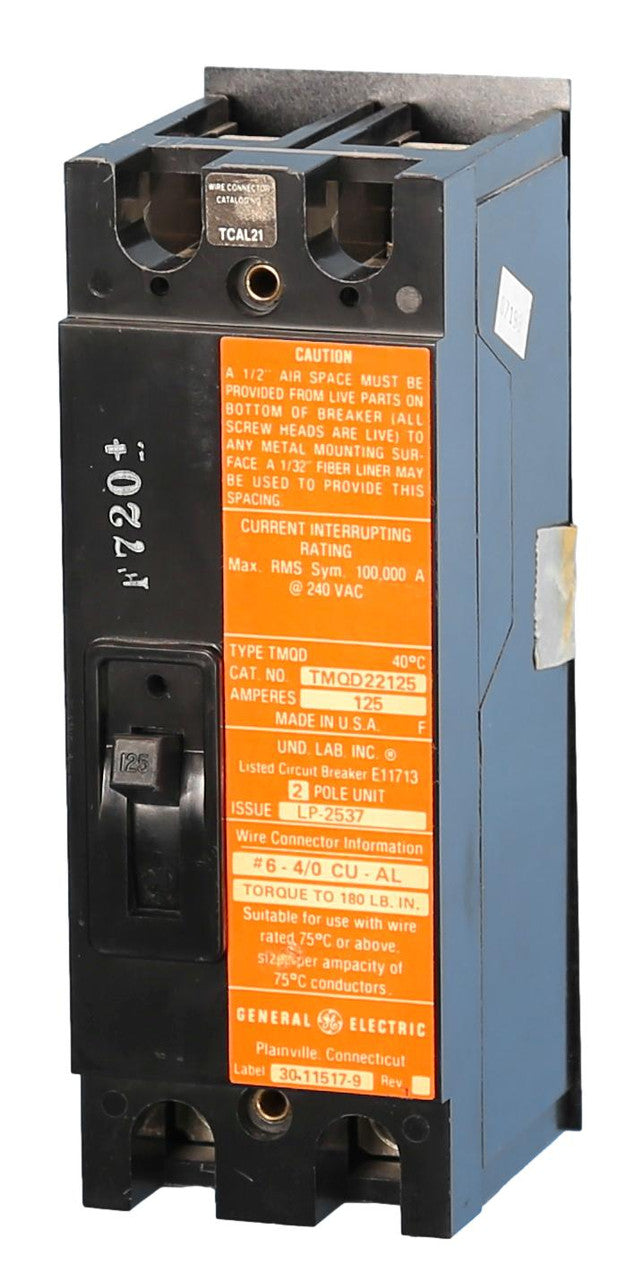

Description
The General Electric TMQD22125 is a 2-pole molded case circuit breaker designed to provide dependable protection for 240VAC electrical distribution systems. This breaker offers stable thermal-magnetic performance with a 125-amp rating suitable for both branch and main applications. The TMQD22125 is built for installations requiring high interrupting capacity and secure bolt-on connectivity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Protection |
| Part Number |
TMQD22125 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
TMQD |
| Amperage |
125A |
| Voltage Rating |
240VAC |
| Poles |
2 |
| Phase |
1 |
| Interrupting Rating |
100kAIC at 240V |
| Protection Type |
Thermal Magnetic |
| Functions |
Long-Time and Instantaneous Trip |
| Mounting Type |
Bolt-On |
| Connection Type |
Bolt-On |
| Terminal Type |
Load-Side Lug |
| Frame Type |
TMQD |
| Temperature Rating |
40°C |
| Contactor Type |
Magnetic |
| Weight |
3 Ibs |
Information About TMQD22125
The TMQD22125 is part of GE’s TMQD series, engineered for high-demand commercial and light-industrial distribution panels. It features a durable molded case design and bolt-on mounting for secure installation and consistent contact integrity. This breaker supports long-time and instantaneous trip functions, making it suitable for overcurrent and short-circuit protection in single-phase systems. Its high 100kAIC interrupting rating at 240V provides expanded compatibility with environments requiring elevated fault-current tolerance.
Key Features:
- 125A Current Rating: Supports medium-capacity circuits in commercial and industrial systems.
- High Interrupting Capacity: Rated at 100kAIC at 240V for demanding fault-current conditions.
- Thermal-Magnetic Protection: Provides long-time and instantaneous trip functions for accurate overload response.
- Durable Molded Case: Ensures reliable operation and prolonged mechanical life.
- Bolt-On Connection: Offers secure panel integration and stable electrical contact.
- Load-Side Lug Terminal: Supports straightforward and dependable conductor termination.
- TMQD Frame Design: Matches GE distribution equipment for consistent performance and compatibility.
The TMQD22125 delivers the reliability and precision required for safe and stable power distribution in 240VAC systems.
