Description

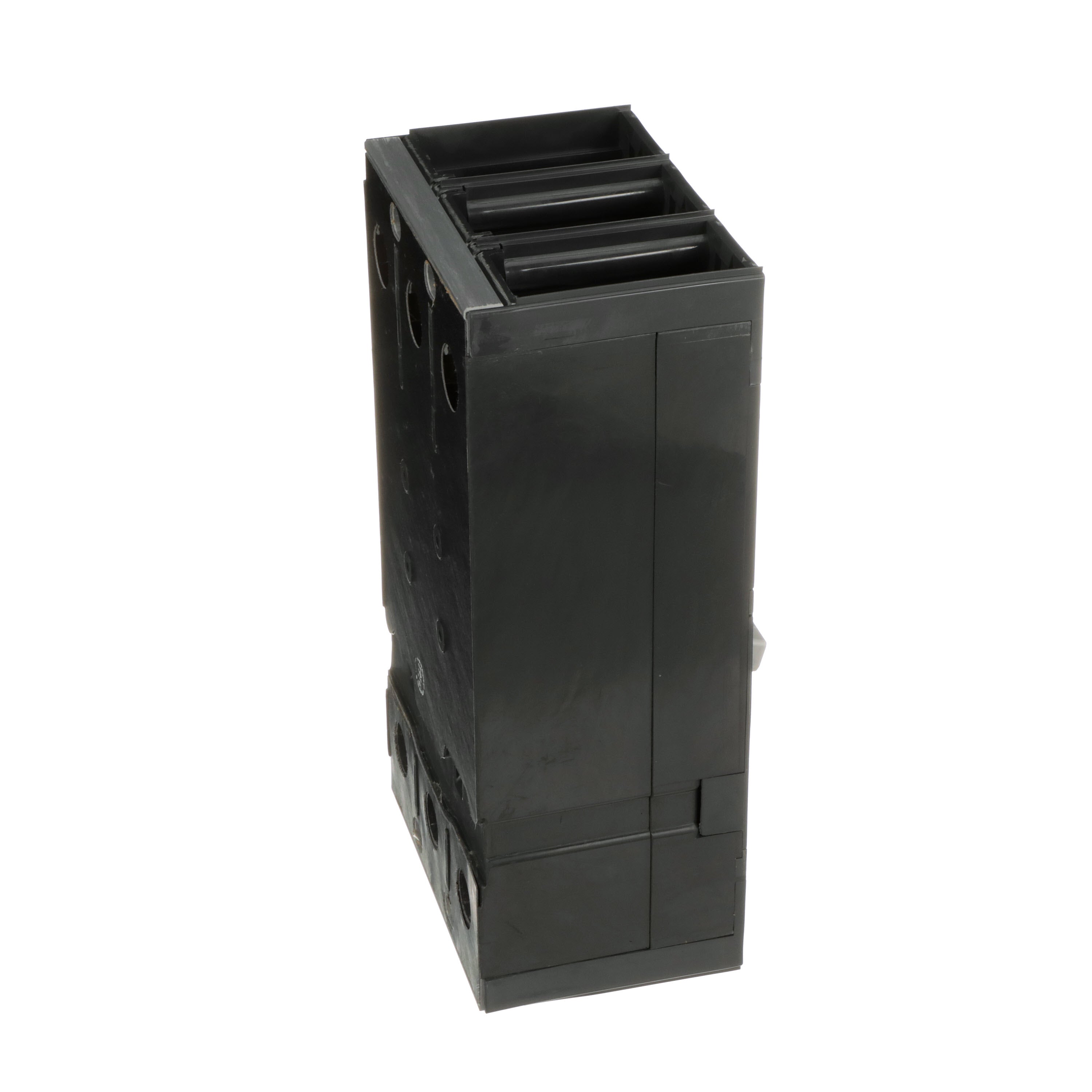

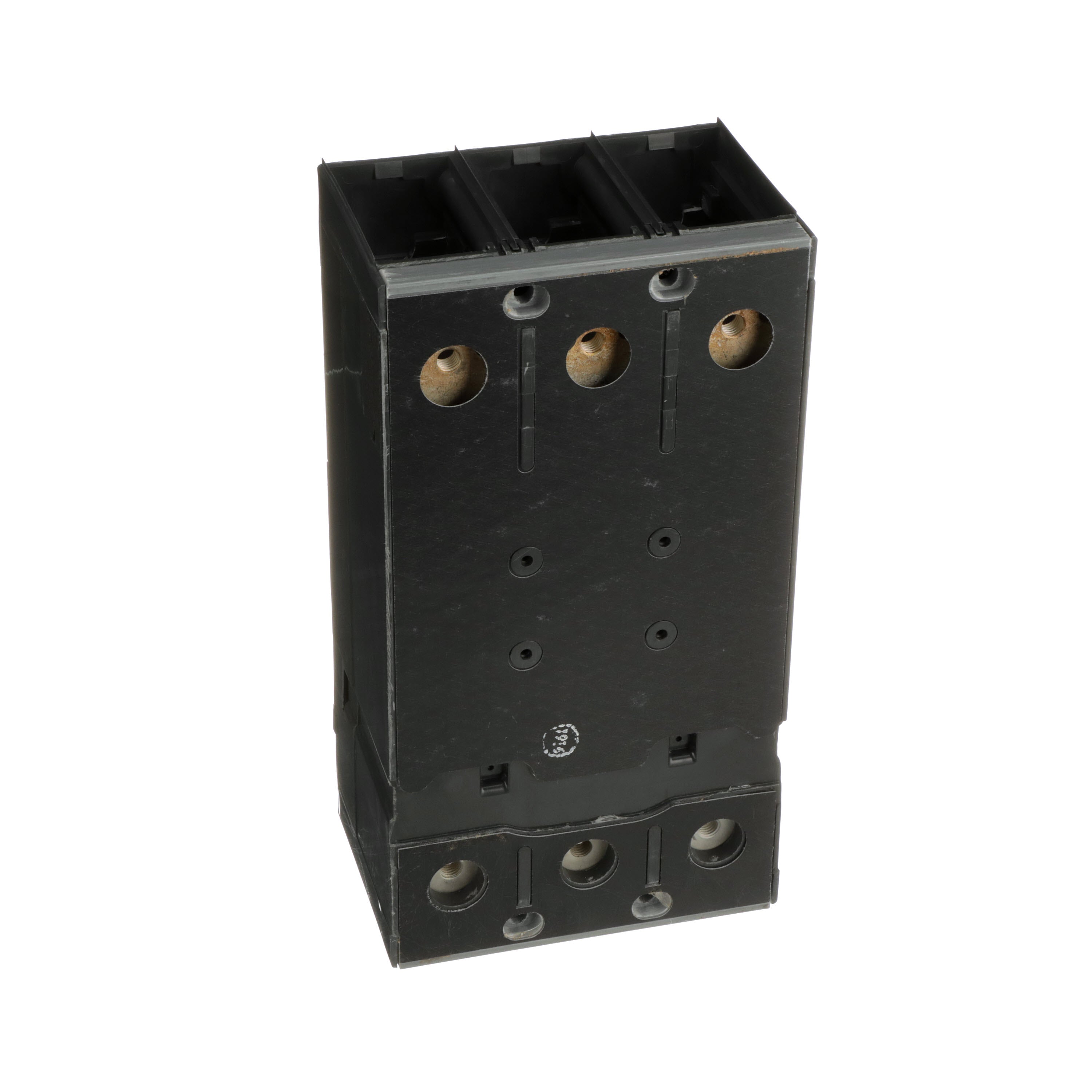

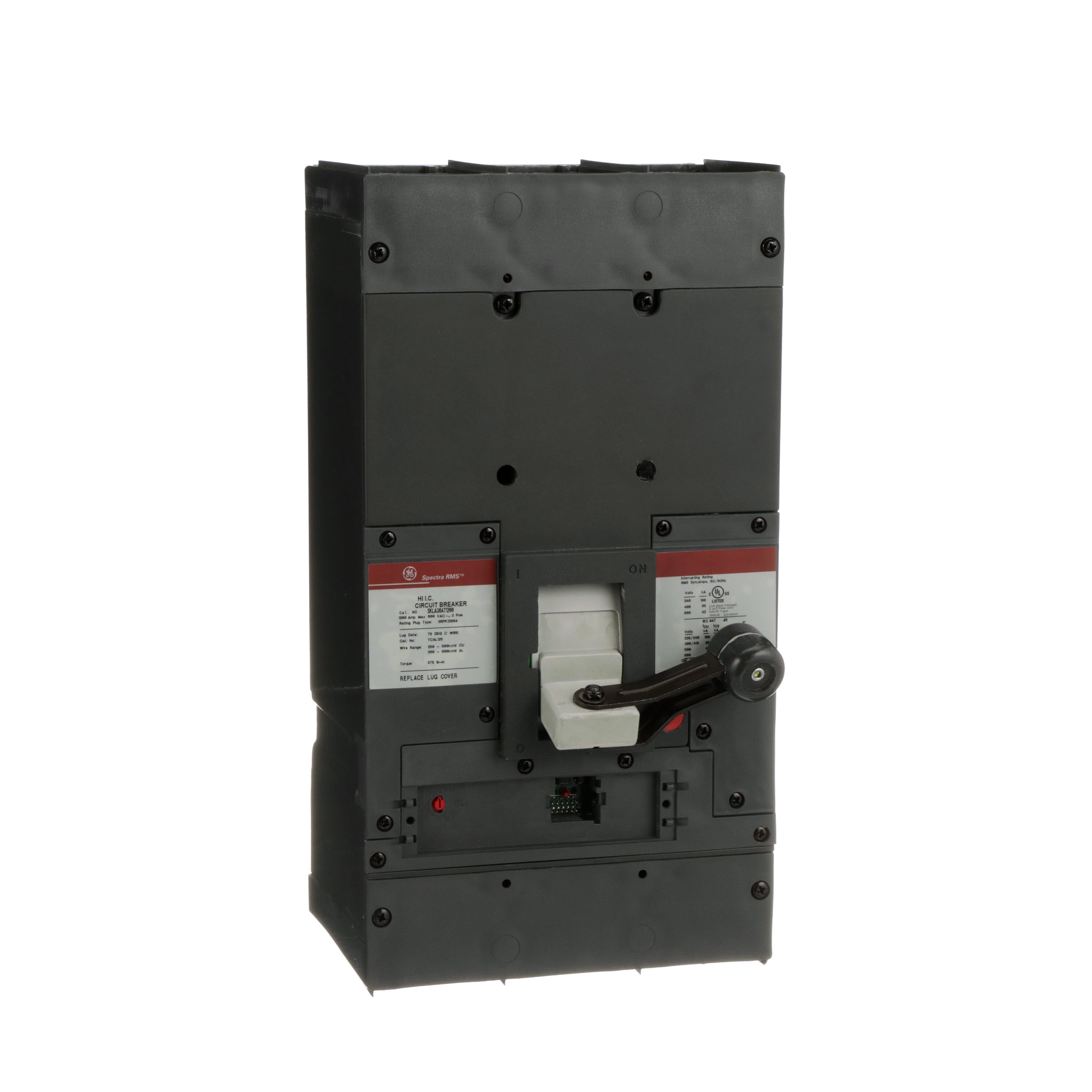

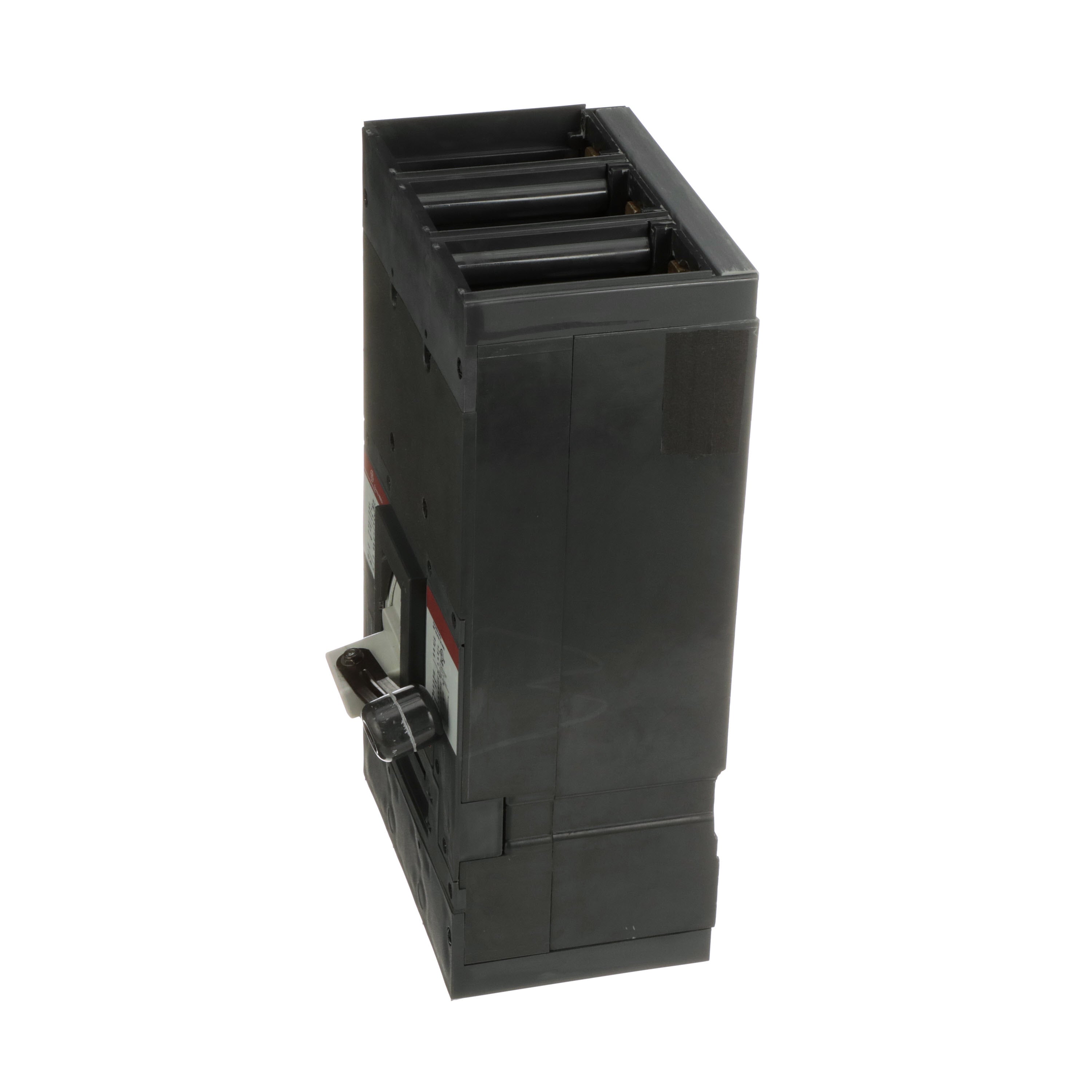

The General Electric SKLA36AT1200 is a high-capacity molded case circuit breaker designed for reliable protection of electrical systems in industrial and commercial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Breaker |
| Part Number |
SKLA36AT1200 |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
Spectra Series |
| Amperage Rating |
1200 A |
| Voltage Rating |
600 VAC |
| Voltage Type |
AC |
| Poles |
3 |
| Phase |
3 Phase |
| Frame Type |
SKLA |
| Interrupting Capacity |
65 kAIC @ 480 V |
| Trip Functions |
Long Time, Short Time, Instantaneous |
| Trip Unit Type |
Solid State, Interchangeable RMS Trip |
| Termination |
Bolt-On |
| Special Features |
High Interrupting Capacity, Suitable for Reverse Fed Applications |
| Weight |
32.00 lbs |
Information About SKLA36AT1200
The General Electric SKLA36AT1200 is a heavy-duty molded case circuit breaker from the Spectra Series, engineered for high-capacity electrical protection in industrial and commercial applications. Rated at 1200 A with a voltage capacity of 600 VAC, it features a solid-state trip unit with long time, short time, and instantaneous trip functions for precise overcurrent and short-circuit protection. With a 65 kAIC interrupting capacity at 480 V, it ensures safe and reliable performance in demanding power distribution systems. Its bolt-on termination design, interchangeable RMS trip unit, and suitability for reverse-fed applications provide flexibility for a wide range of installations.
Key Features:
- High Current Capacity: Rated for 1200 A at 600 VAC, suitable for large-scale electrical systems.
- Robust Protection: 65 kAIC interrupting capacity at 480 V for enhanced fault handling.
- Advanced Trip Functions: Solid-state trip unit with long time, short time, and instantaneous settings.
- Interchangeable RMS Trip: Allows for easy replacement or adjustment to meet system requirements.
- Flexible Installation: Bolt-on termination for secure mounting and compatibility with Spectra Series panels.
- Reverse Feed Capability: Approved for reverse-fed applications to increase wiring flexibility.
- Durable Design: Built for demanding industrial and commercial environments.
The SKLA36AT1200 delivers high-performance circuit protection with advanced features and adaptability, making it an excellent choice for critical power distribution needs.
