Description

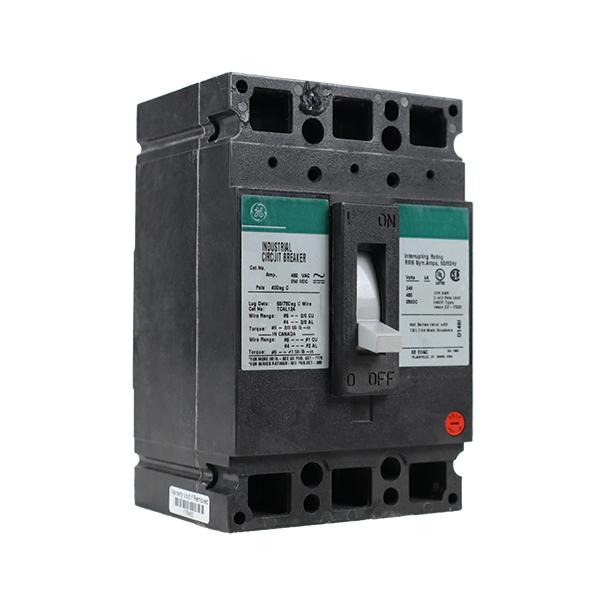

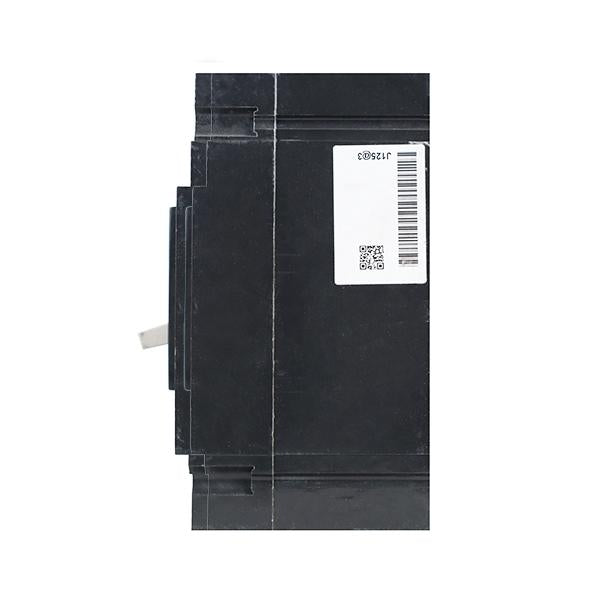

The General Electric THED136150 is a 3-pole molded case circuit breaker rated for 150 amps and up to 600 VAC. It provides dependable overload and short-circuit protection, making it suitable for industrial, commercial, and utility distribution systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
THED136150 |
| Subcategory |
Circuit Breaker |
| Series |
THED |
| Breaker Type |
Molded Case Circuit Breaker (MCCB) |
| Poles |
3-pole |
| Voltage Rating |
600 V AC maximum |
| Current Rating |
150 A |
| Frequency |
50/60 Hz |
| Trip Type |
Thermal-magnetic |
| Interrupting Rating |
High fault current withstand capability (series dependent) |
| Frame Type |
THED frame |
| Mounting Style |
Panelboard or switchboard installation |
| Protection Features |
Overload and short-circuit protection |
| Standards |
UL Listed, ANSI/IEEE compliant |
| Application Use |
Industrial, commercial, and utility distribution |
| Operating Temperature |
-20 °C to +40 °C |
| Weight |
Approx. 5.5 kg |
Information About THED136150
The THED136150 is part of GE’s THED Series of molded case circuit breakers, designed for safe and efficient power distribution. It features a compact molded housing with a thermal-magnetic trip unit for reliable fault interruption. Built for three-phase applications, the breaker is UL-listed and meets ANSI/IEEE standards for industrial performance. Its robust design makes it ideal for use in panelboards, switchboards, and motor control centers requiring medium-duty circuit protection.
Key Features:
- THED Series: GE molded case breaker designed for commercial and industrial use.
- 3-Pole Configuration: Protects three-phase power distribution systems.
- 150A Rating: Provides reliable protection for medium-load circuits.
- 600 VAC Maximum Voltage: Suitable for a wide range of distribution systems.
- Thermal-Magnetic Trip: Ensures precise overload and short-circuit protection.
- Durable Molded Case: Compact and rugged housing for harsh environments.
- UL Listed: Meets industry safety and compliance standards.
- Versatile Applications: Commonly used in panelboards, switchboards, and MCCs.
The THED136150 delivers the reliability and protection required for safe and efficient three-phase electrical distribution.
