Description

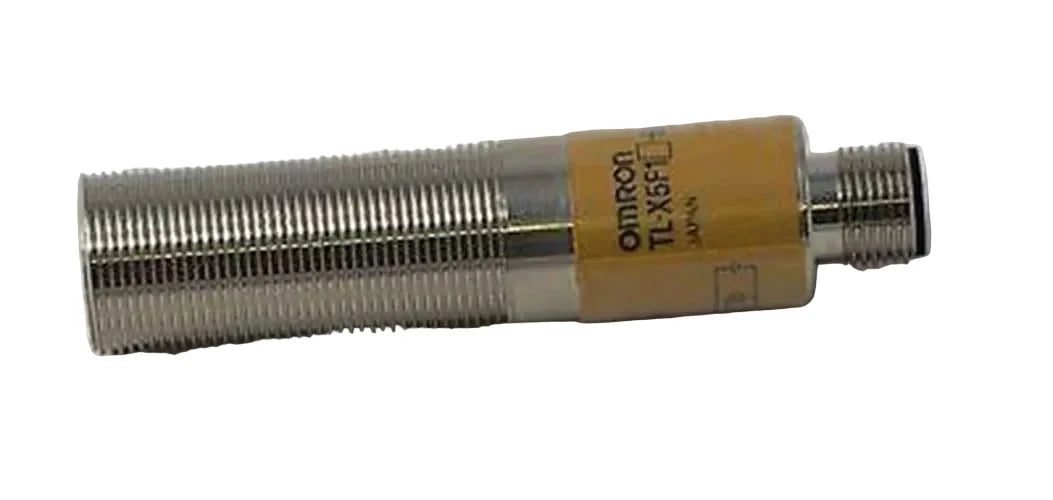

The Omron TL-X5F1-52 is an inductive proximity sensor designed for non-contact detection of metallic objects. It operates on a 12–24 VDC power supply and provides a PNP normally open output. With a 5 mm sensing distance and M12 connector interface, it is suited for industrial automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Sensors & Switches |
| Part Number |
TL-X5F1-52 |
| Subcategory |
Proximity Switch |
| Series |
TL |
| Sensing Method |
Inductive |
| Sensing Distance |
5 mm |
| Output Type |
PNP, Normally Open |
| Supply Voltage |
12 – 24 VDC |
| Maximum Load Current |
200 mA |
| Housing Size |
M18 Cylindrical |
| Mounting Type |
Shielded (Flush) |
| Connection Method |
M12 4-Pin Connector |
| Weight |
6.76 lbs |
Information About TL-X5F1-52
The TL-X5F1-52 is part of the Omron TL series of cylindrical inductive proximity sensors. It features a shielded M18 housing configuration for flush mounting and stable detection performance. The sensor provides a PNP normally open output rated up to 200 mA and connects via a 4-pin M12 connector. Designed for factory automation systems, it enables reliable position detection and object presence sensing in machinery and conveyor applications.
Key Features:
-
5 mm Sensing Distance: Detects metallic objects at short range.
-
Inductive Detection Method: Non-contact sensing for metal targets.
-
PNP Normally Open Output: 200 mA maximum load current.
-
12–24 VDC Operation: Compatible with standard industrial DC systems.
-
Shielded Construction: Supports flush mounting in metal surfaces.
-
M18 Cylindrical Housing: Standard industrial form factor.
-
M12 4-Pin Connector: Secure and standardized connection method.
-
Industrial Automation Use: Designed for machine position detection.
The TL-X5F1-52 delivers the reliability and precision required for inductive object detection in industrial automation systems.
