Description

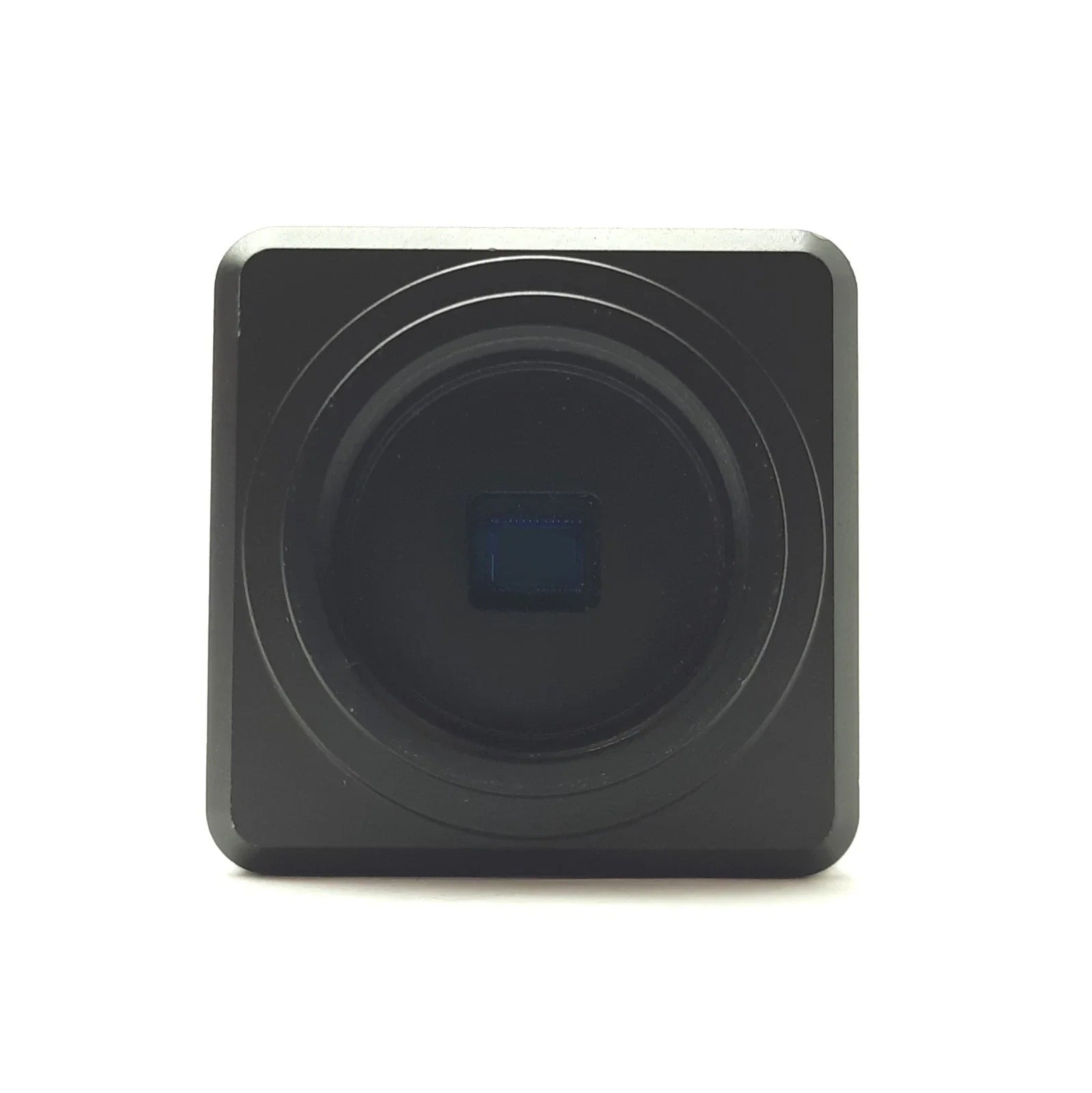

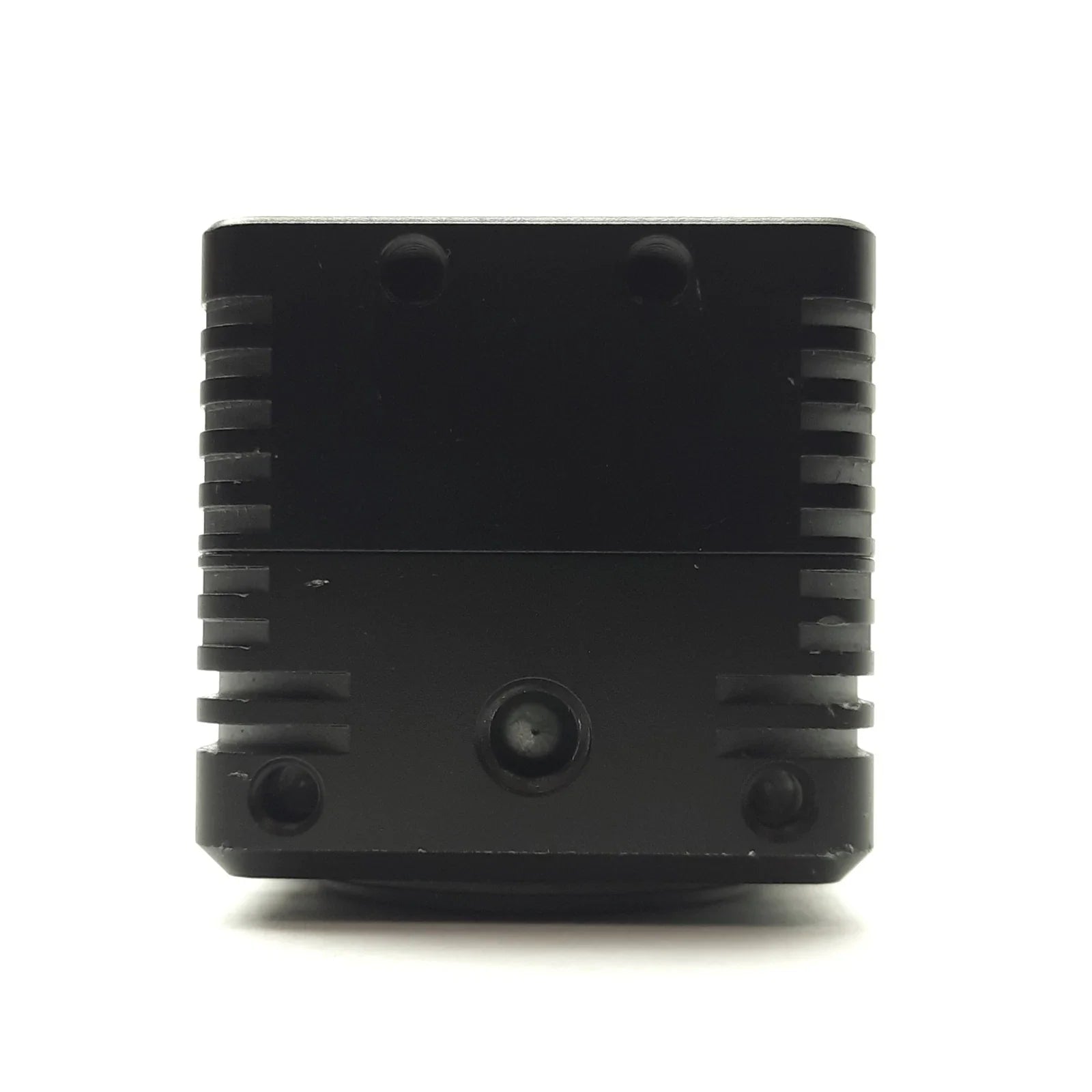

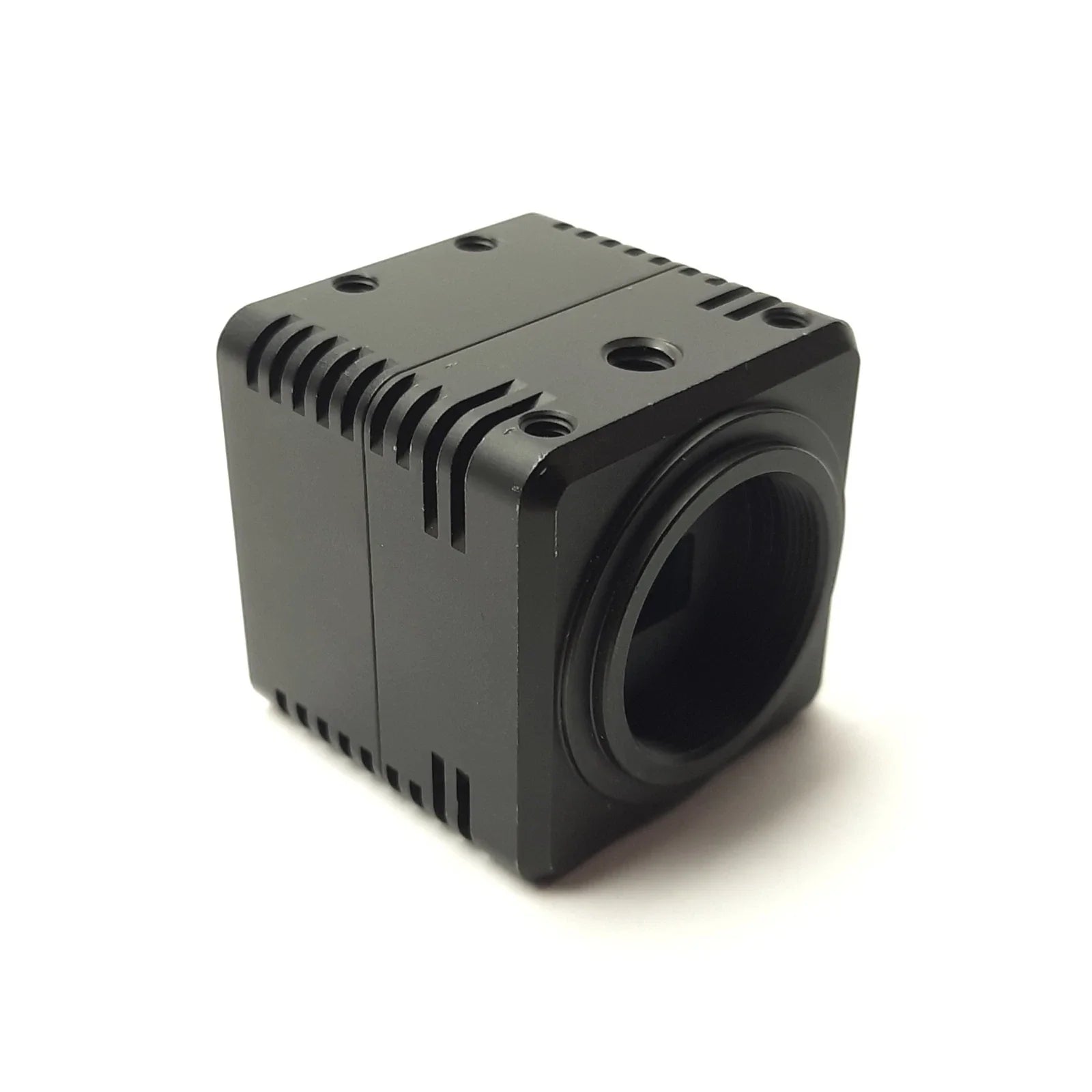

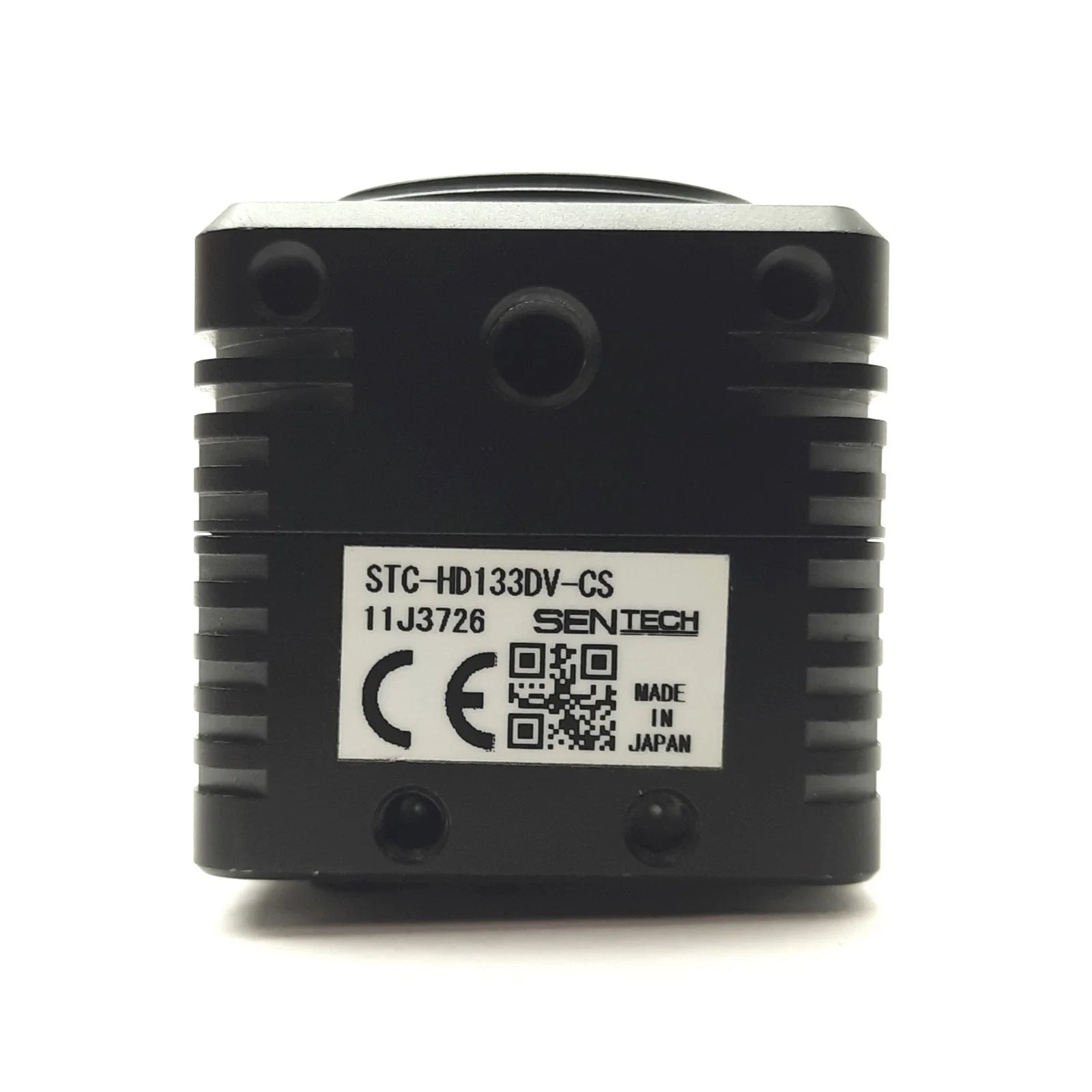

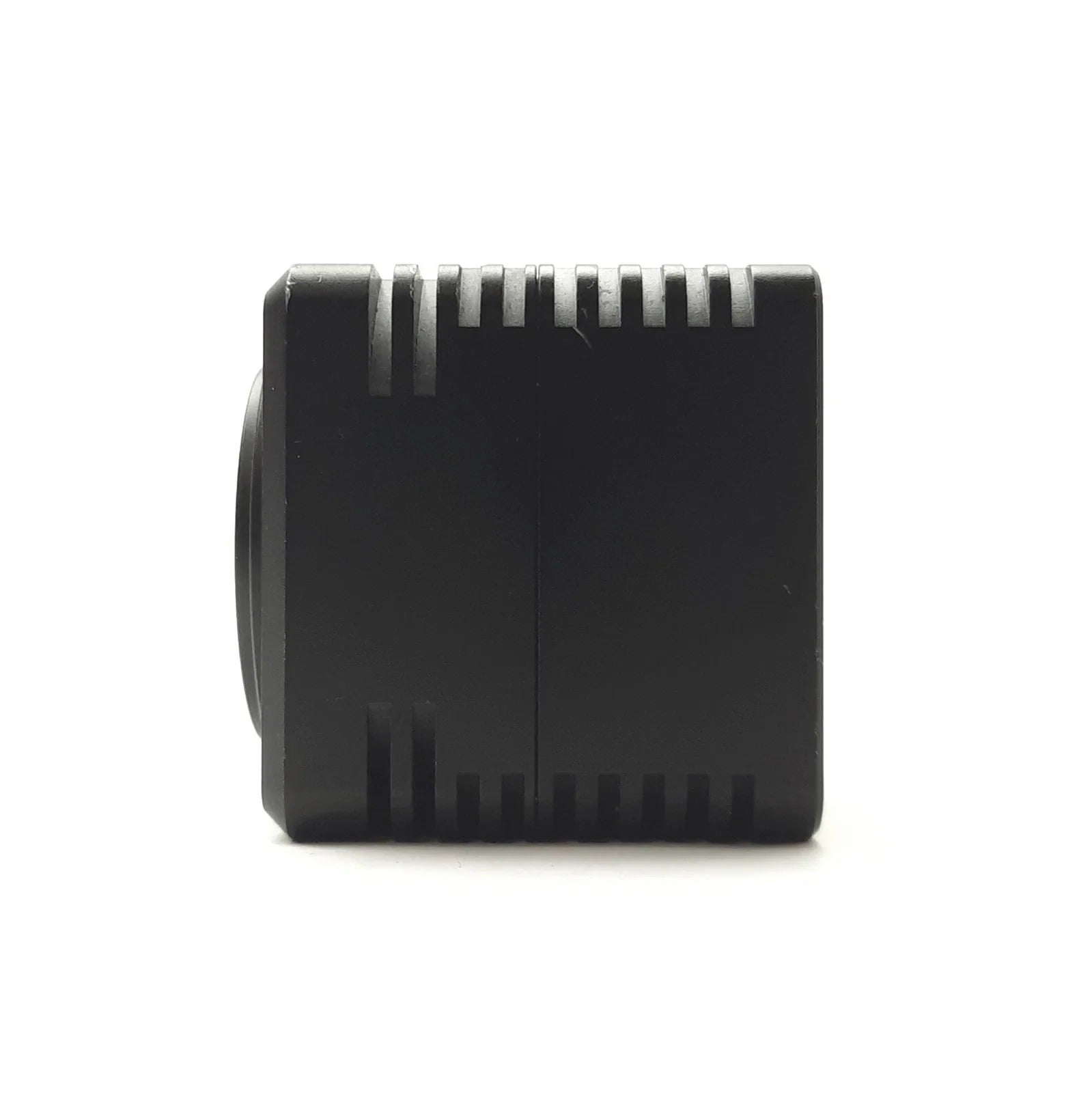

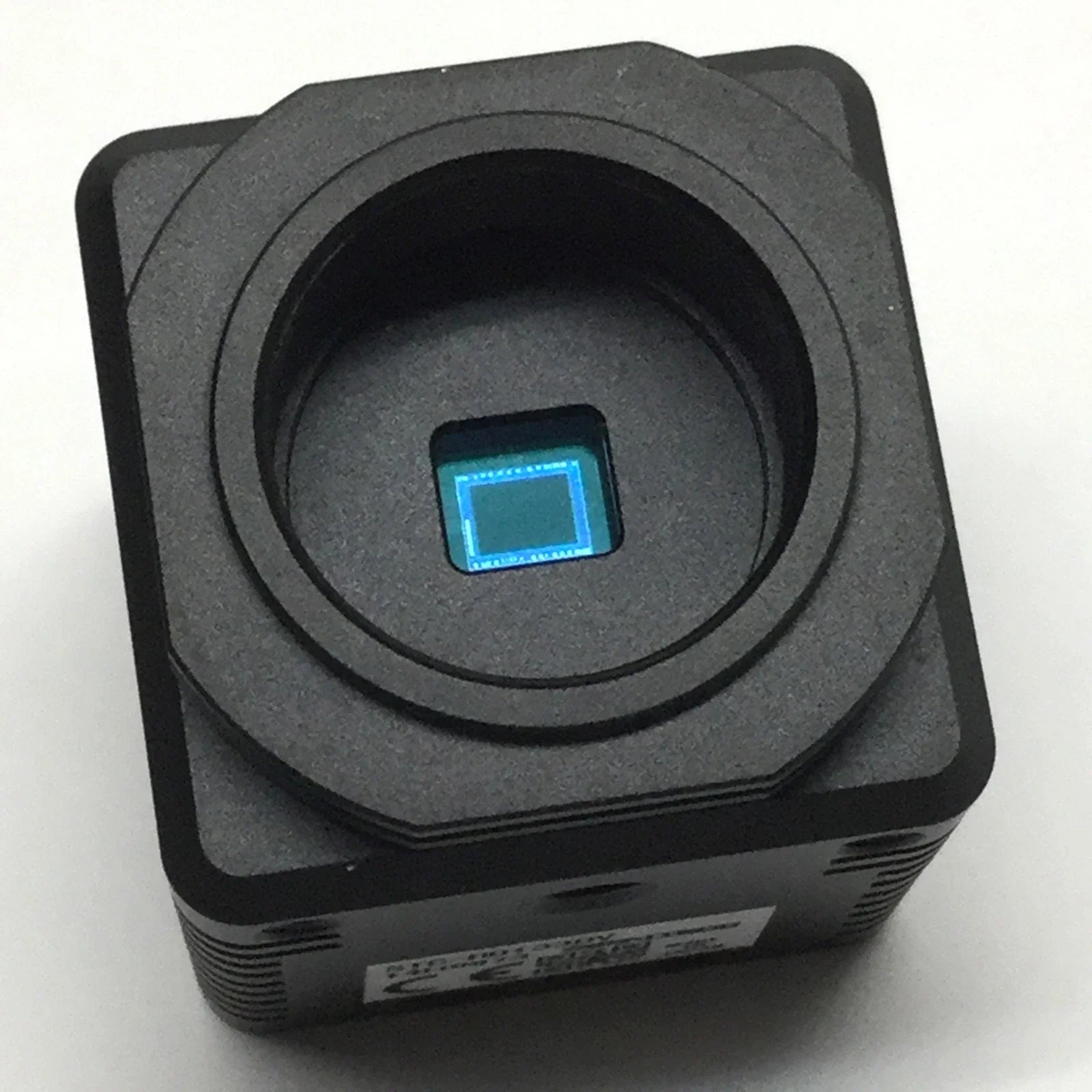

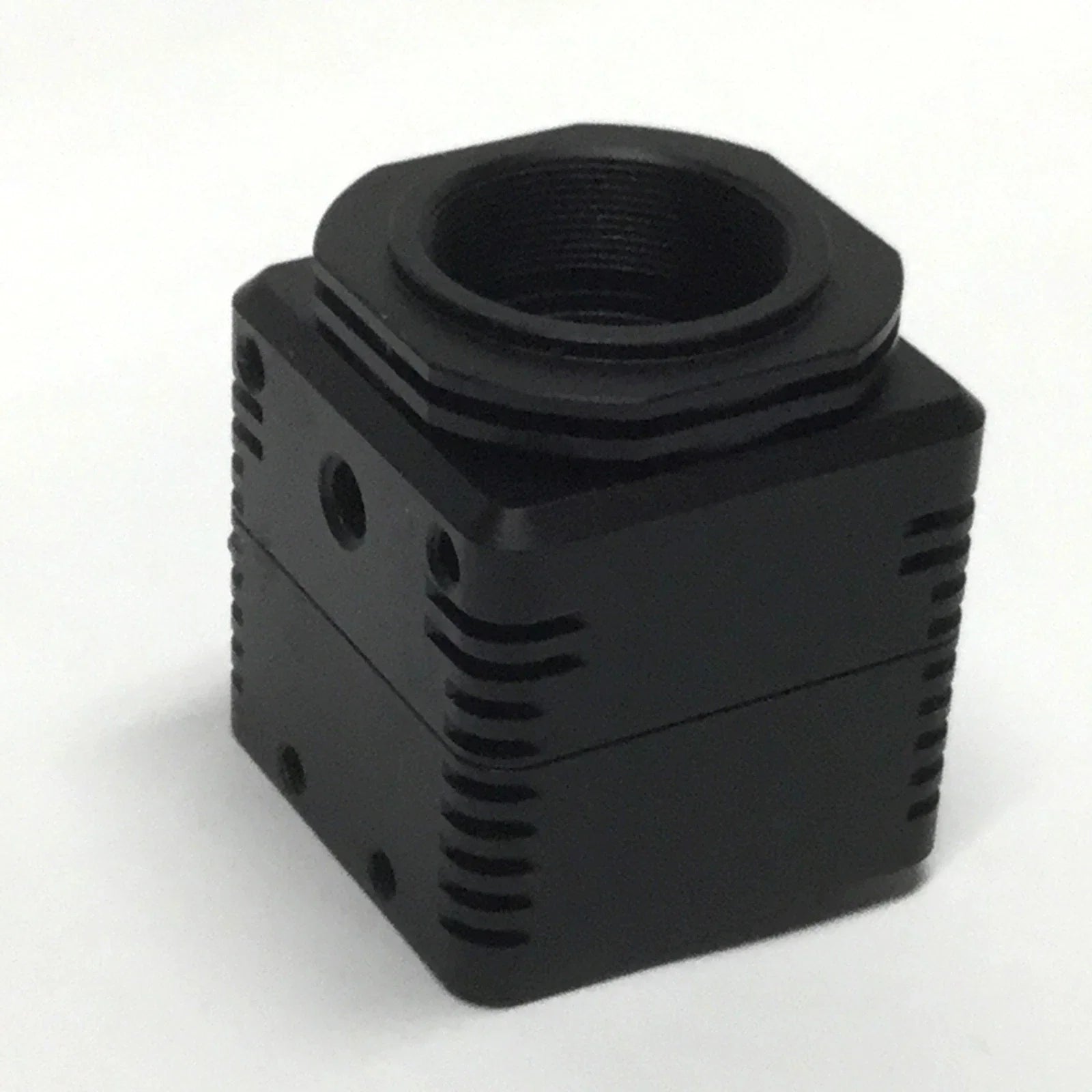

The Omron STC-HD133DV is a compact industrial machine vision camera designed for high-definition image capture and direct monitor output. It features a 1/3" CCD sensor and delivers 720p resolution at 60 frames per second via DVI/HDMI interface. This camera is used in inspection, monitoring, and automation systems requiring reliable real-time imaging.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Camera & Vision |
| Part Number |
STC-HD133DV |
| Subcategory |
CCD Camera |
| Device Type |
Machine Vision Camera |
| Sensor Type |
CCD (Sony ICX445AQA) |
| Sensor Size |
1/3" |
| Resolution |
1280 × 720 (HD 720p) |
| Frame Rate |
60 fps |
| Shutter Type |
Global shutter |
| Video Output |
DVI / HDMI |
| Lens Mount |
C-mount |
| Minimum Illumination |
5 Lux |
| Dimensions |
40 × 40 × 45.8 mm |
| Power Supply |
12 VDC |
| Operating Application |
Industrial imaging and inspection |
| Weight |
Approx. 0.65 kg |
Information About STC-HD133DV

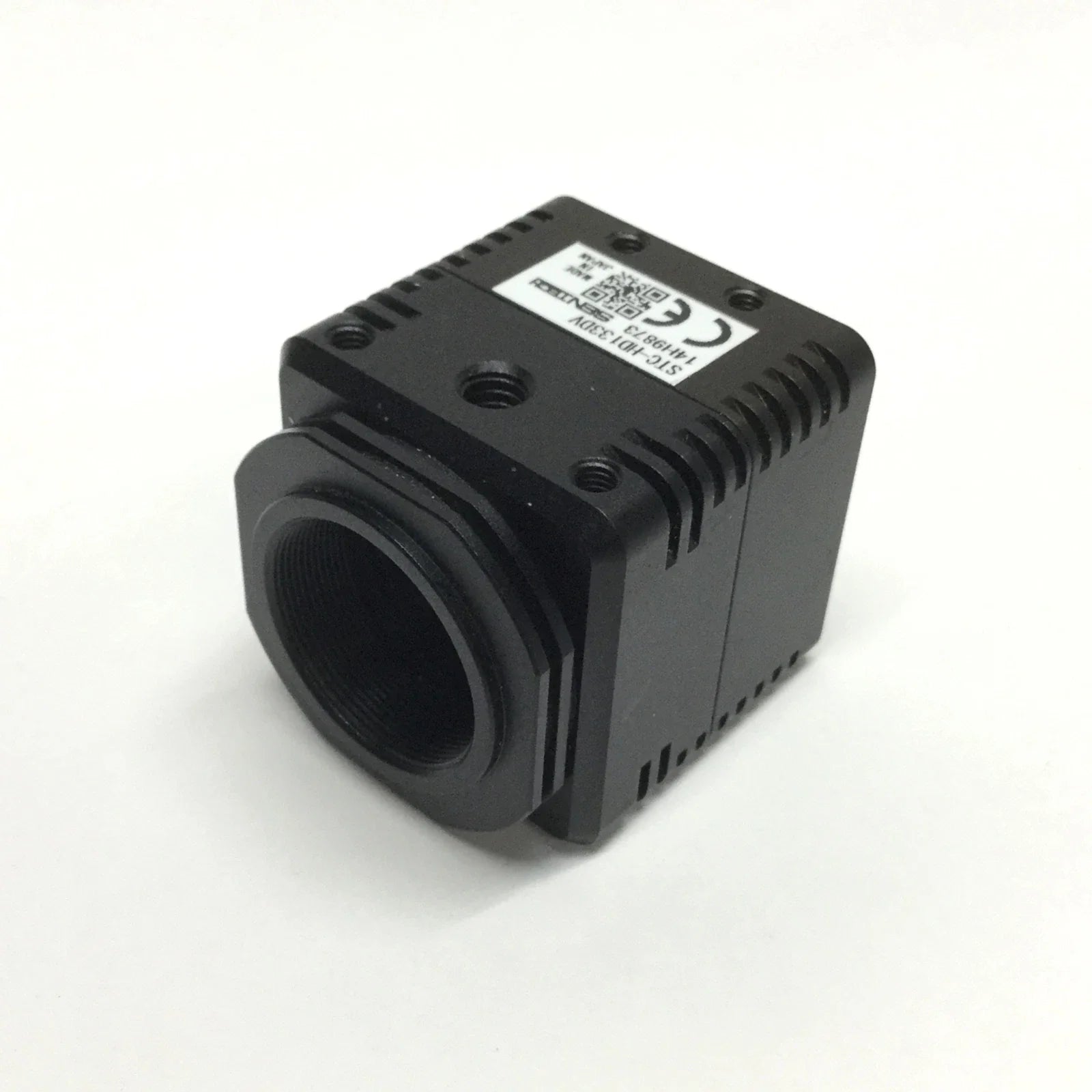

The STC-HD133DV is part of Omron’s Sentech series of industrial cameras, developed for machine vision and imaging applications. It utilizes a Sony ICX445AQA CCD sensor with global shutter technology to capture clear and distortion-free images. The unit supports direct video output via HDMI/DVI, eliminating the need for additional processing hardware. Its compact metal housing and C-mount compatibility make it suitable for integration into inspection systems, production lines, and monitoring setups.
Key Features:
- High-definition imaging: Provides 720p resolution at 60 fps for clear image capture
- CCD sensor technology: Uses Sony ICX445AQA for stable and accurate imaging
- Global shutter: Eliminates motion distortion in dynamic applications

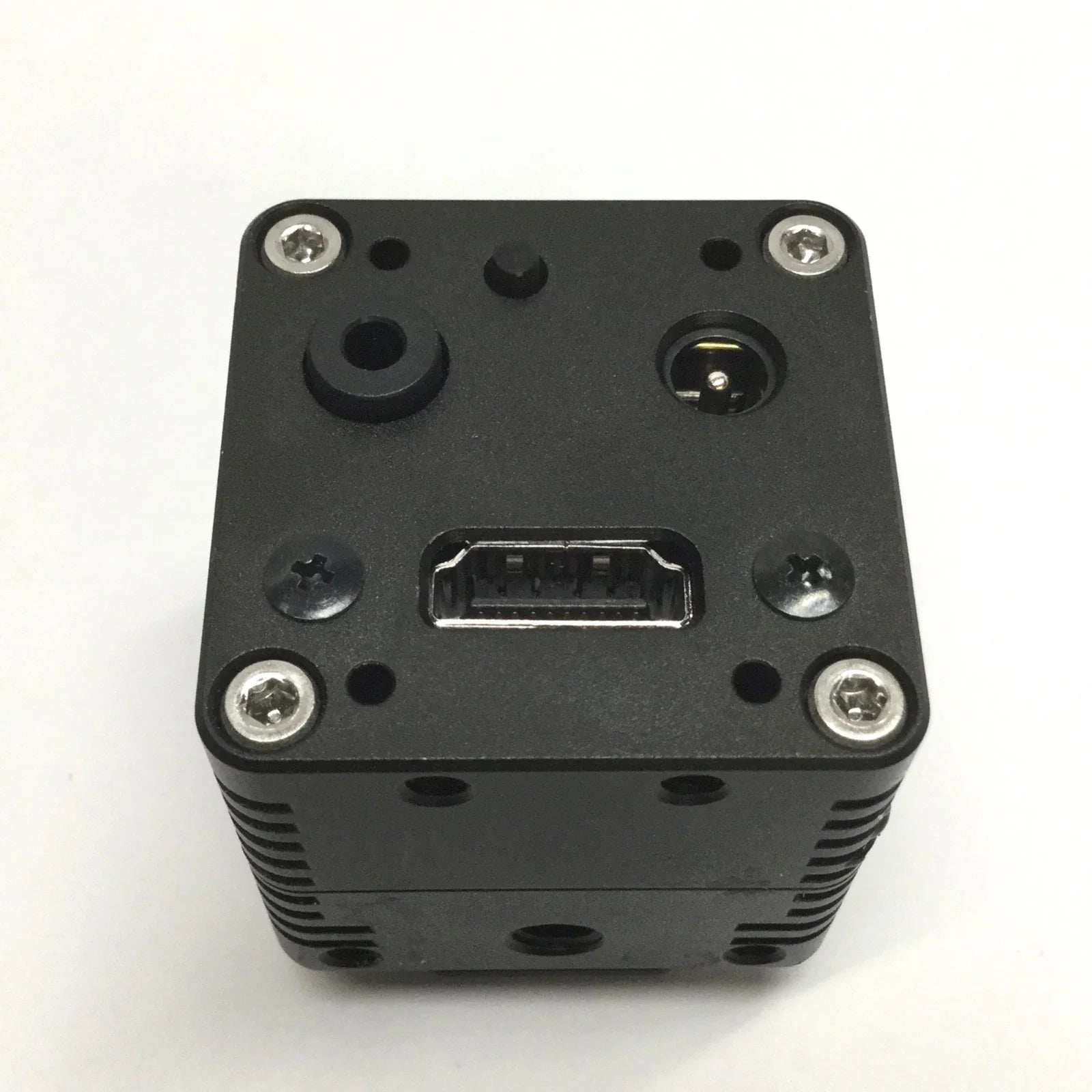

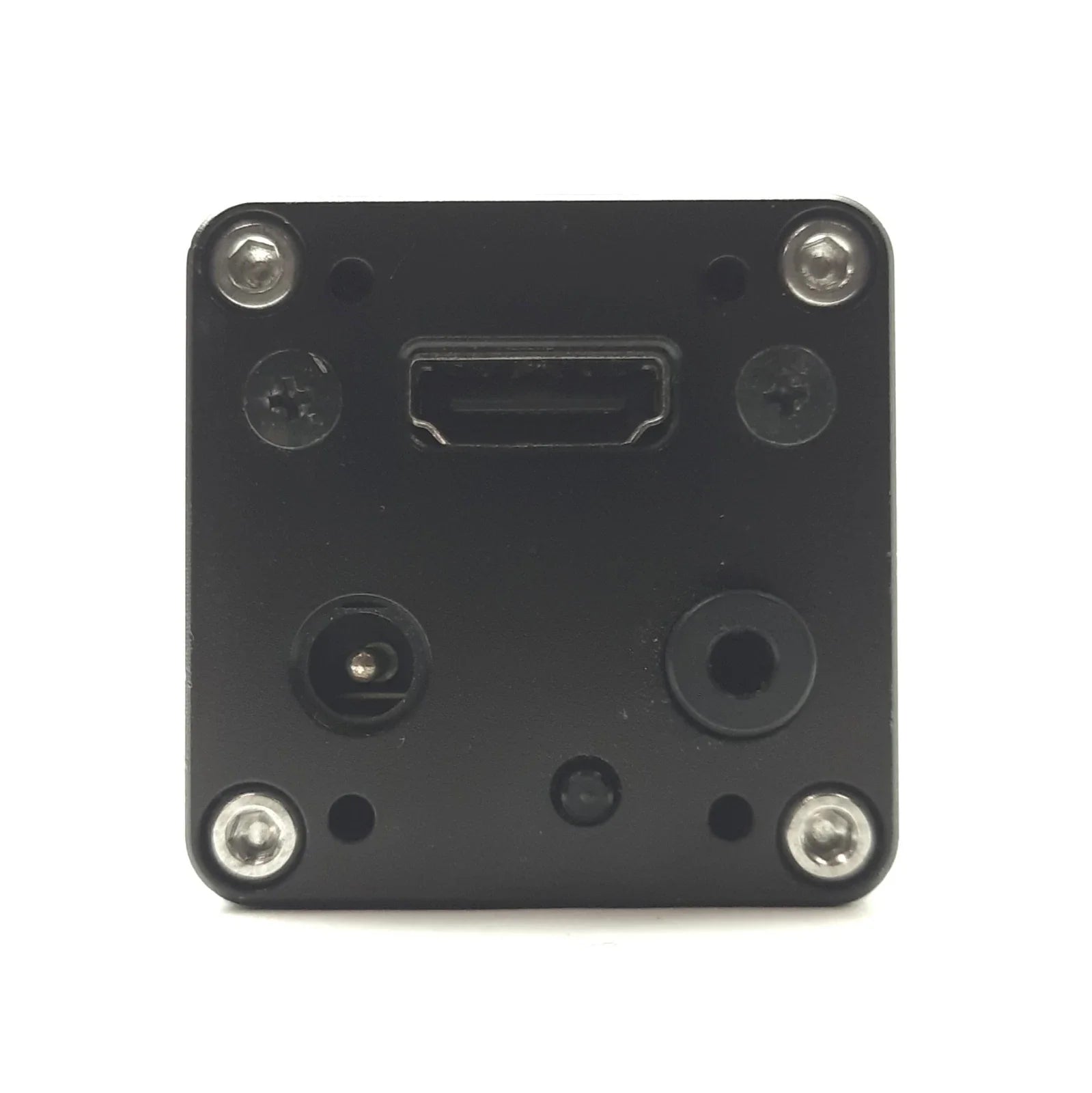

- Direct HDMI/DVI output: Enables connection to monitors without additional hardware
- Compact design: Small form factor for easy integration into systems
- C-mount lens compatibility: Supports a wide range of industrial lenses
- Programmable DSP profiles: Allows customization of imaging parameters
- Industrial application ready: Suitable for inspection, surveillance, and automation
The STC-HD133DV delivers the reliability and precision required for machine vision and industrial imaging applications.
