Description

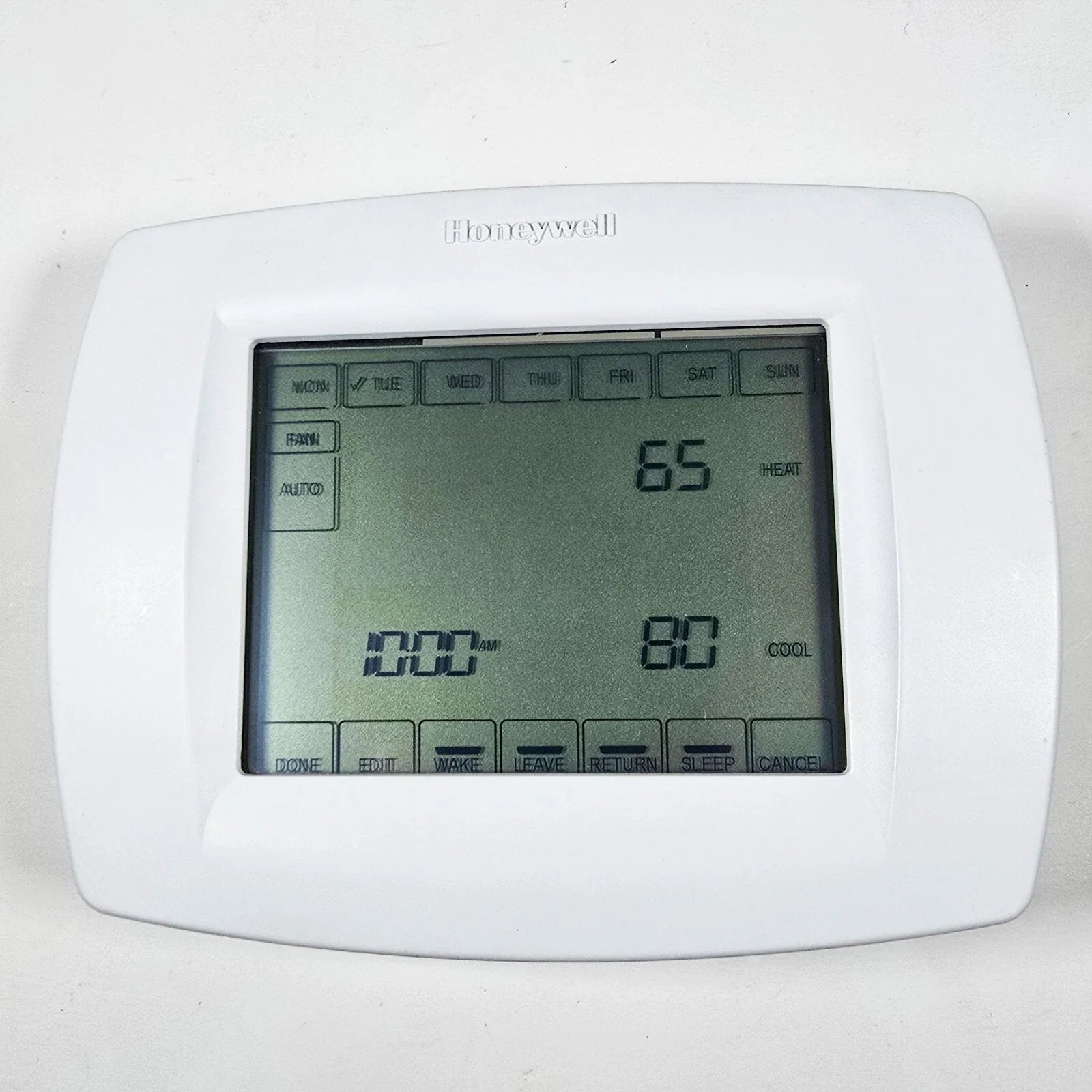

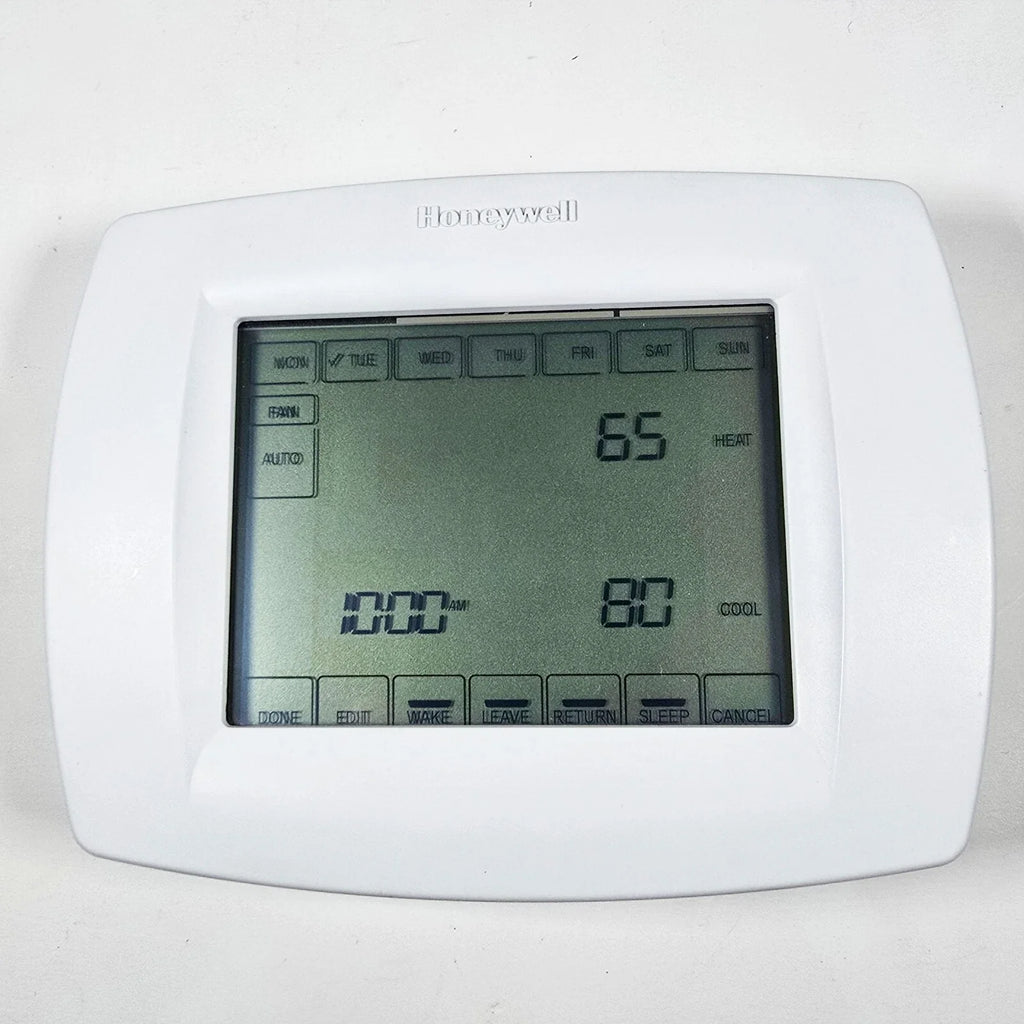

The Honeywell TH8320U1008 is a universal, touchscreen programmable thermostat designed for multi-stage heating and cooling systems. It features an intuitive interface, large LCD display, and 7-day programmability for precise comfort control in residential or light commercial HVAC applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
TH8320U1008 |
| Subcategory |
Thermostat |
| Series |
VisionPRO 8000 |
| Type |
Universal Programmable Thermostat |
| Voltage |
20–30 VAC (low voltage), 750mV |
| Frequency |
50/60 Hz |
| Power Source |

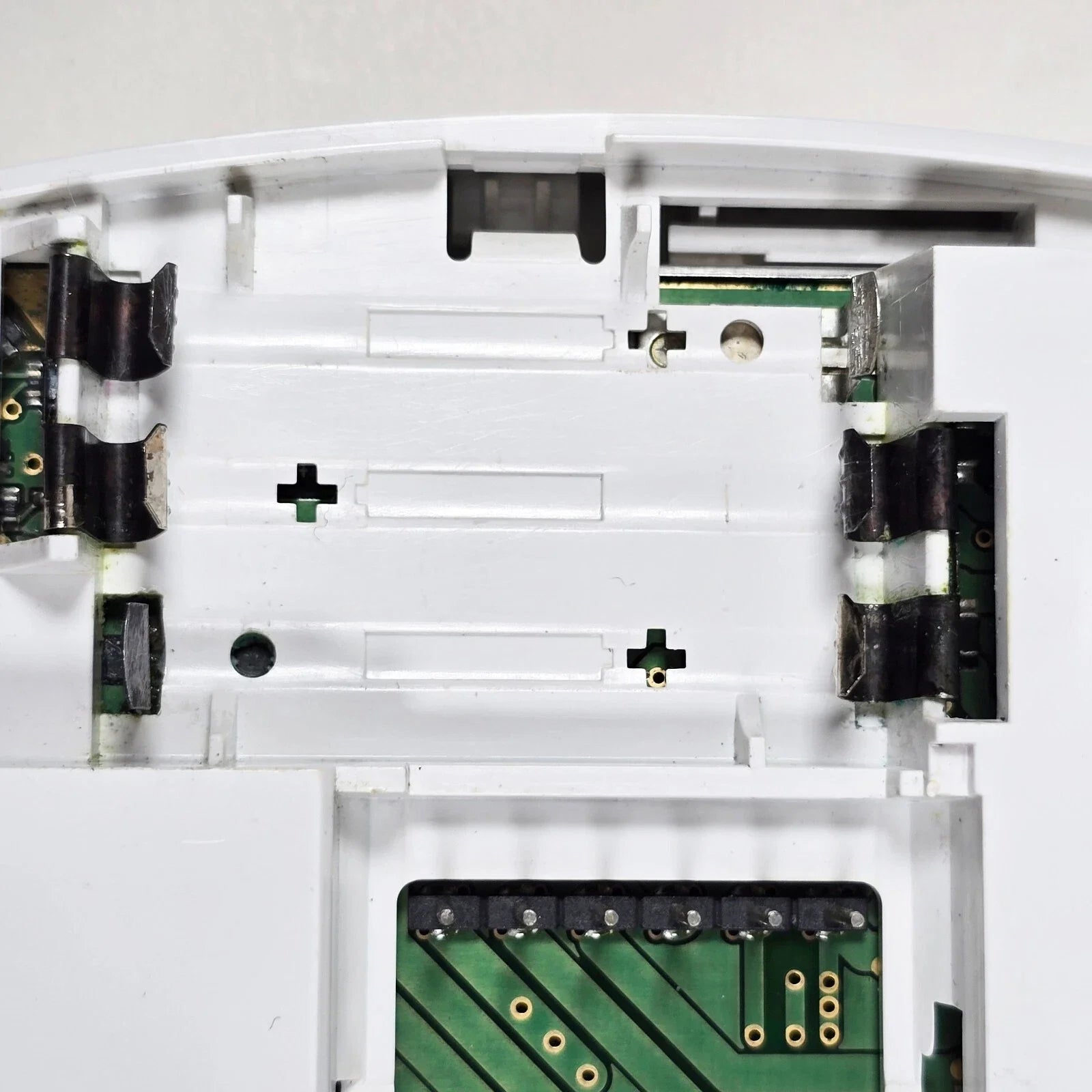

Battery (3 AAA) or Hardwired |
| Display |
Digital LCD touchscreen with backlight |
| Heat/Cool Stages |
3 Heat / 2 Cool |
| Programmability |
7-Day |
| Mounting Type |
Wall mount (horizontal) |
| Temperature Range |
40°F – 99°F (4°C – 37°C) |
| Max Temperature Differential |
1°F |
| Operating Humidity |
5–90% RH, non-condensing |
| Wireless Capability |
No |
| Humidity Control |
No |
| Changeover |
Auto / Manual |
| Dimensions (H x W x D) |
4.56" x 6" x 1.25" (11.6 x 15.2 x 3.2 cm) |
| Certifications |
Energy-Saving Thermostat compliant |
| Weight |
1.00 lbs |
Information About TH8320U1008
The TH8320U1008 is part of Honeywell's VisionPRO 8000 Series, offering advanced temperature control for systems with up to 3 stages of heating and 2 stages of cooling. This thermostat supports gas, electric, oil, and heat pump systems, including dual-fuel configurations. It features a backlit digital touchscreen, armchair programming (removable from wall), and customizable scheduling for different days of the week. With auto-changeover, filter change reminders, and optional sensor integration, the device ensures both comfort and energy efficiency in a compact, modern wall-mounted design.
Key Features:
- Touchscreen Interface: Intuitive digital display for effortless control without confusing buttons.
- 7-Day Programmability: Create custom temperature schedules for each day of the week.
- Multi-Stage Compatibility: Supports 3 Heat / 2 Cool including dual fuel HVAC systems.
- Dual Power Options: Operates on batteries or hardwired 24V power source.
- Change Reminders: Alerts for filter, battery, humidifier pad, and UV lamp servicing.
- Armchair Programming: Thermostat can be removed from wall for easier setup.
- Auto Changeover: Automatically switches between heating and cooling as needed.
- Large Backlit Display: Shows current temperature, setpoint, and time clearly in all lighting conditions.
- Manual Override & Hold Options: Temporarily bypass schedules as needed.
- Sensor Integration: Compatible with optional indoor or outdoor remote sensors.
The TH8320U1008 delivers intelligent scheduling, universal compatibility, and precise comfort management for demanding climate control applications.
